Mitutoyo SKU: 575-123
List price: €240.00 Offer price: €168.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Mitutoyo Digimatic Cable, Flat Straight Type 905338
Part number: 905338  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905409
Part number: 905409  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable F Flat Straight Type 02AZD790F
Part number: 02AZD790F  → View product
U-WAVE Connection Cable F, Footswitch Flat Straight Type 02AZE140F
Part number: 02AZE140F  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380C
Part number: 06AFM380C  → View product
Mitutoyo 21JZA295 500mm spindle lifting cable
Part number: 21JZA295  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 21BZB005 Carbide Inch 4 x 48UNF Contact Element Ball Point 1/4" Length Ø.118"
Part number: 21BZB005  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View productCurrently unavailable

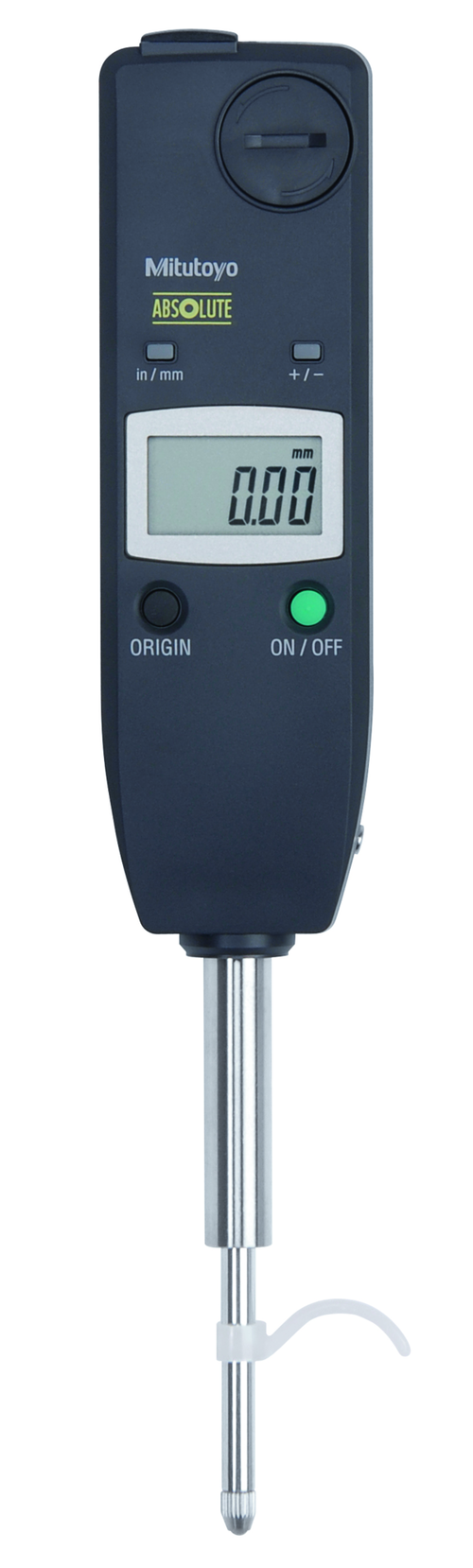

An economical, slim-style Mitutoyo digital indicator with a long battery life suited to installation in measuring jigs. ABSOLUTE System scale for error free, high-speed measurement. SPC data output.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
In a box with SR44 battery and spindle lifting handle 137693
Range:
1"/25.4 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
≤1.8 N
Protection:
IP42
Type:
ASME/ANSI/AGD Standard
Measuring force:
≤ 1,5 N
Mass:
140 g
Display:
LCD, character height 8.5 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, sensor error, ABS data composition error

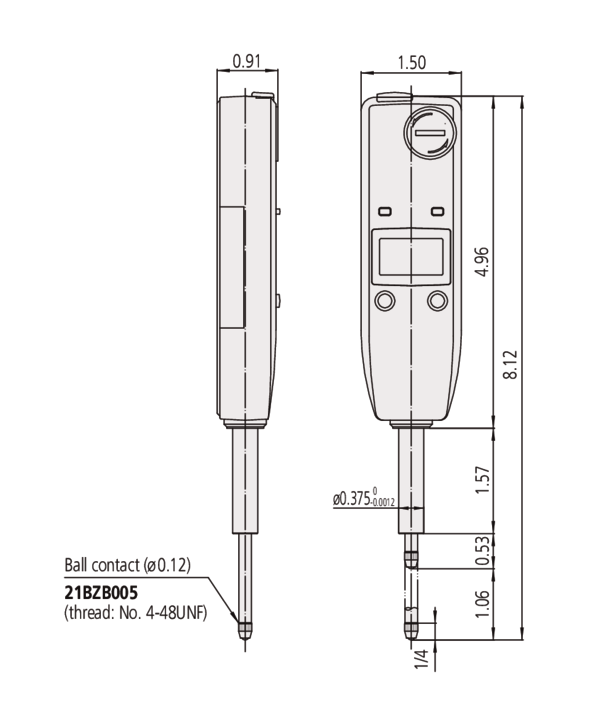

Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 20000 hours
Remarks:
This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
Digimatic data output:
Yes
ON/OFF:
Yes
ORIGIN (ABS-Zero):
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder

No technical information is currently available.

No application information is currently available.

Product Documents

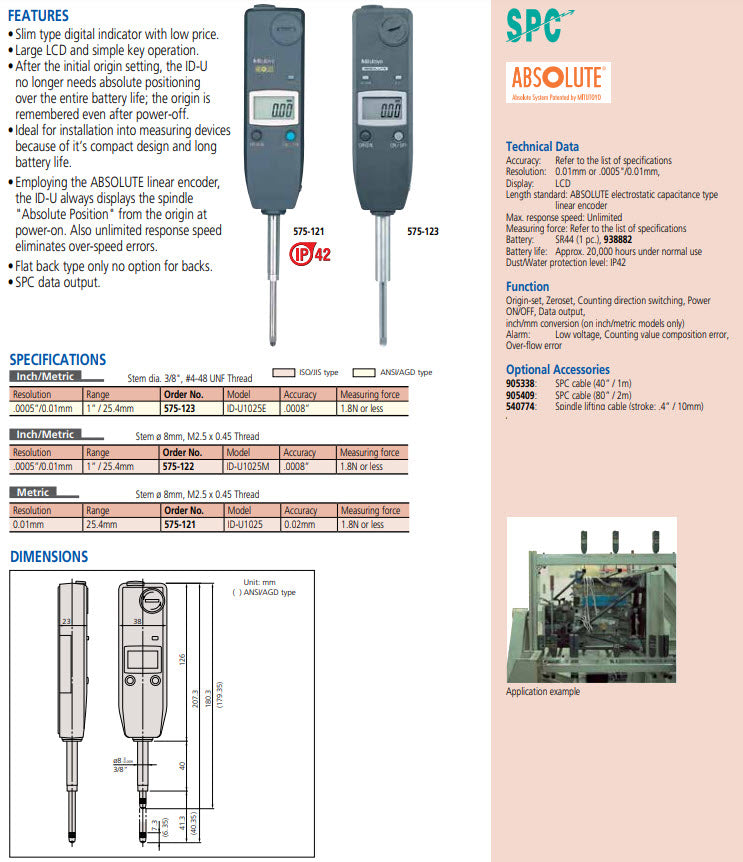

Product Document Digital Indicator ID-U, ANSI/AGD Inch/Metric, 1", 0,0005"/0,01mm 575-123 Click to open the PDF document
