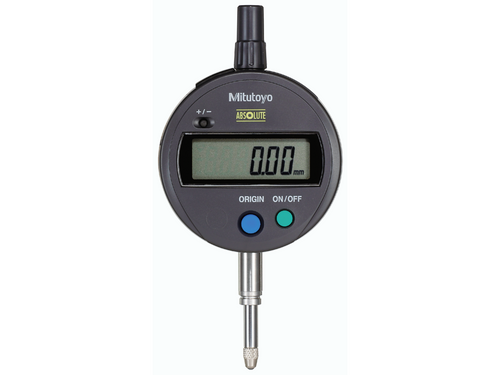

Digital Indicator ID-S
This is a standard model of indicator that is reliable and easy to use.
The ABSOLUTE Digimatic Indicator ID-S offers you the following benefits:
- The ABSOLUTE sensor means you don‘t have to carry out the origin setting every time you power it on, saving you time and hassle.
- You can access all functions by using the large, user-friendly
- buttons on the front of the indicator.
- A large character height of 9 mm provides good readability.
- Exceptional battery life.
Specification
- Digital/Analog: Digital
- Inch-Metric: Metric
- Range: 12.7 mm
- Digital step: 0.01 mm
- Max. Permissible Error
- E MPE (Total Range): 0.02 mm
- H MPE (Hysteresis): 0.02 mm
- R MPE (Repeatability): 0.01 mm
- Measuring force MPL: ≤1.5 N
- Protection: IP42
- Type: EN ISO Standard
- Mass: 140 g
- Scale: Electrostatic capacitance type absolute linear encoder
- Display: LCD, character height 9 mm
- Max. response speed: Unlimited
- Alarm: Low voltage, sensor error, ABS data composition error
- Stem ∅: 8 mm
- Contact point: Carbide ball, thread: M2.5x0.45
- Power supply: 1 battery SR44
- Battery life: Approx. 18000 hours (0.001 mm type), approx. 20000 hours (0.01 mm type) Remarks:
- This digital indicator has data output but no integrated data button so for USB Input Tool Direct Cable (see optional accessory) the USB-ITPAK Software is required.
- Digimatic data output: Yes
- ON/OFF: Yes
- ORIGIN (ABS-Zero): Yes
- Counting direction switchable: Yes
