Mitutoyo SKU: 543-576
List price: €426.00 Offer price: €330.00 Excluding VAT

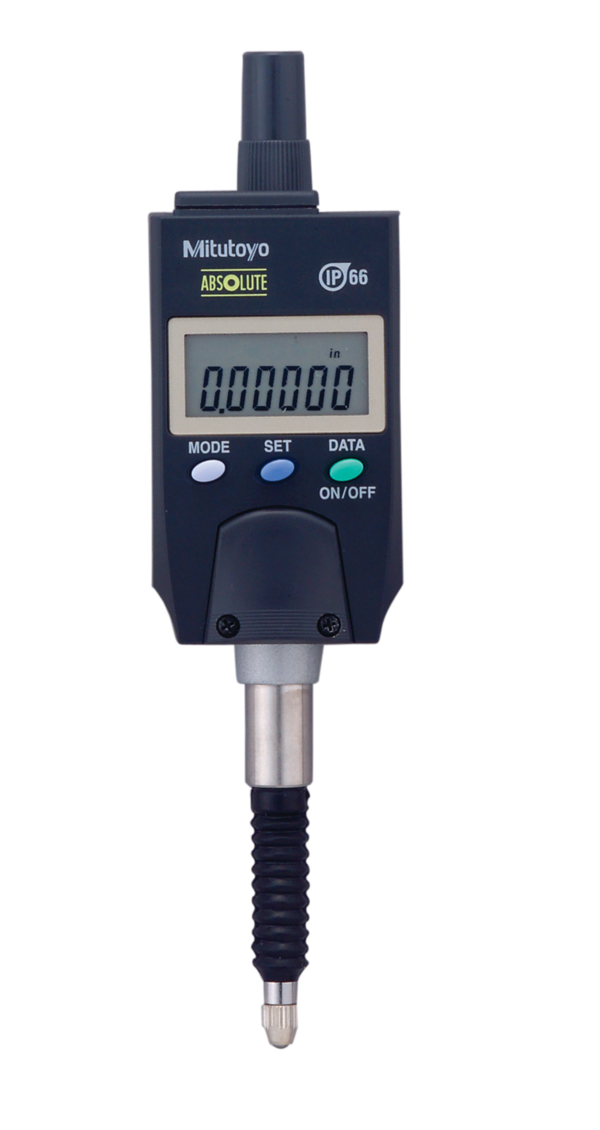

This is a slim back-plunger model that is highly resilient and robust.

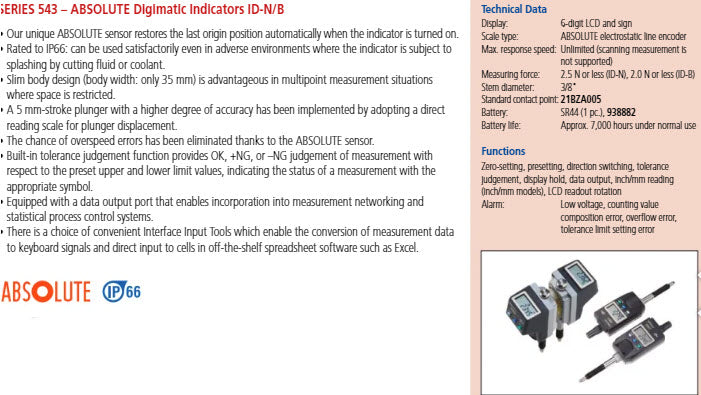

The ABSOLUTE Digimatic Indicator ID-N offers you the following benefits:
  • It slim body design is ideal for multi-point measurements.
  • The ABSOLUTE sensor means you don‘t have to carry out origin setting every time you power it on, saving you time and hassle.
  • It has excellent resistance against water and dust (IP66 protection level) allowing you to use it in machining situations that include splashing coolant fluid.
  • Switchable display orientation gives you more mounting options.
  • You can perform GO/±NG judgement by setting the upper and lower tolerances.

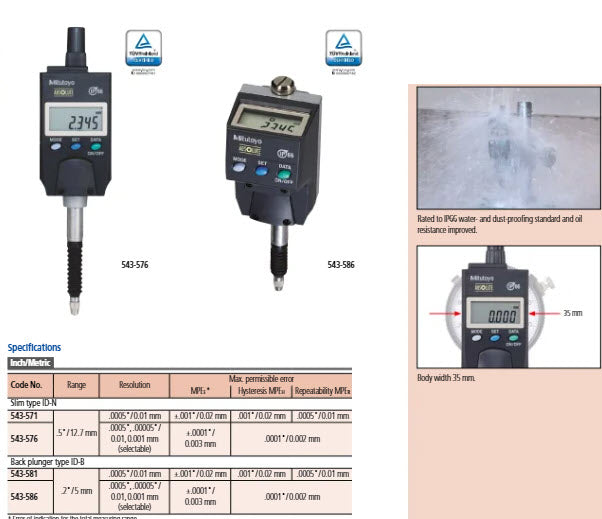

Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
ANSI/AGD type
Delivered:
Including SR44 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.0005"/0.001 mm/ 0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.00012"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
≤2.5 N
Protection:
IP66
Type:
ASME/ANSI/AGD Standard
Measuring force:
≤2,5 N N
Mass:
130 g
Display:
LCD, character height: 6.2 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 7000 hours
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
GO/±NG judgement:
Yes
External
PRESET / ZERO:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
