Digital Indicator ID-N, IP66 12.7mm/0.5" .01/.0005" 543-571

Mitutoyo SKU: 543-571
List price: €305.00 Offer price: €236.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

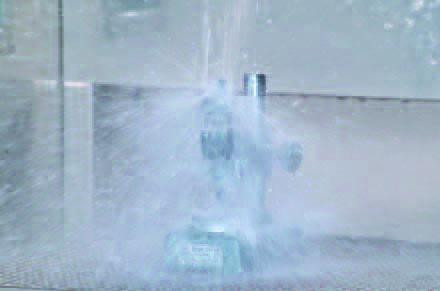

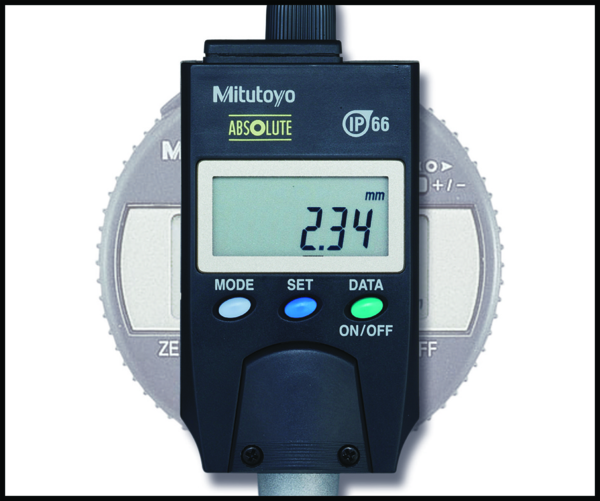

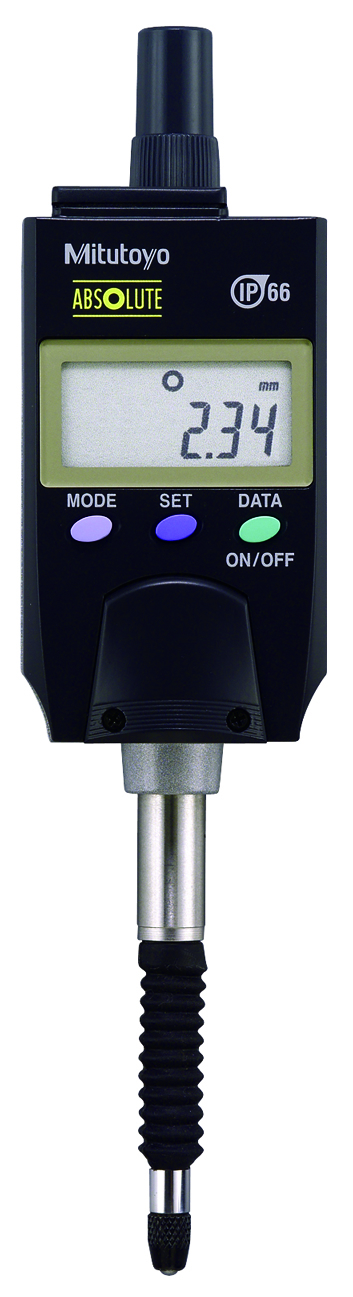

A Mitutoyo slim-style dustproof and waterproof digital indicator suitable for use in the presence of coolant or cutting oil. ABSOLUTE System scale for error free, high-speed measurement. Functionality includes switchable resolution, tolerance judgement, data hold and readout rotation. SPC data output.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Functions:
ANSI/AGD type
Delivered:
Including SR44 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.0005"/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.001"/0.02 mm
Resolution:
0.0005 inch / 0.01 mm
H MPE (Hysteresis):
0.001"/0.02 mm
R MPE (Repeatability):
0.0005"/0.01 mm
Measuring force MPL:
≤2.5 N
Protection:
IP66
Type:
ASME/ANSI/AGD Standard
Measuring force:
≤2,5 N N
Mass:
130 g
Display:
LCD, character height: 6.2 mm
Max. response speed:
Unlimited
Alarm:
Low voltage, counting value composition error, overflow error, tolerance limit setting error
Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery SR44
Battery life:
Approx. 7000 hours
DATA/HOLD:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
GO/±NG judgement:
Yes
External
PRESET / ZERO:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
