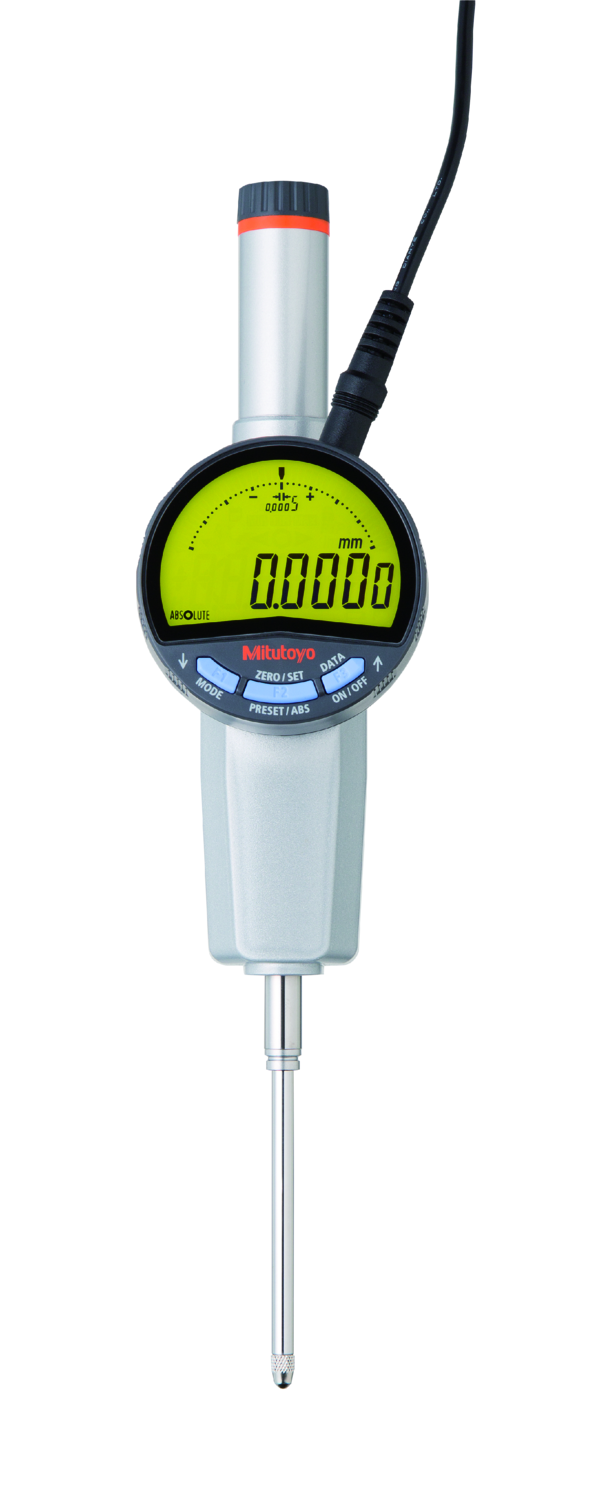

Digital Indicator ID-F High Accuracy Type, 50,8mm, 0,0005mm, with BS AC-Adapter Item number: 543-857E

Roll over image to zoom in Click on image to zoom

Digital Indicator ID-F High Accuracy Type, 50,8mm, 0,0005mm, with BS AC-Adapter Item number: 543-857E

Name: Digital Indicator ID-F High Accuracy Type, 50,8mm, 0,0005mm, with BS AC-Adapter Item number: 543-857E
Brand: Mitutoyo
SKU: 543-857E
Price: 724.5 EUR
Availability: InStock

MitutoyoSKU: 543-857E

Price:

€724.50 €966.25

Quantity:

This is a superior multifunction indicator.
The ABSOLUTE Digimatic Indicator ID-F offers you the following benefits:

Bidirectional Digimatic S1 interface
Red/Green LCD backlight provides you with visual GO/±NG tolerance judgement
Analogue bar-graph display
MAX/MIN/RANGE (runout value) function with a frequency of 500 times/s
External power supply via AC-Adapter
High accuracy and 0,5 µm digital step

Model:	ID-F0550HNX
Digital/Analog:	Digital
Inch-Metric:	Metric
Delivered:	Including spindle lifting handle, AC-adapter, certificate of inspection
Range:	50.8 mm
Digital step:	0.0005 mm/0.001 mm/0,01mm
Max. Permissible Error E MPE (Total Range):	0.003 mm
H MPE (Hysteresis):	0.002 mm
R MPE (Repeatability):	0.002 mm
Measuring force MPL:	≤2.3 N
Protection:	IP30
Type:	EN ISO Standard
Display:	LCD with red/green backlight, character height 11 mm
Max. response speed:	Unlimited
Measurement frequency (MAX/MIN/RANGE):	500 times/s
Alarm:	Setting errors, sensor error, display overflow a.s.o.
Stem ∅:	8 mm
Contact point:	Carbide ball, thread: M2.5x0.45
Power supply:	AC adapter 5,9V, 2A
Digital Scale:	Electrostatic capacitance type absolute linear encoder
ON/OFF:	Yes
ABS / INC (INC ZERO):	Yes
Function lock:	Yes
GO/±NG judgement:	Yes
DATA/HOLD:	Yes
Auto Power OFF setting:	Yes
Counting direction switchable:	Yes
Customizing keys:	Yes
Calibration warning function:	Yes
Digital step switchable:	Yes
MAX/MIN/RANGE:	Yes
Calculation function (with formula):	Yes
Analog bar resolution selection:	Yes
Digimatic data output:	Yes
Digimatic S1 Bidirectional interface:	Yes
Analog bar resolution switchable:	Yes
Selectable resolution:	Yes
Inch/Metric switchable:	No
Mass:	330 g
Plunger Direction:	Up to the horizontal direction
