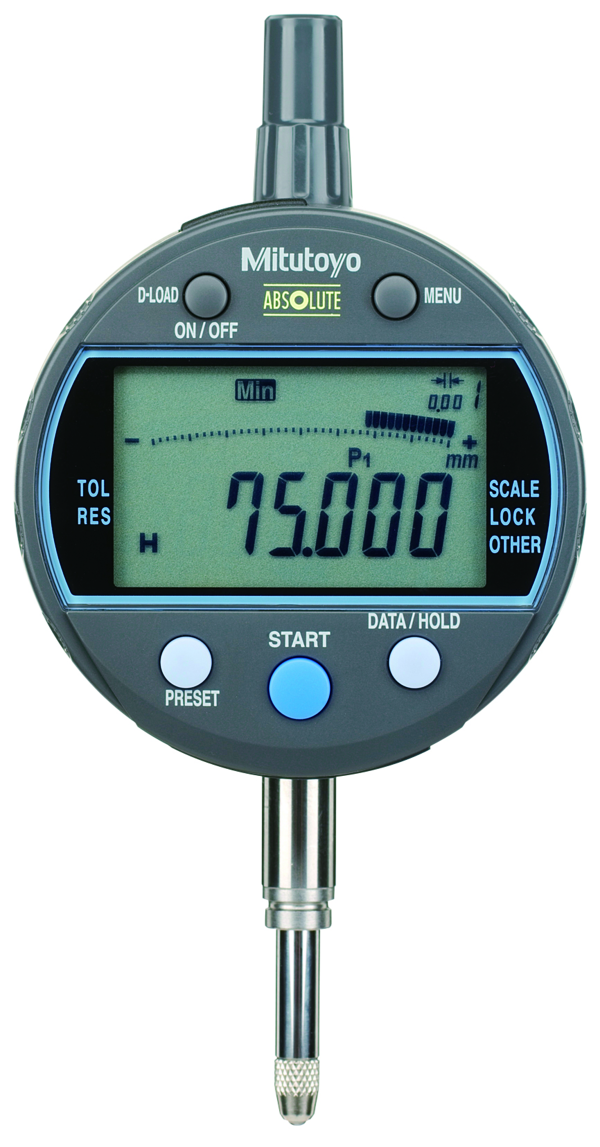

Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10
Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10
Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10
Roll over image to zoom in Click on image to zoom
Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10

Digital Indicator, Bore Gauge ID-C 3/8" Stem 12.5mm/.5" range .001mm/.00005" 543-312B-10

Mitutoyo SKU: 543-312B
List price: €607.00 Offer price: €470.00 Excluding VAT

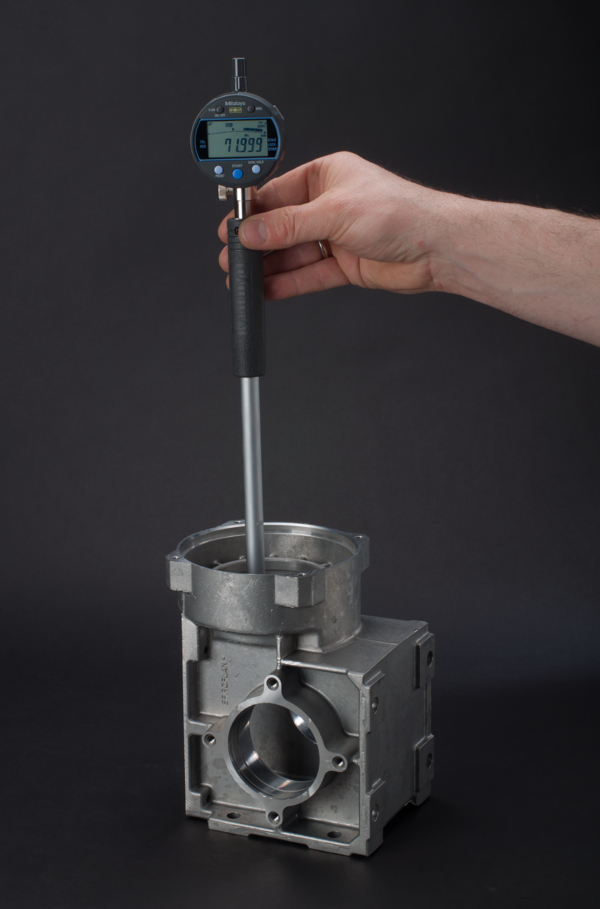

This indicator is designed for inside diameter measurement applications on bore gauges

It offers the following benefits:

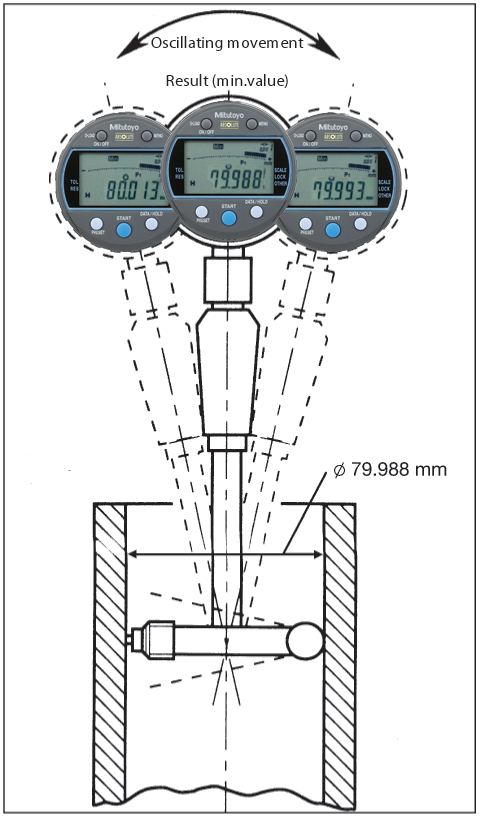

  • Minimum value holding function that allows you to easily detect a hole diameter
  • Analogue bar graph in the display (12 different scales switchable)
  • The analogue bar graph enhances usability by adding a dial gauge “feel” to digital measurement
  • GO/±NG tolerance judgement function
  • A fast measurement frequency mode(detection cycle 20ms or 50times/s) is selectable to measure in the peak detection mode more reliably
  • Easy indicator setup via a setup menu
  • A USB interface box can be used to set up the indicator from PC via dedicated software
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Delivered:
Including CR2032 battery, certificate of inspection
Range:
0.5"/12.7 mm
Digital step:
0.00005"/0.0001"/0.0005"/0.001 mm/0.01 mm
Max. Permissible Error
E MPE (Total Range):
±0.0001"/0.003 mm
H MPE (Hysteresis):
0.0001"/0.002 mm
R MPE (Repeatability):
0.0001"/0.002 mm
Measuring force MPL:
≤1.5 N
Protection:
IP42
Mass:
170 g
Type:
ASME/ANSI/AGD Standard
Display:
LCD, character height 8 mm, 330° rotatable
Max. response speed:
Unlimited
Measurement frequency (MAX/MIN/RANGE):
Standard mode: 10 times/s
fast mode: 50 times/s
(plunger speed max. 50 µm/s for peak measurement)
Alarm:
Low voltage, ABS composition error, overflow error, setting error
Stem ∅:
9.52 mm
Contact point:
Carbide ball, thread: No.4-48UNF
Power supply:
1 battery CR2032
Battery life:
Standard mode: approx. 1 year
fast mode: approx. 4.5 month
DATA/HOLD:
Yes
PRESET 3x:
Yes
MIN Value Hold:
Yes
Digimatic data output:
Yes
ON/OFF:
Yes
Analog bar resolution switchable:
Yes
Function lock:
Yes
GO/±NG judgement:
Yes
Fast measurement mode:
Yes
Counting direction switchable:
Yes
Inch/Metric switchable:
Yes
Digital Scale:
Electrostatic capacitance type absolute linear encoder
