Mitutoyo SKU: 192-671-10
List price: €1,960.00 Offer price: €1,360.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

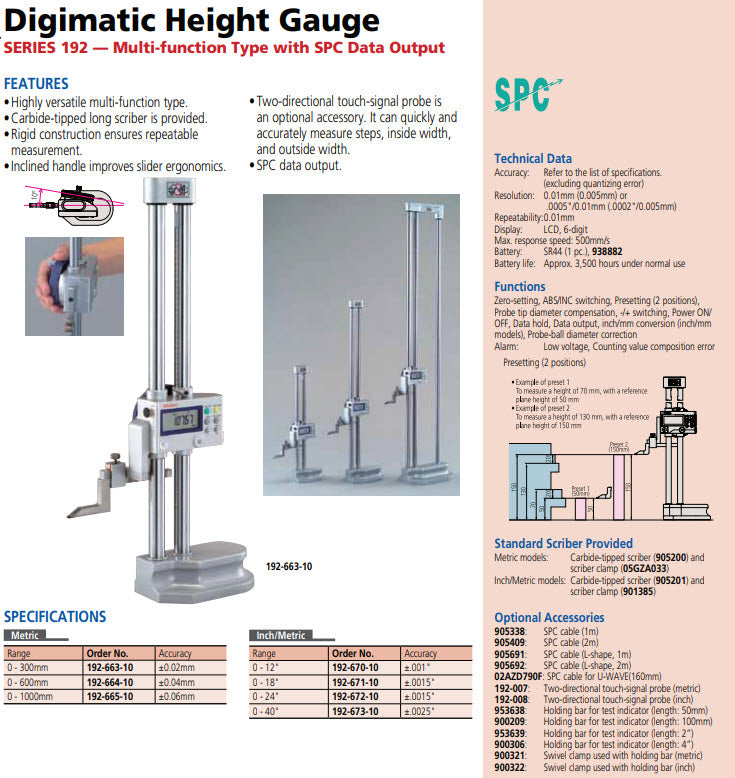

A Mitutoyo digital height gauge, twin column design. Multi-functional type. Digimatic data output. An extensive range of accessories extends the application range.
Specification
Digital/Analog:
Digital
Delivered:
Including carbide tipped scriber, scriber clamp, SR44 battery and dust cover
Range:
0 - 18 "/450mm
Digital step:
0,0005/0,0002" or 0,01/0,005 mm
Max. Permissible Error E MPE:
±0,0015"/±0,04 mm
Max.
Permissible Error
J MPE:
±0,04 mm/0,0015"
Display:
LCD, Character Height: 11 mm
Max. response speed:
500 mm/s
ON/OFF:
Yes
ABS / INC (INC ZERO):
Yes
PRESET (2 values):
Yes
Touch-trigger probe:
Yes
Stylus tip diameter compensation:
Yes
DATA (output with cable) / HOLD (display value):
Yes
Low voltage alarm:
Yes
±SWITCHING:
Yes
Mm / inch switching:
Yes
Inch-Metric:
Inch/Metric
Delivered:
Including scriber, scriber holder, 1 battery and cover
Power supply:
1 battery SR-44
Battery life:
approx. 3500 hours
Mass:
8.3 kg
