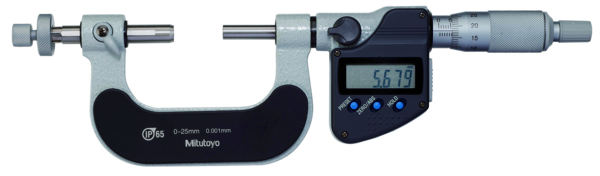

Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 1-2" 324-352-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 1-2" 324-352-30

Name: Mitutoyo Digital Gear Tooth Micrometer IP65 Inch/Metric, 1-2" 324-352-30
Brand: Mitutoyo
SKU: 324-352-30
Price: 675.0 EUR
Availability: InStock

MitutoyoSKU: 324-352-30

Price:

€675.00 €900.00

Quantity:

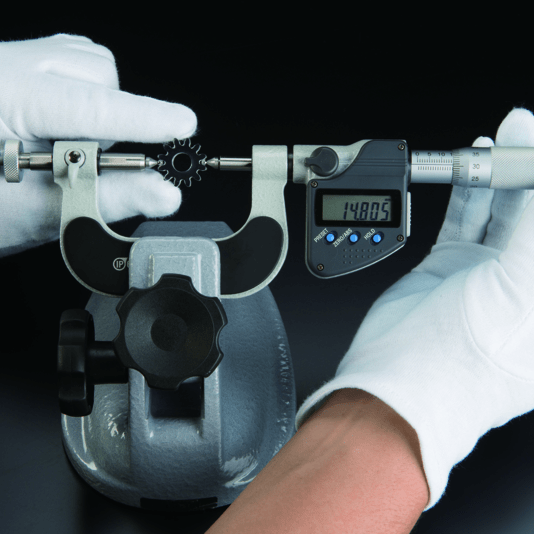

This Digimatic Gear Tooth Micrometer is designed to measure the over-pin diameter of gears .

It has interchangeable steel or carbide ball inserts (optional accessory) that allow you to measure modules sized between 0.5-5.25 mm.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	324-352-30
Measuring Range	25-50mm/1-2"
Resolution	0.001mm/0.00005"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Type	Gear
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Calibration Code	CAL9 B1

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery, without interchangeable tips
Inch-Metric:	Inch/Metric
Range:	1 - 2 "
Digital step:	0,00005"/0,001 mm
Spindle feed error:	0.00015 inch
Display:	LCD, character height 7.5 mm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Delivered:	Including box, setting standard (from 25 mm upward), key, 1 battery without interchangeable tips
