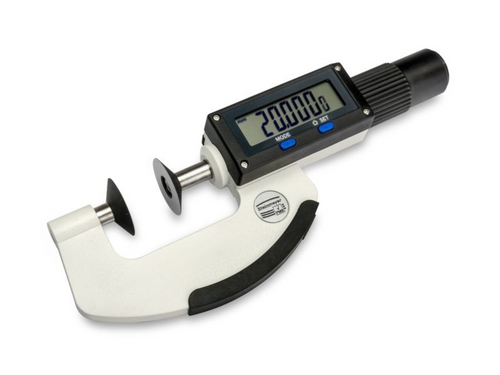

Digital Gear Micrometer 0818 with disc-type anvils
Digital micrometer for measuring gear tooth widths with 30 mm direct measuring range and 2 mm spindle thread pitch
- Linear measuring system, directly within Abbe measuring axis
- Reversible counting (in case of ingoing spindle the display value increases)
- (Non-rotating) Floating spindle for high repeat accuracy, 2 mm pitch
- Switchable resolution of 0.5 µm, 1 µm & 10 µm
- Preset adjusting via spindle is possible
- Protection class IP65
- Inch conversion metric mm / inch
- Interface Proximity (Sylvac) for data transfer to measuring computer, wireless or cable
- Input and saving of PRESET and tolerance values
- Min- / Max-value memory
Technical Data
- Switchable resolution 10 µm, 1 µm, 0,5 µm; 0,0005“, 0,00005“, 0,00002“
- Spindle pitch 2,0 mm
- Spindle type non-rotating
- Measuring force by ratchet approx. 7 N
- Disc-diameter 30 mm
- Height 7 segment display 12 mm
- Interface Proximity (Sylvac)
- Protection class IP65
- Software functions MIN MAX, MIN-MAX Mem., HOLD, preset with a rotary knob
- Errorlimit MPE < 3 µm
