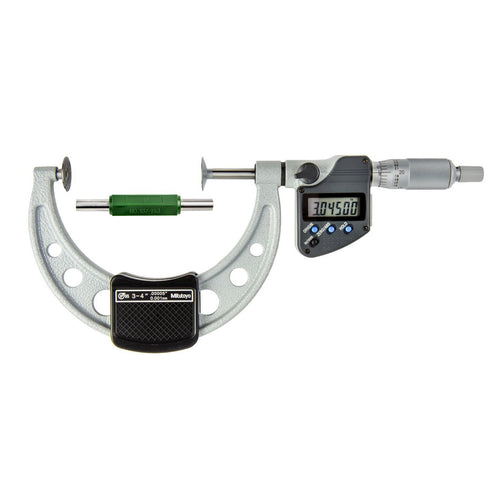

Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30

Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 75-100mm/3-4"Disk=20mm 323-353-30

Mitutoyo SKU: 323-353-30
List price: €945.80 Offer price: €662.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product

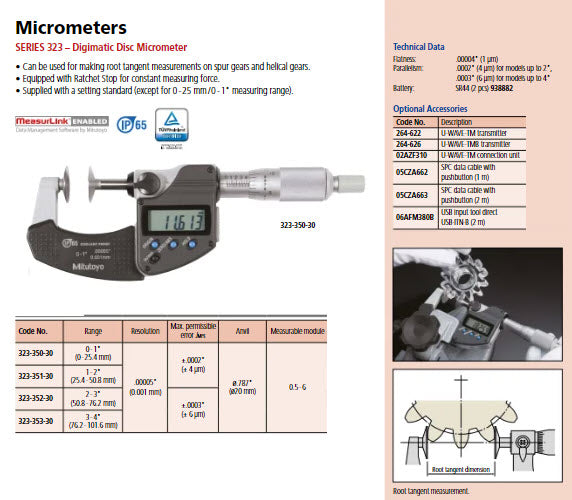

  • This Digimatic Disc Micrometer enables you to measure hard-to-reach features,
    offering you the following benefits:

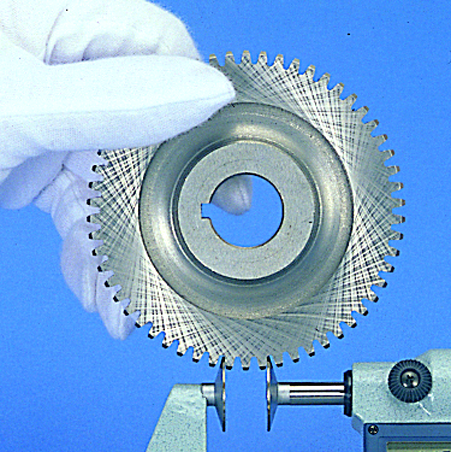

    • Measuring the root tangent length of spur and helical gears.
    • You can measure recessed features that are difficult to reach with a standard micrometer.
    Specification
    Digital/Analog:
    Digital
    Delivered:
    Including box, spanner, 1 SR44 battery
    Inch-Metric:
    Inch/Metric
    Range: 75-100mm/3-4"
    Digital step:
    0,00005"/0,001 mm
    Max.
    Permissible Error
    J MPE:
    ±0,0003"/.007mm
    Parallelism:
    0,0003"/.007mm
    Display:
    LCD, character height 7.5 mm
    Measuring face:
    Hardened steel, micro-lap finish
    Measuring spindle:
    With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
    Scale:
    Thimble and sleeve satin chrome finish, ø18 mm
    Measuring force:
    3 - 8 N
    Power supply:
    1 battery SR-44

No technical information is currently available.

No application information is currently available.
