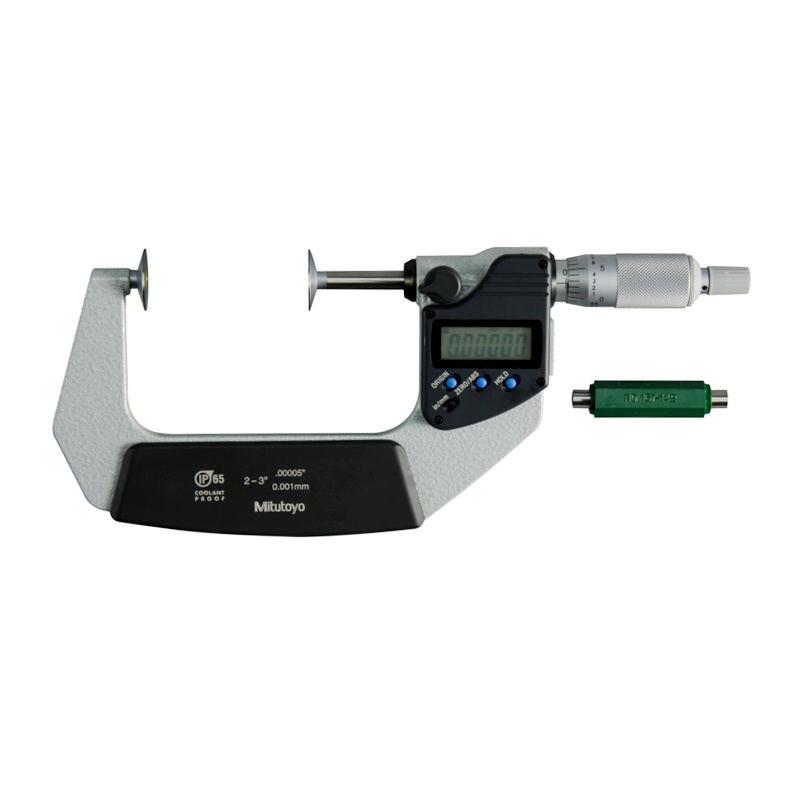

Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 50-75mm/2-3"Disk=20mm 323-352-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 50-75mm/2-3"Disk=20mm 323-352-30

Name: Mitutoyo Digital Disc Micrometer IP65 Inch/Metric, 50-75mm/2-3"Disk=20mm 323-352-30
Brand: Mitutoyo
SKU: 323-352-30
Price: 637.0 EUR
Availability: InStock

MitutoyoSKU: 323-352-30

Price:

€637.00 €849.00

Quantity:

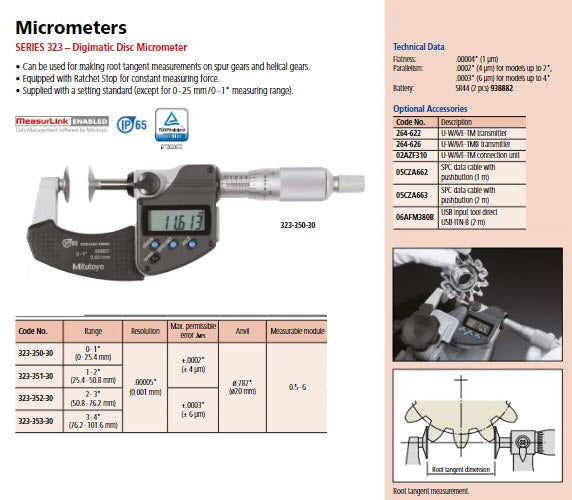

This Digimatic Disc Micrometer enables you to measure hard-to-reach features,
offering you the following benefits:

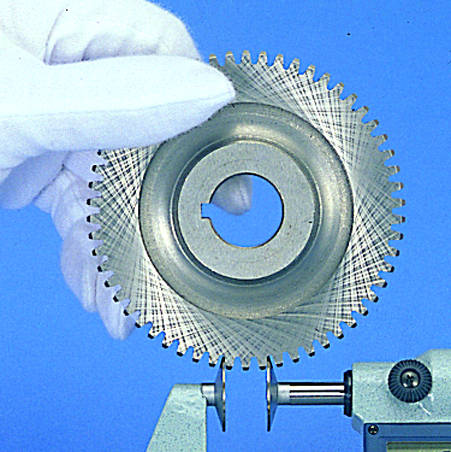

Measuring the root tangent length of spur and helical gears.
You can measure recessed features that are difficult to reach with a standard micrometer.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	323-352-30
Measuring Range	50-75mm/2-3"
Resolution	0.001mm/0.00005"
Accuracy	[".005mm/.0002\""]
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	["IP65"]
Measuring Force	8+/-0.8N
Type	Disc
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop
Flatness	1µm/.00004"
Parallelism	.006mm/.00024"
Calibration Code	CAL9 B1

Digital/Analog:	Digital
Delivered:	Including box, spanner, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	50-75mm/2-3"
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,00024"/.006mm
Parallelism:	0,00024/.006mm
Display:	LCD, character height 7.5 mm
Measuring face:	Hardened steel, micro-lap finish
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
