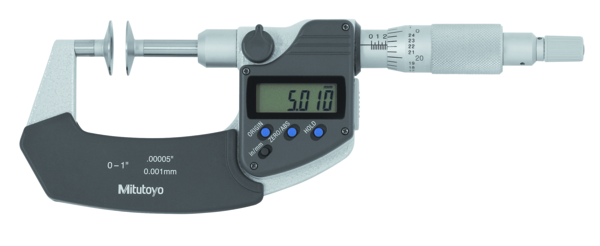

Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central RecessMitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess

Mitutoyo Digital Disc Micrometer Inch/Metric, 0-1", Non-Rotating Spindle, Disk=20mm 369-350-30 Flat Anvils no Central Recess

Mitutoyo SKU: 369-350-30
List price: €915.00 Offer price: €709.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
U-WAVE fit, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-622
Part number: 264-622  → View product
U-WAVE fit, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-623
Part number: 264-623  → View product
U-WAVE fit Bluetooth, IP67 Type Wireless Transmitter for Micrometer/Indicator 264-626
Part number: 264-626  → View product
U-WAVE fit Bluetooth, Buzzer Type Wireless Transmitter for Micrometer/Indicator 264-627
Part number: 264-627  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA662
Part number: 05CZA662  → View product
Mitutoyo Digimatic Cable with Data Button IP Type 05CZA663
Part number: 05CZA662  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380B
Part number: 06AFM380B  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
This Digimatic Disc Micrometer allows you to measure a range of different materials.
It offers you the following benefits:
  • Non-rotating spindle and disc-shaped measuring surfaces.

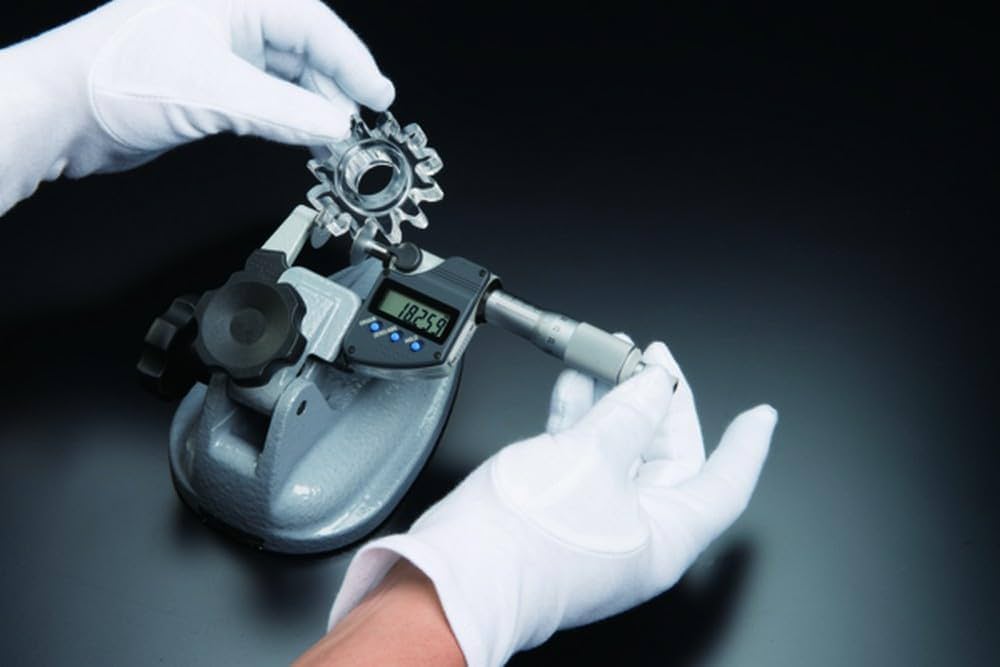

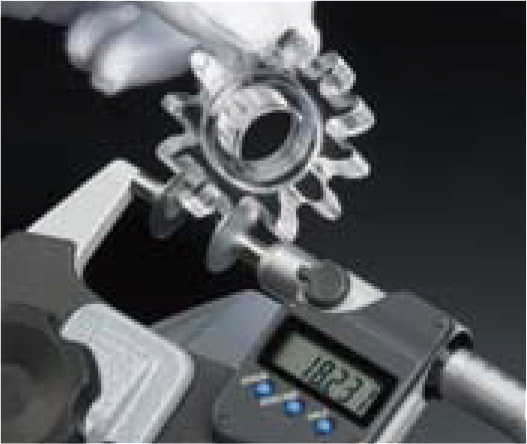

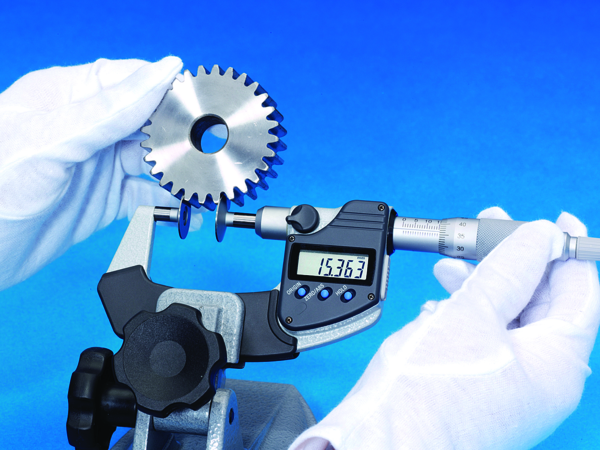

  • Measuring the root tangent length of spur and helical gears
  • Measurable range of gear pitch: 0,5-6 module
  • Suitable for measuring felt, rubber, cardboard, fabric etc.

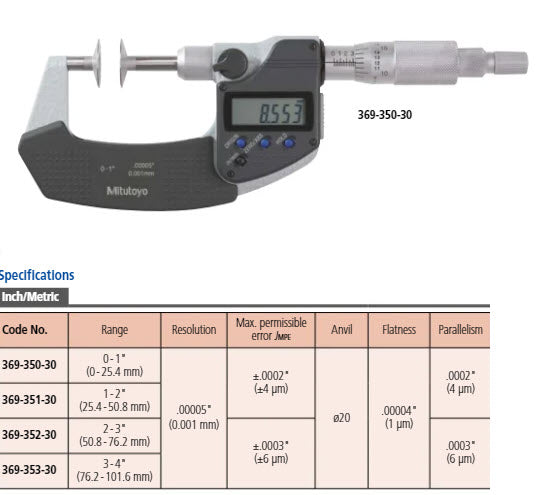

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 1 "/0-25mm
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0002"/.005mm
Parallelism:
0,0002"/.005mm
Display:
LCD, character height 7.5 mm
Measuring face:
Hardened steel, micro-lap finish
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Measurable module:
0.5 - 6 mm
Delivered:
Including box, setting standard (from 25 mm upward), key, 1 battery

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
