Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676
Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676
Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676
Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676
Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676

Mitutoyo Digital Absolute Micrometer QuickMike Inch/Metric, 0-1,2" 293-676

Mitutoyo SKU: 293-676-20
List price: €626.00 Offer price: €485.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

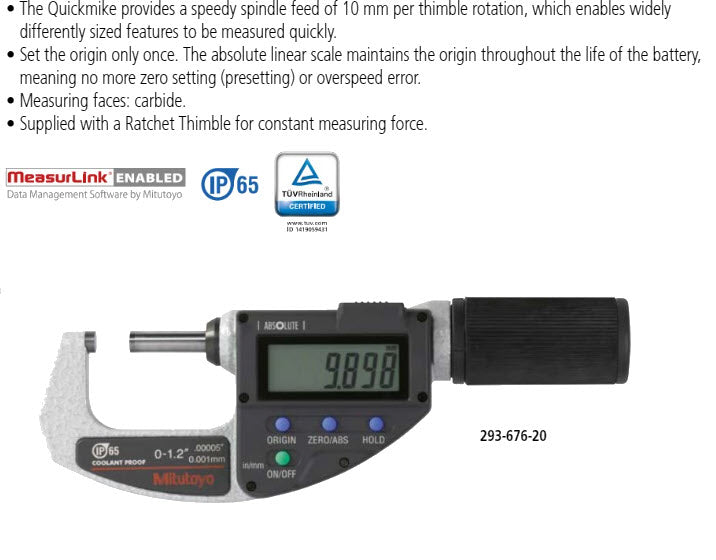

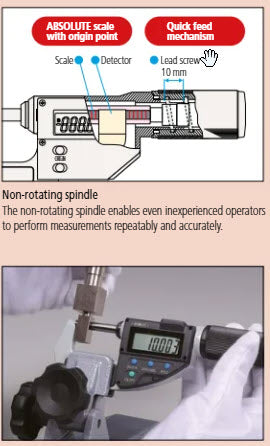

DescriptionThis Quickmike, with a non-rotating spindle, delivers much faster movement than standard models.
The ABSOLUTE Digimatic Micrometer Quickmike offers the following benefits:
  • With 10 mm feed per thimble rotation, it delivers twenty times as fast as standard devices.
  • Excellent resistance against water and dust (IP65) enables this micrometer to be used in machining situations that include splashing coolant fluid.
  • ABSOLUTE linear scale means no restriction on adjustment speed.
  • Larger measuring range - 30 mm compared with 25 mm - than standard micrometer.

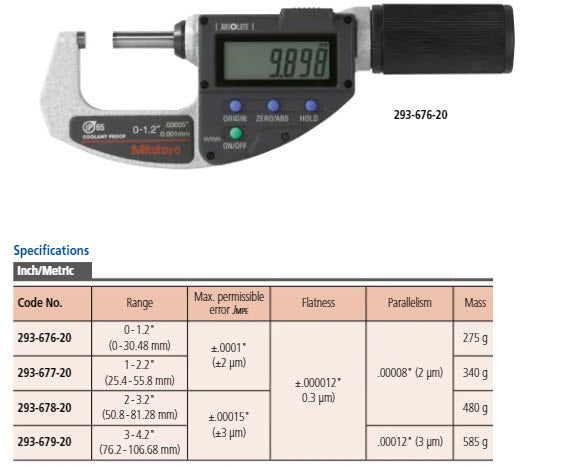

Features
Digital/Analog:
Digital
Delivered:
Including box, SR44 battery
Inch-Metric:
Inch/Metric
Range:
0 - 1.2 "
Digital step:
0.00005"/0.001 mm
Max.
Permissible Error
J MPE:
±0.0001"
Flatness:
0.000012"
Parallelism:
0.00008"
Data output:
Yes
Display:
LCD, character height 10 mm
Measuring face:
Carbide-tipped, micro-lap finish
Measuring spindle:
ø6.35 mm, non-rotating, spindle feed 10 mm
Measuring force:
5 - 12 N
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years
Delivered:
including Box, gauge block (from 25 mm upward), 1 battery
ON/OFF:
Yes
ORIGIN:
Yes
ABS / INC (INC ZERO):
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
Mass:
275 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
