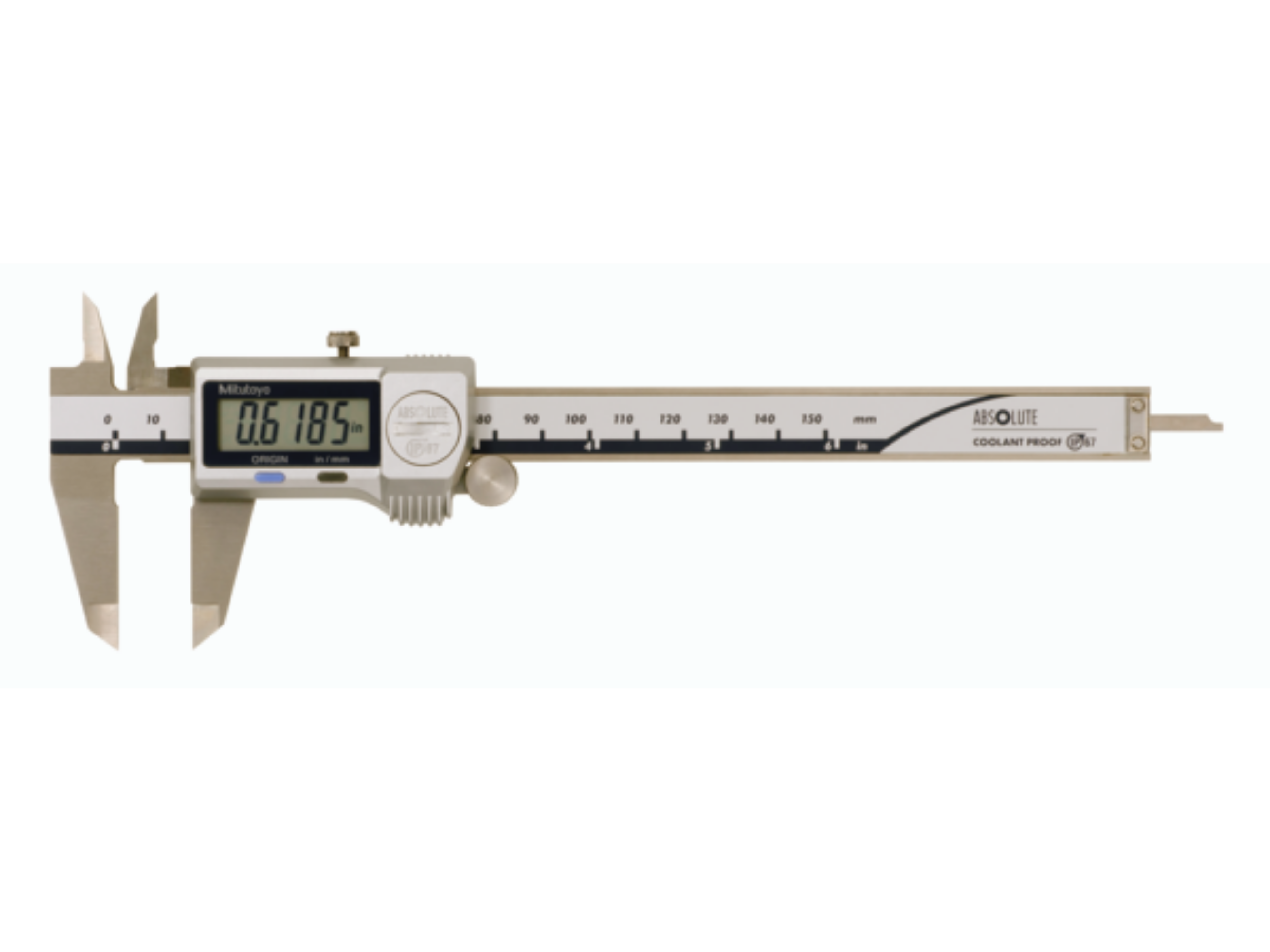

Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Carbide Caliper 0-200mm/0-8" OD/ID Carbide 500-738-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Carbide Caliper 0-200mm/0-8" OD/ID Carbide 500-738-20

Name: Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Carbide Caliper 0-200mm/0-8" OD/ID Carbide 500-738-20
Brand: Mitutoyo
SKU: 500-738-20
Price: 455.34 EUR
Availability: InStock

MitutoyoSKU: 500-738-20

Price:

€455.34 €623.75

Quantity:

These robust calipers have carbide-tipped jaws and allow reliable measurements in a wide range of situations.
The ABSOLUTE Digimatic Carbide Caliper IP67 offers you the
following benefits:

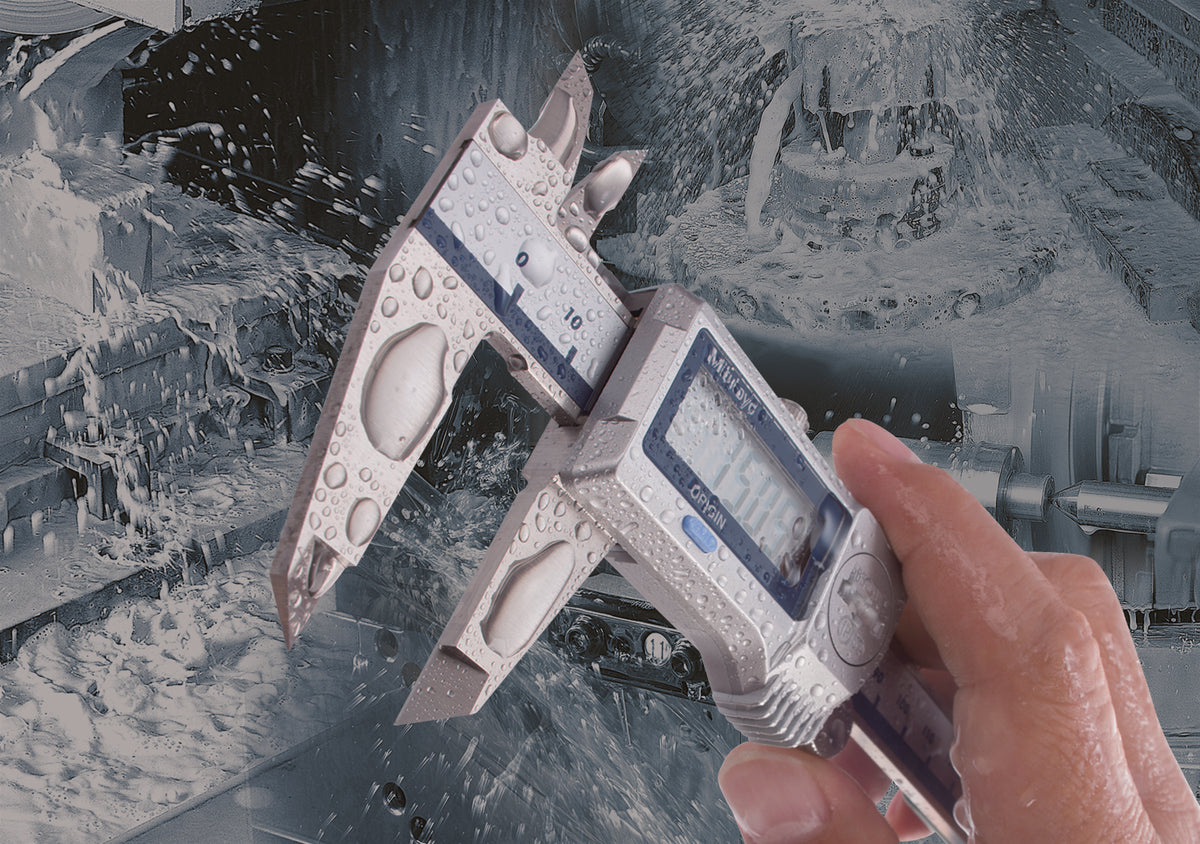

Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid.
Dustproof, complies with EN60529 withstands temporary complete immersion in water without suffering any damage
Extraordinarily long battery life.

Product Information
Part Number	500-738-20
Measuring Range	0-200mm/0-8"
Resolution	.01mm/.0005"
Accuracy	["±.02mm/.001\""]
Unit of Measurement	Metric Inch
Data Output	Yes
IP Rating	["IP67"]
Type	Standard
Thumb Roller	Yes
Depth Rod	Square Depth Rod

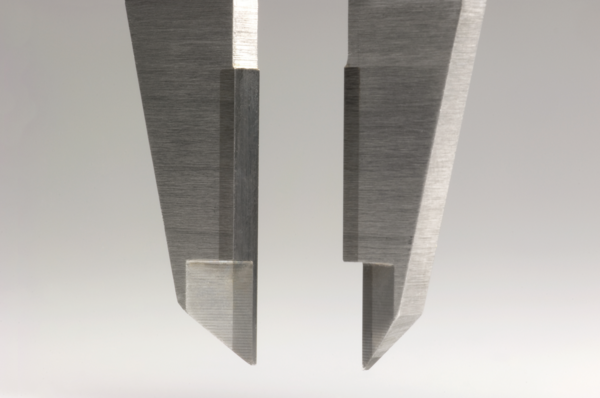

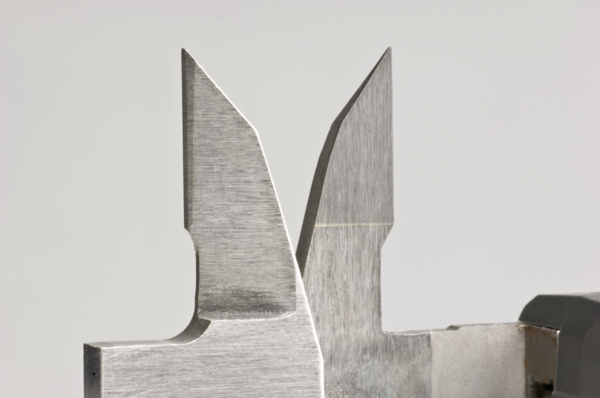

Measuring Jaws	OD/ID Carbide Jaws
Length of Jaws	40mm
Adjustment Type	Thumb Roller
Calibration Code	CAL12B 1
Style	Digital Caliper with SPC

Delivered:	Including box, SR44 battery, certificate of inspection
Depth bar:	flat
Thumb roller:	Yes
Data output:	Yes
Max. Permissible Error E MPE:	±0,001"
Max. Permissible Error S MPE:	±0,002"
Digital step:	0,0005"/0,01 mm
Max. response speed:	Unlimited
Display:	LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:	In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Battery life:	Approx. 5 years under normal use
Mass:	198 g
