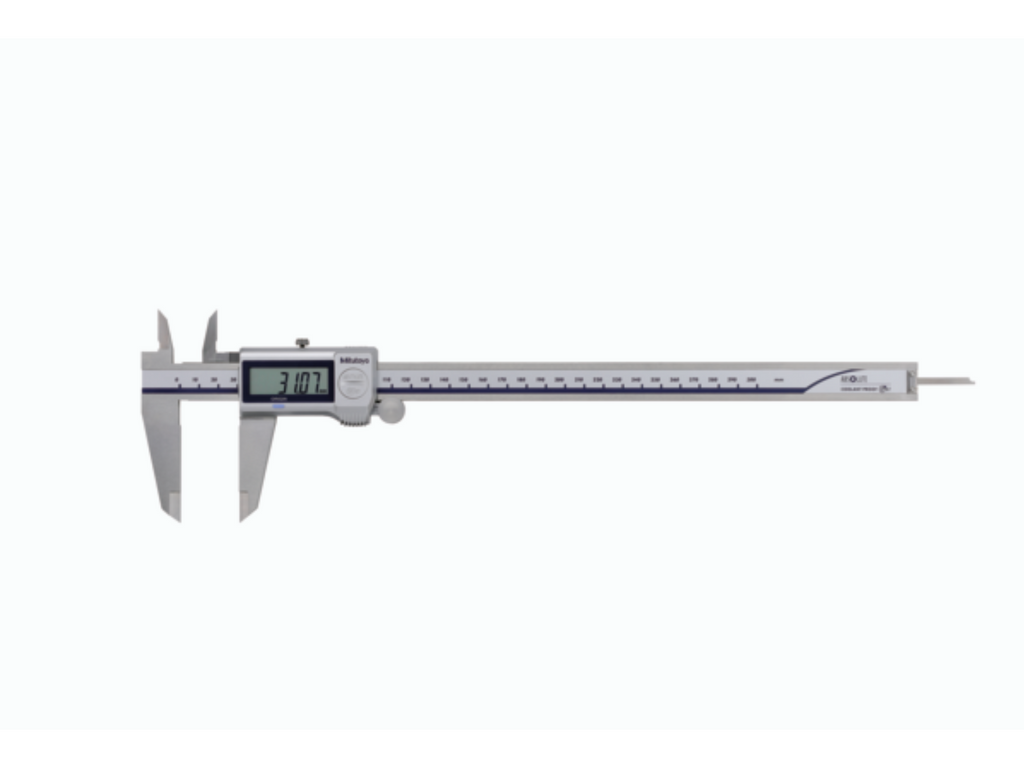

ABSOLUTE Coolant Proof Caliper 0-300mm IP67 (Square Depth Rod & Thumb Roller) 500-704-20
- ABSOLUTE (Metric Only)
- Coolant Proof IP67
- No Output
- Thumb Roller
- Resolution .01mm
This IP67 ABSOLUTE Digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:
Features
- Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
- It is dustproof, complies with EN60529, and withstands temporary complete immersion in water without suffering any damage.
- ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.

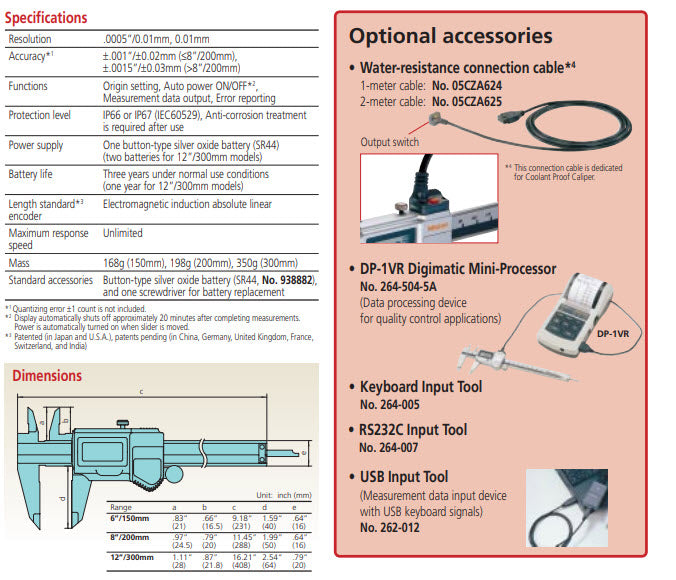

Specification
- Depth bar: flat
- Thumb roller: Yes
- Data output: No
- Max. Permissible Error E MPE: ±0,03mm
- Max. Permissible Error S MPE: ±0,05mm
- Digital step: 0,01 mm
- Max. response speed: Unlimited
- Display: LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
- Delivered: In a case, including 1 SR-44 battery
- ORIGIN (ABS-Zero): Yes
- ON/OFF: Yes
- ABS / INC (INC ZERO): Yes
- Low voltage alarm: Yes
- Battery life: Approx. 5 years under normal use
- Mass: 168 g
All images are for representation only.
