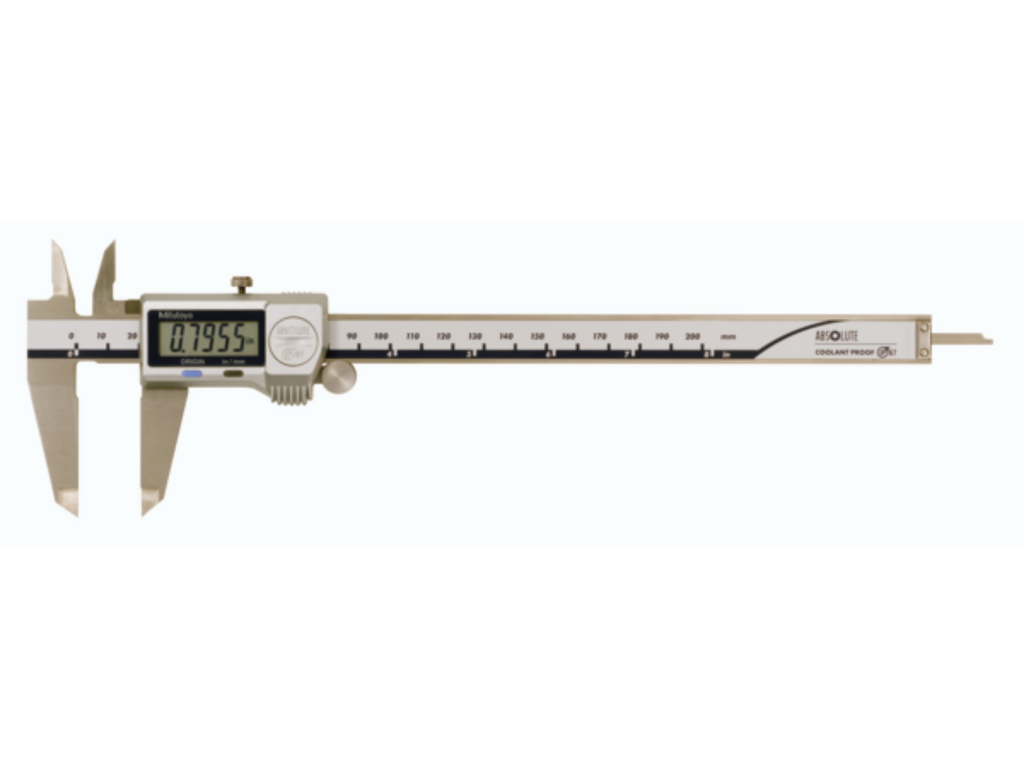

Mitutoyo Digital ABSOLUTE Coolant Proof IP67 Caliper 0-200mm With Output 500-713-20 Res .01mm

Mitutoyo SKU: 500-713-20

List price: €331.00 Offer price: €256.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

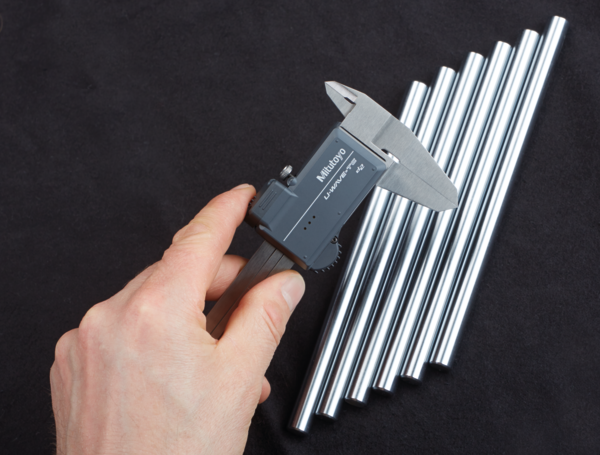

U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620
Part number: 264-620  → View product
U-WAVE Fit, Buzzer Type Wireless Transmitter for Caliper 264-621
Part number: 264-621  → View product
U-WAVE Fit Bluetooth, IP67 Type Wireless Transmitter for Caliper 264-624
Part number: 264-624  → View product
U-WAVE Fit Bluetooth, Buzzer Type Wireless Transmitter for Caliper 264-625
Part number: 264-625  → View product
Mitutoyo Connection Unit IP Caliper, Micrometer U-WAVE fit, U-WAVE fit Bluetooth 02AZF310
Part number: 02AZF310  → View product
Digimatic Cable with Data Button IP Type 05CZA624
Part number: 05CZA624  → View product
Digimatic Cable with Data Button IP Type 05CZA625
Part number: 05CZA625  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380A
Part number: 06AFM380A  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View productCurrently unavailable
This IP67 ABSOLUTE digimatic caliper allows reliable measurements in a wide range of situations and offers you the following benefits:

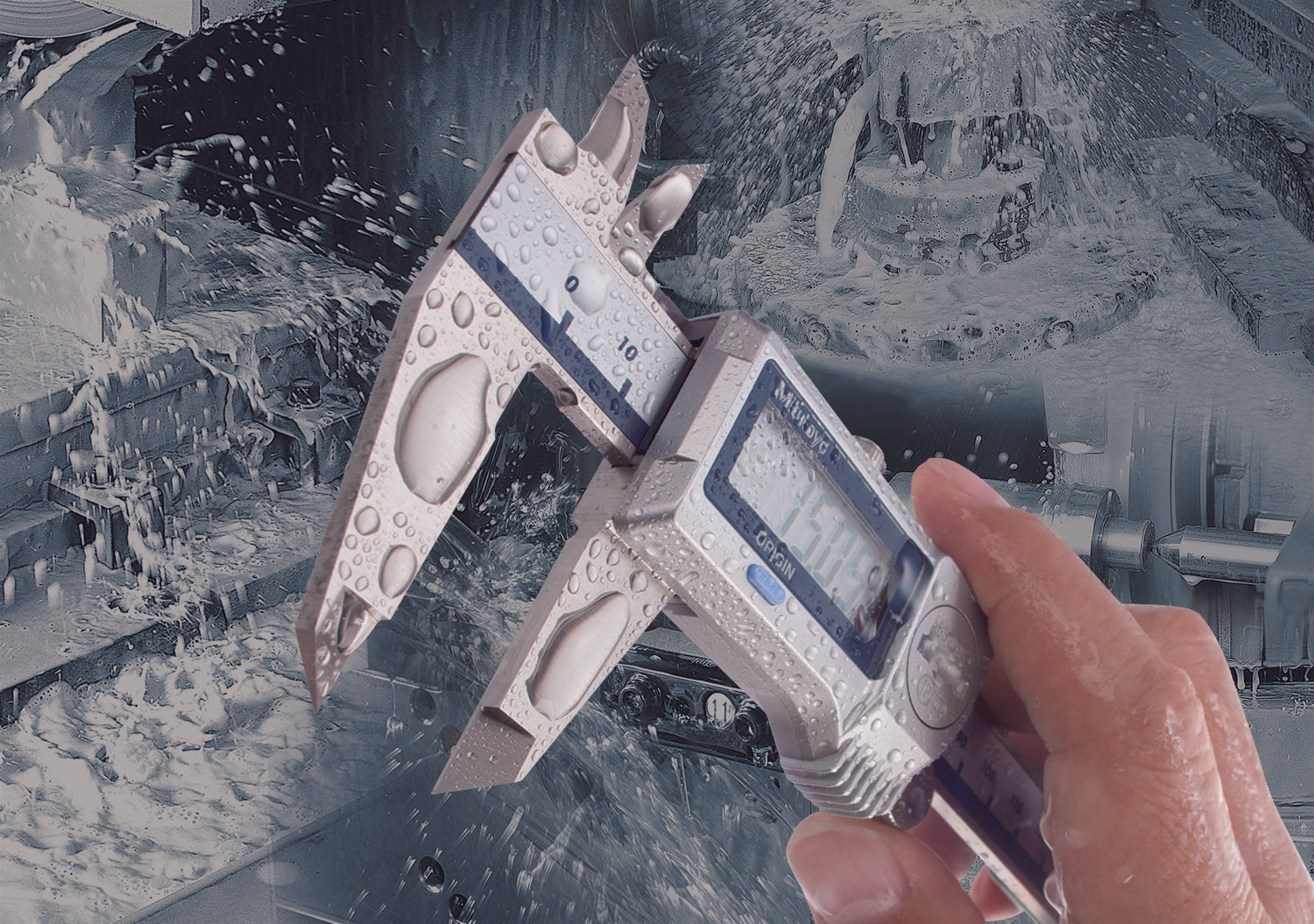

  • Excellent resistance against water and dust (IP67 protection level) enabling use in machining situations that include splashing coolant fluid
  • It is dustproof, complies with EN60529 and withstands temporary complete immersion in water without suffering any damage.
  • ABS (ABSOLUTE) scale requires no origin setting after power-on and has no limit to response speed.
Delivered:
Including box, SR44 battery, certificate of inspection
Depth bar:
flat
Thumb roller:
Yes
Data output:
Yes
Max. Permissible Error E MPE:
.020mm
Max. Permissible Error S MPE:
±0,.04mm
Digital step:
0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (150, 200 mm) 11 mm (300 mm)
Delivered:
In a case, including 1 SR-44 battery
ORIGIN (ABS-Zero):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Battery life:
Approx. 5 years under normal use
Mass:
194 g
