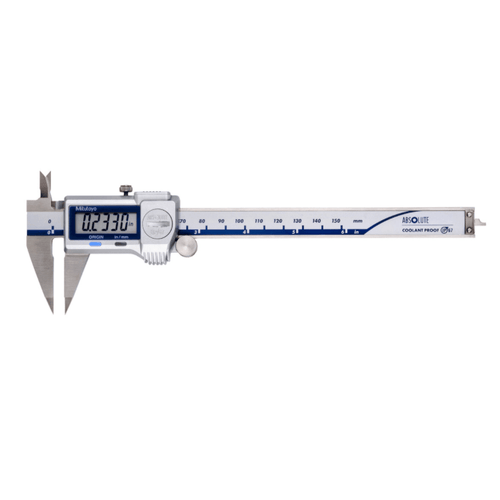

These point calipers offer you the following benefits:

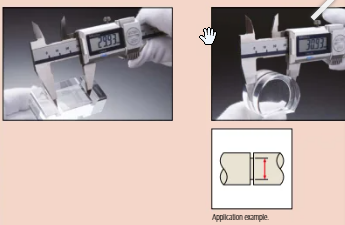

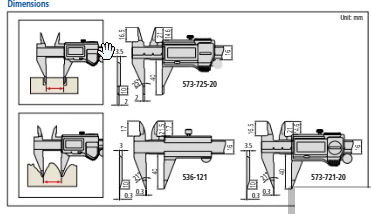

- Narrow-tip jaws fit into very small grooves and tracks, making many previously difficult outside measurements far easier to obtain
- Can measure outside and inside dimensions, depths, and steps
- Digimatic models feature Mitutoyo’s ABSOLUTE system with IP67 ingress protection. No need to reset the origin after switching on
- Integration into statistical process, control and measurement systems

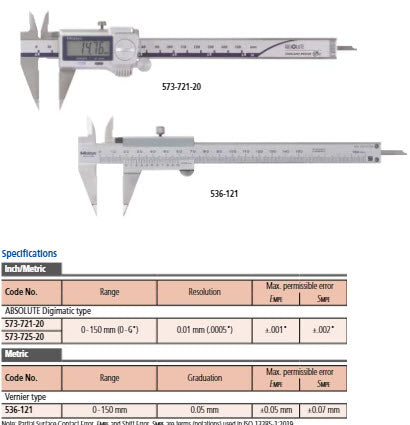

- Range: 0-150mm (0-6″)
- Resolution: 0.01mm (0.0005″)
- Accuracy: ± 0.02mm (0.001″)
- IP67 Protected: Waterproof (coolant & dust resistant)
- Origin (ABS-Zero): Yes
- SPC Data output
- Inch/Metric
- MPN: 573-721-20
