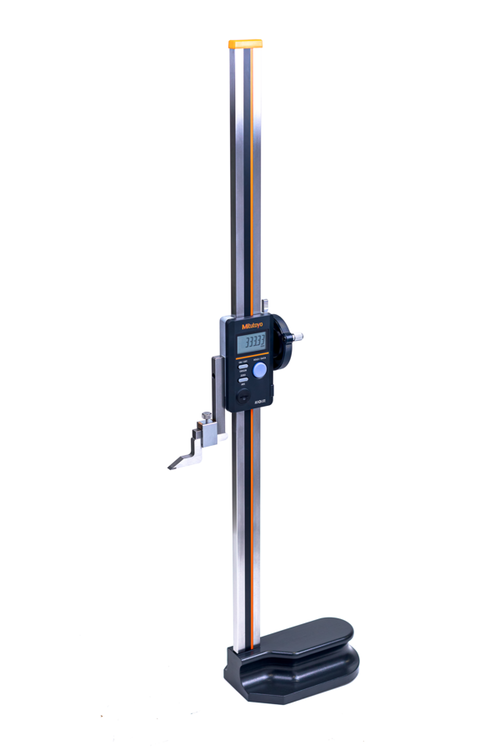

Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413
Roll over image to zoom in Click on image to zoom
Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413

Digital ABS Height Gauge Inch/Metric, 0-450mm/0-18", with Handwheel 570-413

Mitutoyo SKU: 570-413
List price: €1,325.00 Offer price: €925.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

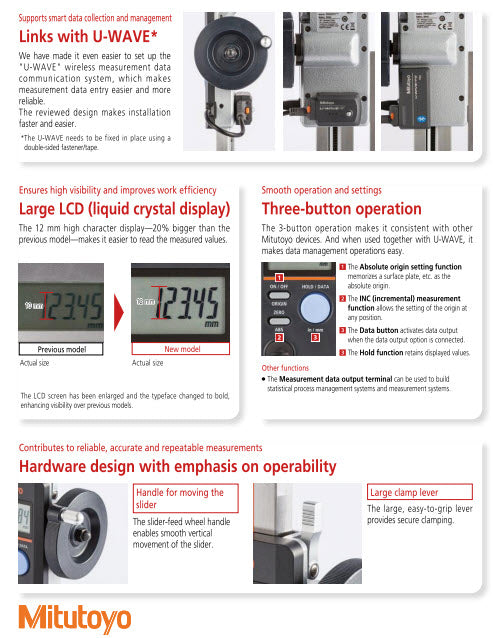

This Digimatic height gauge is very precise and reliable, and offers you the following benefits:
  • Its built-in ABSOLUTE linear encoder means you don‘t have to set the reference point at every power-on, improving reliability as over-speed errors cannot occur.

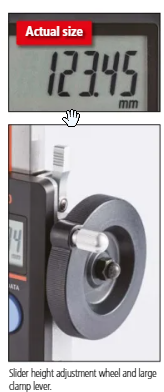

  • It comes with large and smooth-acting slider hand wheel
  • A carbide-tipped scriber is provided.

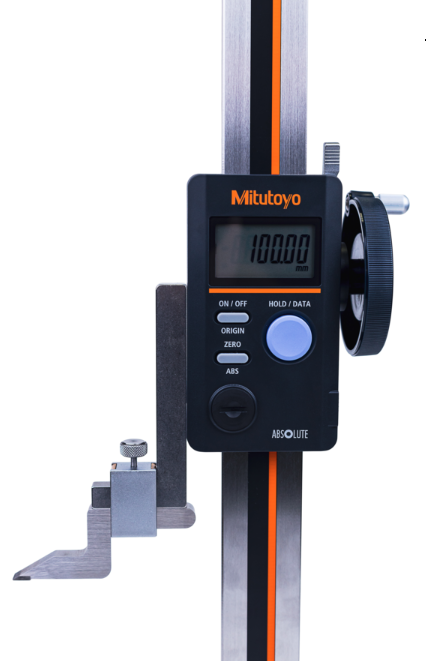

  • A large display and buttons for easy operability.

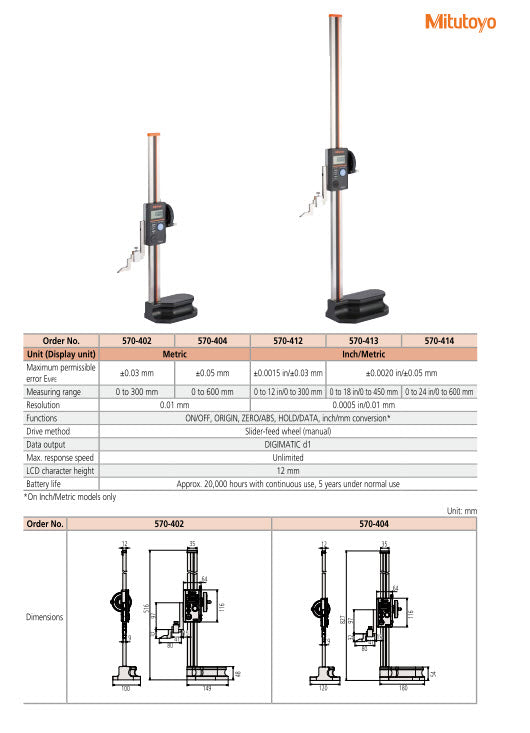

Specification
Digital/Analog:
Digital
Delivered:
In a carton box, with carbide tipped scriber, scriber clamp, SR44 battery
Range:
0 - 18" /0-450mm
Digital step:
0,0005"/0,01 mm
Max. Permissible Error E MPE:
±0,002"/±0,05 mm
Scale:
ABSOLUTE capacitance type linear encoder
Display:
LCD, character height 12 mm
Max. response speed:
Unlimited
ON/OFF:
Yes
ABS / INC (INC ZERO):
Yes
ORIGIN (ABS-Zero):
Yes
DATA (output with cable) / HOLD (display value):
Yes
Low voltage alarm:
Yes
Mm / inch switching:
Yes
Inch-Metric:
Inch/Metric
Delivered:
Including 1 battery, scriber and scriber clamp
Power supply:
1 battery SR-44
Battery life:
Approx. 5 years under normal use
Dimensions

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
