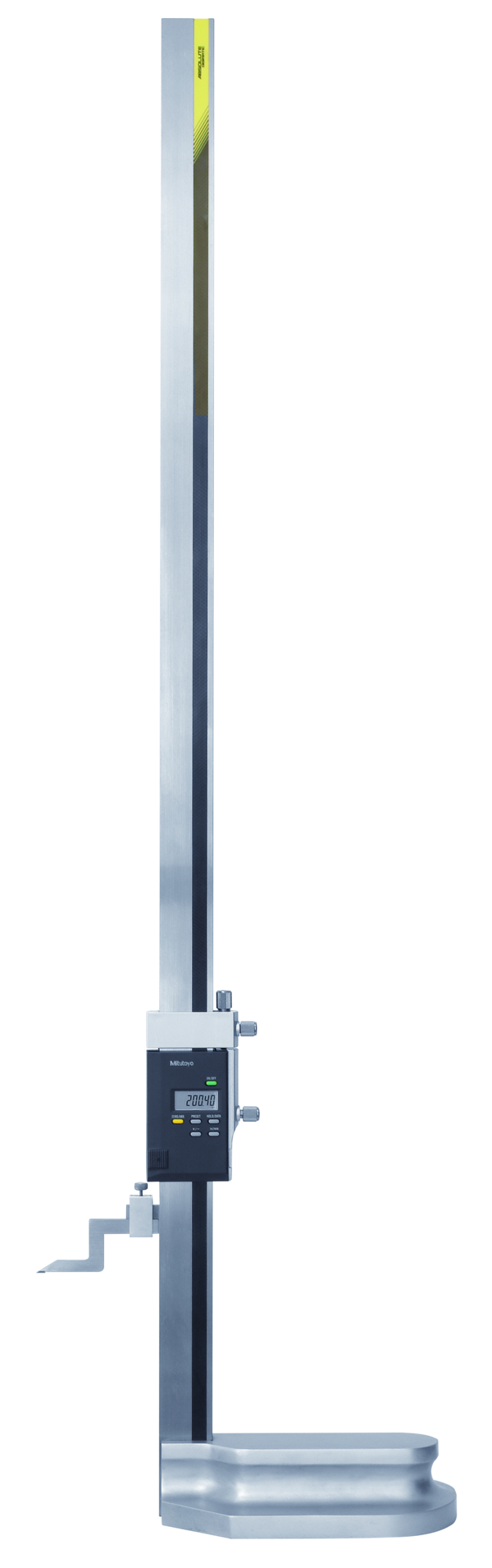

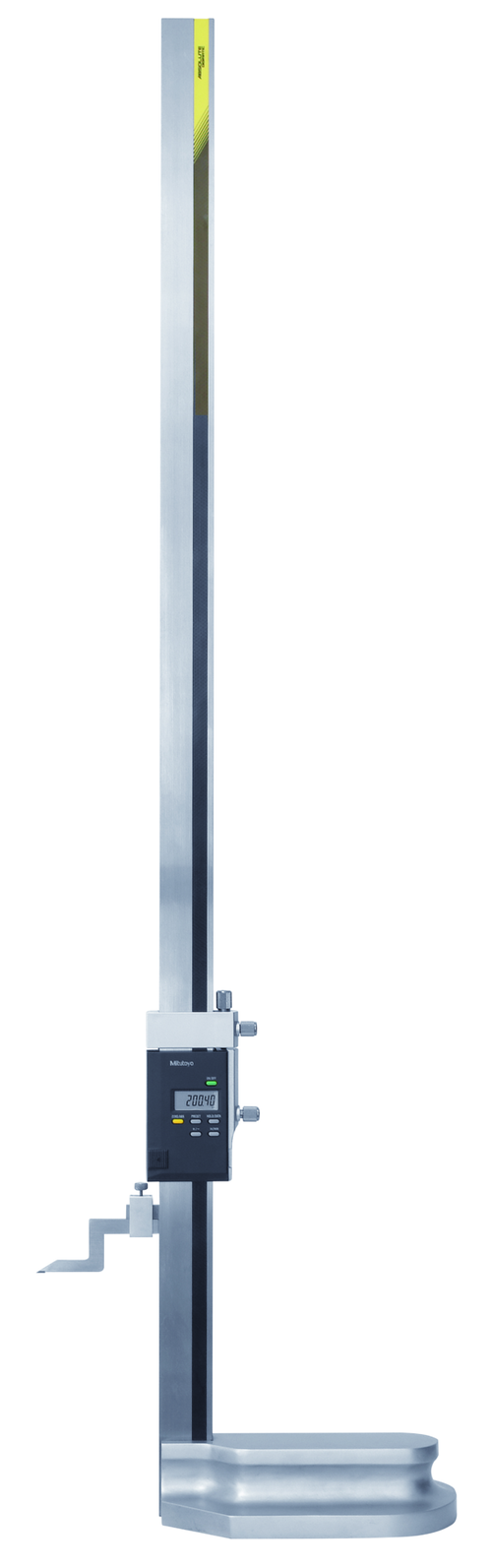

Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248
Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248
Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248
Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248
Roll over image to zoom in Click on image to zoom
Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248

Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248

Mitutoyo SKU: 570-248
List price: €3,650.00 Offer price: €2,665.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Height Gauge Scriber 900258 Carbide Tipped Scriber Carbide Tipped Scriber 6,35x12,7mm, 60mm Length
Part number: 900258  → View product
Mitutoyo 900322 SWIVEL CLAMP USED WITH HOLDING BAR
Part number: 900322  → View product
Mitutoyo 901385 Scriber Clamp for inch Scriber
Part number: 901385  → View product
Mitutoyo Holding Bar for Swivel Clamp .25" x .5", 2" Length Item number: 953639
Part number: 953639  → View product
U-WAVE Fit, IP67 Type Wireless Transmitter for Caliper 264-620
Part number: 264-620  → View product
U-WAVE Fit, Buzzer Type Wireless Transmitter for Caliper 264-621
Part number: 264-621  → View product
U-WAVE Fit Bluetooth, IP67 Type Wireless Transmitter for Caliper 264-624
Part number: 264-624  → View product
U-WAVE Fit Bluetooth, Buzzer Type Wireless Transmitter for Caliper 264-625
Part number: 264-625  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905338
Part number: 905338  → View product
Mitutoyo Digimatic Cable, Flat Straight Type 905409
Part number: 905409  → View product
U-WAVE-T, Buzzer Type Wireless Transmitter 02AZD880G
Part number: 02AZD880G  → View product
U-WAVE Connection Cable F Flat Straight Type 02AZD790F
Part number: 02AZD790F  → View product
U-WAVE-T, IP67 Type Wireless Transmitter 02AZD730G
Part number: 02AZD730G  → View product
USB Input Tool Direct (Digimatic USB) 06AFM380F
Part number: 06AFM380F  → View product
USB Input Tool Interface Box 264-020
Part number: 264-020  → View product
Statistic Processing Printer DP-1VA Data Printer and Logger BS Type 264-505E
Part number: 264-505E  → View product
Mitutoyo 938882 SR44 Battery
Part number: 938882  → View productCurrently unavailable
A Mitutoyo digital height gauge with fine adjustment. ABSOLUTE linear encoder eliminates overspeed errors. SPC data output.

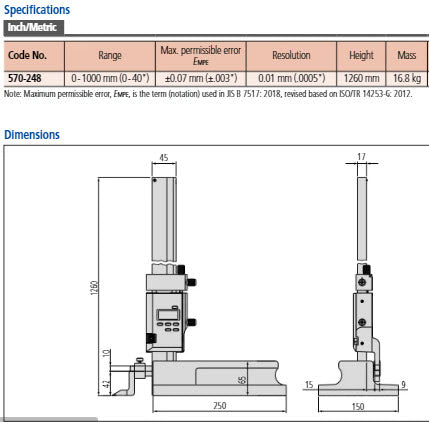

Specification
Digital/Analogue:
Digital
Delivered:
In a carton box, with a carbide-tipped scriber, scriber clamp, SR44 battery
Range:
0 - 40 "/0-1000mm
Digital step:
0,0005"/0,01 mm
Max. Permissible Error E MPE:
±0,003"/±0,07 mm
Max.
Permissible Error
J MPE:
±0,07 mm/0.003"
Scale:
ABSOLUTE electrostatic linear encoder
Display:
LCD, 6-digit
Max. response speed:
Unlimited
ON/OFF:
Yes
ABS / INC (INC ZERO):
Yes
PRESET:
Yes
ORIGIN (ABS-Zero):
Yes
DATA (output with cable) / HOLD (display value):
Yes
Low voltage alarm:
Yes
±SWITCHING:
Yes
Inch-Metric:
Inch/Metric
Delivered:
Including 1 battery, scriber and scriber holder
Power supply:
1 battery SR-44
Battery life:
approx. 5000 hours
Mass:
16.8 kg

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Digital ABS Height Gauge 0-40"/1000mm, Inch/Metric 570-248 Click to open the PDF document
