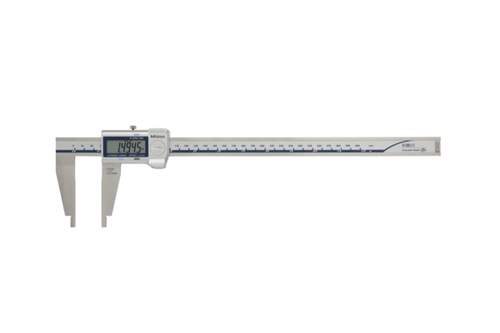

Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20
Roll over image to zoom in Click on image to zoom
Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20

Mitutoyo Digital ABS Caliper, Nib Style Jaws IP67 Inch/Metric, 0-12"/0-300mm 550-341-20

Mitutoyo SKU: 550-341-20
List price: €599.00 Offer price: €419.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

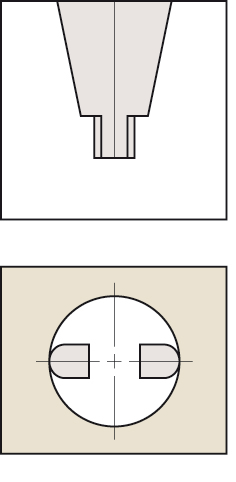

This is a Digimatic caliper with nib-style jaws that lets you measure inside dimensions.
It offers you the following benefits:
  • Rounded measuring surfaces enable you to measure inside
    dimensions.
  • ABSOLUTE System delivers reliable measurements.

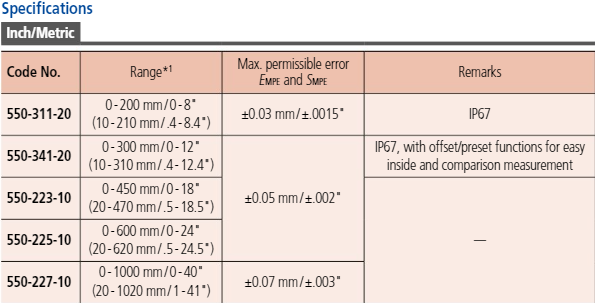

Specification
Delivered:
In a box with SR44 battery
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Inside measuring from:
0.404"/10.26 mm
Max. Permissible Error E MPE:
±0.002"
Max. Permissible Error S MPE:
±0.002"
OFFSET:
0.4"
Mass:
365 g
Digital step:
0,0005"/0,01 mm
Max. response speed:
Unlimited
Display:
LCD, character height 9 mm (200 mm) 11 mm (300 mm) 10 mm (>300 mm)
Remarks:
IP67
Delivered:
In a case, including 1 SR-44 battery
Battery life:
Approx. 5 years, 3,5 years (>300 mm)
ORIGIN (ABS-Zero):
Yes
PRESET:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Data output:
Yes

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
