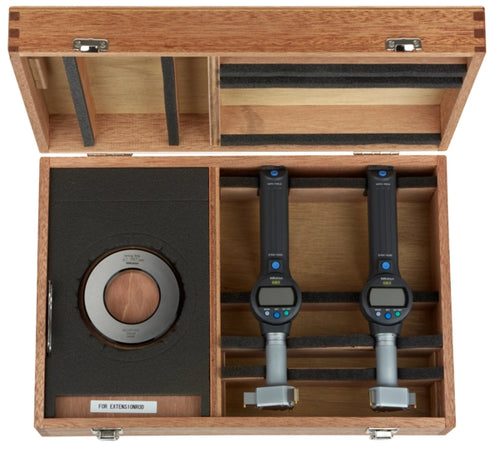

This is a Three-Point Digimatic Snap Open Bore Gauge Set with a display unit for each measuring head.
It offers you the following benefits:

  • It enables you to take measurements easily and quickly.
  • Titanium-coated measuring pins gives you excellent durability and impact resistance.
  • 330° rotatable display unit also gives you easy reading at any
    angle.
  • GO/NG tolerance judgement function.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
2 - 3 "
Digital step:
0,00005" / 0,001 mm
Individual ranges:
2-2.5"
2.5-3"
Display:
LCD, character height: 11 mm
Measuring face:
Titanium coated hardened steel
taper: tungsten carbide
Measuring method:
3-point
Setting rings included:
Ø2.5" (177-315)
Power supply:
1 battery SR-44
Battery life:
approx. 5000 hours
Delivered:
Including box, key, 1 battery, certificate of inspection
ABS / INC (INC ZERO):
Yes
ON/OFF:
Yes
Function lock:
Yes
DATA (output with cable) / HOLD (display value):
Yes
2 x PRESET:
Yes
Delivered:
In a box with SR44 battery, spanner 04GAA858 (2 pcs.), setting ring (1 pcs.)
Data output:
Yes
GO/±NG judgement:
Yes
Mass:
1490 g
