Digital ABS Borematic (Internal) Inch/Metric, 50.8-101.6/2-4", Interchangeable heads Set 568-936

Mitutoyo SKU: 568-936
List price: €5,035.00 Offer price: €3,745.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

The Mitutoyo 568 Series ABSOLUTE Digimatic Borematic Snap-Open Interchangeable-Head Bore Gauge Set contains a variety of Bore Gauges that have snap-type digital display and an are inside-diameter measuring instruments that allows easy and speedy measurement by lever operation. Their titanium-coated measuring pins provide excellent durability, impact resistance and allow the instrement to measure right to the bottom of a blind hole. The ABSOLUTE linear encoder eliminates overspeed errors and the 330° rotatable diaplay unit is for easy reading at any angle.

Features & Benefits

  • Range 50.8-101.6mm/2-4"
  • A snap-type digital display, inside-diameter measuring allows easy and speedy measurement by lever operation.
  • Titanium-coated measuring pins provide excellent durability and impact resistance and allow the instrement to measure right to the bottom of a blind hole.
  • The ABSOLUTE linear encoder eliminates overspeed errors.
  • Dial HOLD function buttons, optimally located, enable high operability.
  • 330° rotatable display unit for easy reading at any angle.

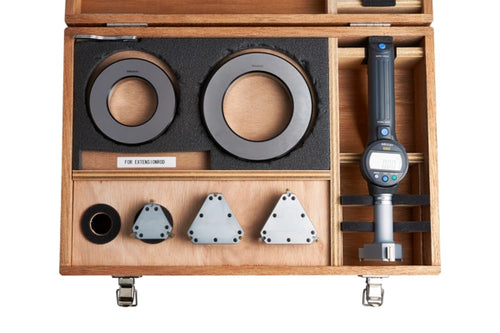

This is a Three-Point Digimatic Snap Open Bore Gauge Set with one display unit and interchangeable heads.
It offers you the following benefits:

  • It enables you to take measurements easily and quickly.
  • Titanium-coated measuring pins gives you excellent durability and impact resistance.
  • 330° rotatable display unit also gives you easy reading at any
    angle.
  • GO/NG tolerance judgement function.

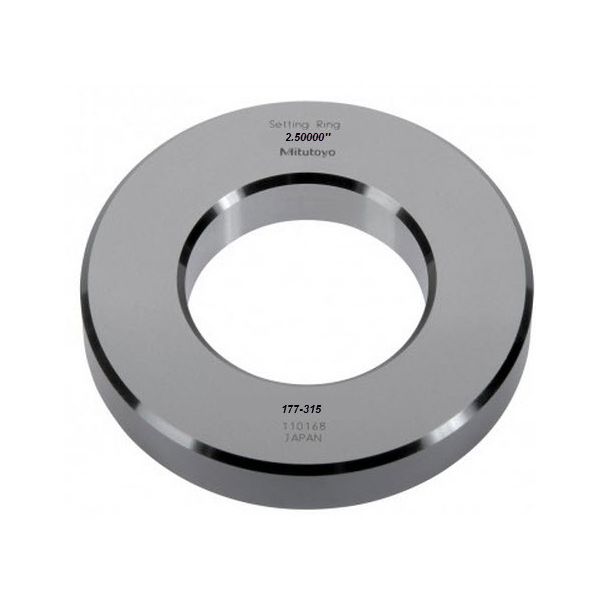

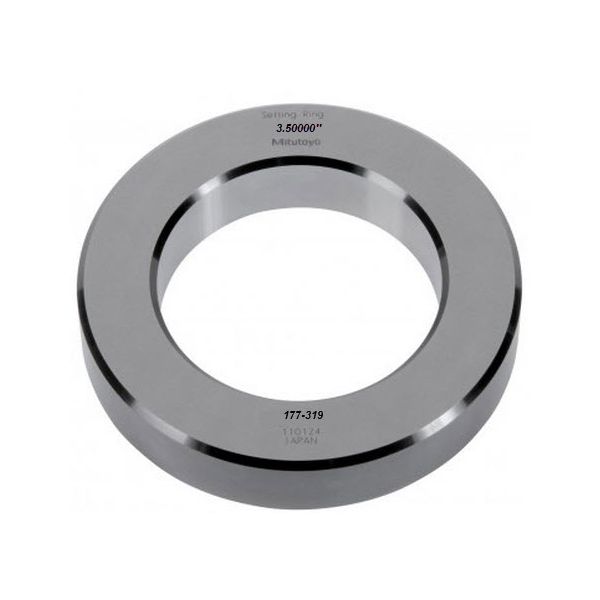

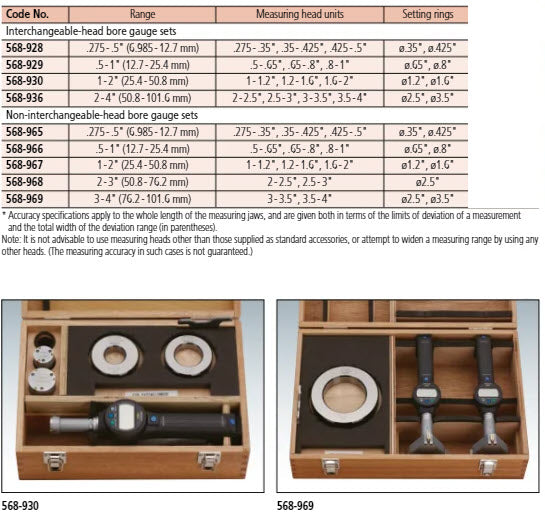

SpecificationDigital/Analog:DigitalInch-Metric:Inch/MetricRange:2 - 4"Digital step:0,00005" / 0,001 mmIndividual ranges:2-2.5"2.5-3"3-3.5"3.5-4"Display:LCD, character height: 11 mmMeasuring face:Titanium coated hardened steeltaper: tungsten carbideMeasuring method:3-pointSetting rings included:Ø2.5" (177-315)Ø3.5" (177-319)Power supply:1 battery SR-44Battery life:Approx. 5000 hoursDelivered:Including box, key, 1 battery, certificate of inspectionABS / INC (INC ZERO):YesON/OFF:YesFunction lock:YesDATA (output with cable) / HOLD (display value):Yes2 x PRESET:YesDelivered:In a box with SR44 battery, spanner 04GAA858 (2 pcs.), setting rings (2 pcs.)Data output:YesGO/±NG judgement:YesMass:1850g

Application information will be added shortly.
