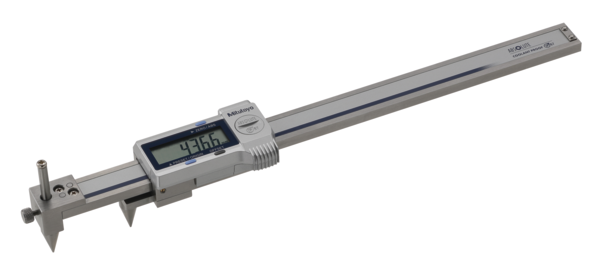

Mitutoyo Digital ABS Back-Jaw Caliper, IP67 10,1-200mm, Center/Center 573-716-20

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital ABS Back-Jaw Caliper, IP67 10,1-200mm, Center/Center 573-716-20

Name: Mitutoyo Digital ABS Back-Jaw Caliper, IP67 10,1-200mm, Center/Center 573-716-20
Brand: Mitutoyo
SKU: 573-716-20
Price: 1148.0 EUR
Availability: InStock

MitutoyoSKU: 573-716-20

Price:

€1,148.00 €1,530.12

Quantity:

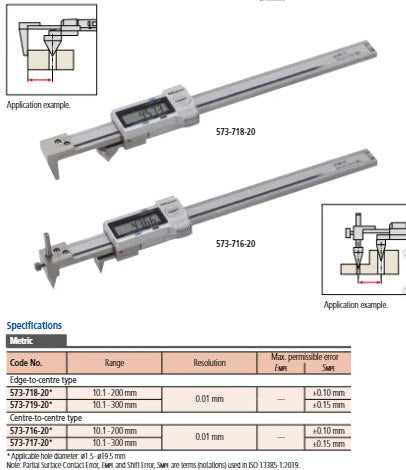

The ABSOLUTE Digimatic back-jaw centreline calipers offer you the following benefits:

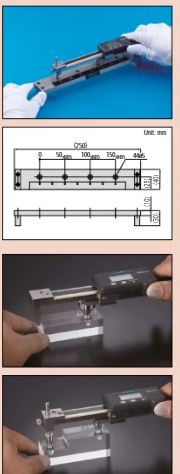

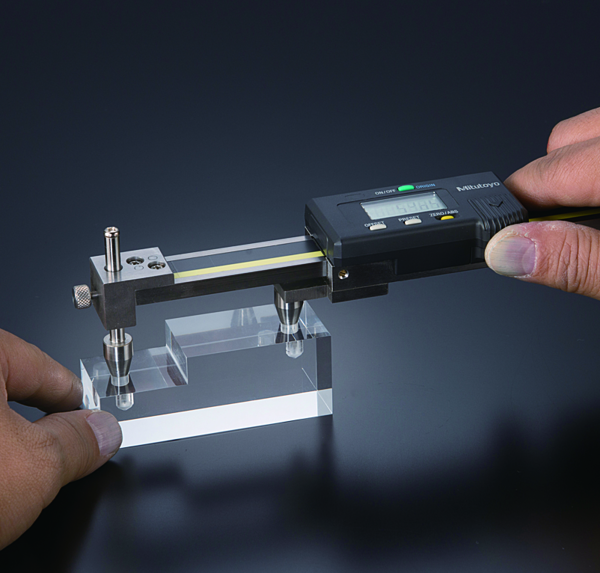

Specially designed to allow you to measure hole centre-to-centre or
edge-to-centre distances.
You can read measurements more easily from above, thanks to the jaws being on the back of the slide.
Direct reading of pitch measurements is also available due to the offset value setting function.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	573-716-20
Measuring Range	10-200mm
Resolution	.01mm
Accuracy	["±.1mm"]
Unit of Measurement	Metric
Data Output	Yes
IP Rating	["IP67"]
Type	Centre-Line
Thumb Roller	No
Depth Rod	None

Delivered:	In a box with SR44 battery
Range:	10.1 - 200 mm
Max. Permissible Error S MPE:	±0,1 mm
Digital step:	0,01 mm
Max. response speed:	Unlimited
ORIGIN (ABS-Zero):	Yes
OFFSET:	10 mm
ABS / INC (INC ZERO):	Yes
Low voltage alarm:	Yes
Data output:	Yes
Battery life:	Approx. 5 years under normal use
Mass:	465 g
