Digital Precision Micrometer 0815

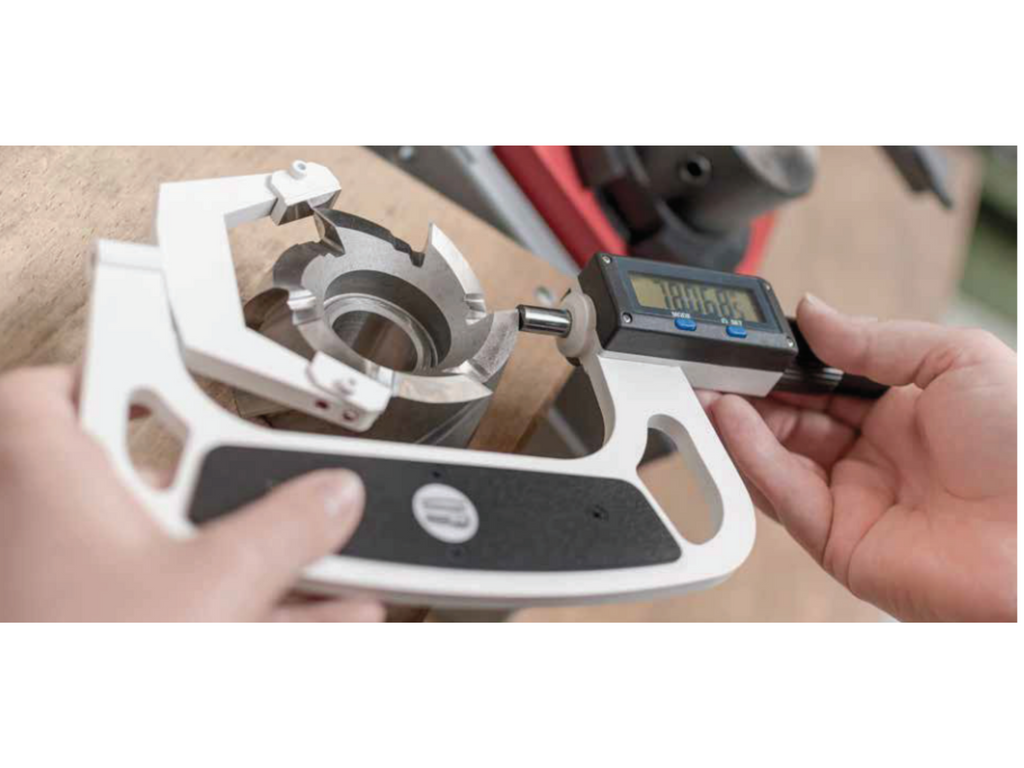

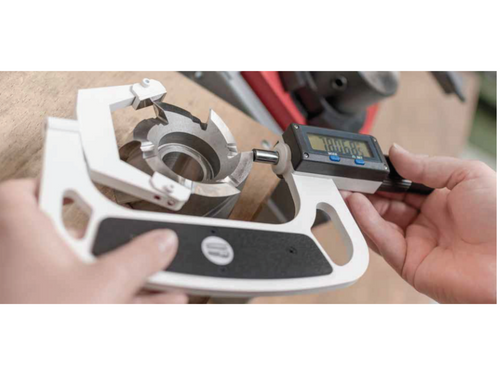

Digital micrometer 0815 to measure workpieces having odd-numbered slots
View Product Data Sheet
- For 3- and 9-slotted workpieces and tools
- Error limits according DIN 863
- Linear measuring system, directly within Abbe' measuring axis
- (Non-rotating) Floating spindle for high repeat accuracy, 2 mm pitch
- Switchable resolution 0,5 µm, 1 µm & 10 µm
- Protection class IP65
- Inch conversion metric mm / inch
- Interface Proximity (Sylvac) for data transfer to measuring computer, wireless or cable
- Input and savin of PRESET and tolerance values
- Carbide measuring faces, as an option made from CBN to ensure great stability
- Min. / Max-value memory
Technical Data
- Switchable resolution 10 µm, 1 µm, 0,1 µm
- Spindle pitch 2,0 mm
- spindel type non-rotating
- Measuring force by ratchet approx. 7 N
- Measuring surface diameter 8 mm
- Repeatability 0,5 µm
All images are for representation only.
