Mitutoyo Digital 3-Point Internal Micrometer Set 3-4", Complete Unit, IP65, 468-990

Mitutoyo SKU: 468-990
List price: €4,176.00 Offer price: €2,923.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

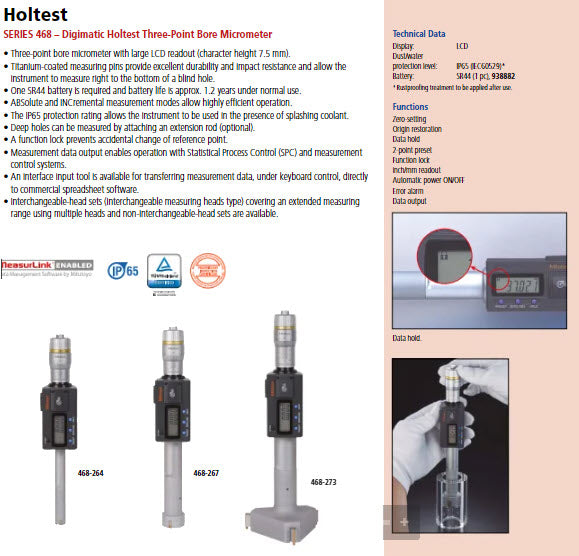

These are three-point internal micrometers that offer you the
following benefits:
  • Complete unit set.
  • Titanium-coated measuring pins give you excellent durability and impact resistance.
  • They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid.
  • Large LCD display with character height of 7.5 mm enables you to read measurements easily.
  • With setting rings but without extensions.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
3 - 4 "
Digital step:
0,001 mm, 0,001 mm/0,00005" (models up to 4")
/ 0,001 mm/0,0001" (models over 5")
Individual ranges:
3-3.5", 3.5-4"
Display:
LCD, character height 7.5 mm
Measuring face:
Titanium coated tungsten carbide
(6-12 mm)
Titanium coated hardened steel
(12-100 mm)
Taper: tungsten carbide
Models included:
468-272 / 468-273
Setting rings included:
ø3.5" (177-319)
Power supply:
1 battery SR-44
Battery life:
Approx. 1.2 years
Delivered:

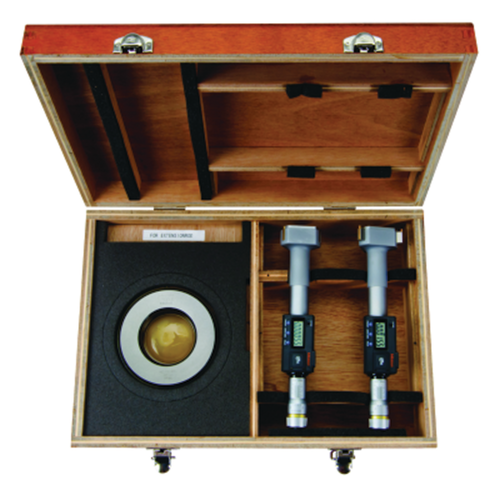

Including box, key, 1 battery, setting ring,
certificate of inspection (inside micrometer only)
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Delivered:
Including box, hex wrench, spanner (2 pcs.), screwdriver, 1 SR44 battery, setting ring (1 pcs.), extension rod, certificate of inspection
Data output:
Yes
Mass:
1990 g

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
