Mitutoyo Digital 3-Point Internal Micrometer Set 2-4", Interchange. Head IP65, 468-979

Mitutoyo SKU: 468-979
Price:
€4,160.00 €5,946.00
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

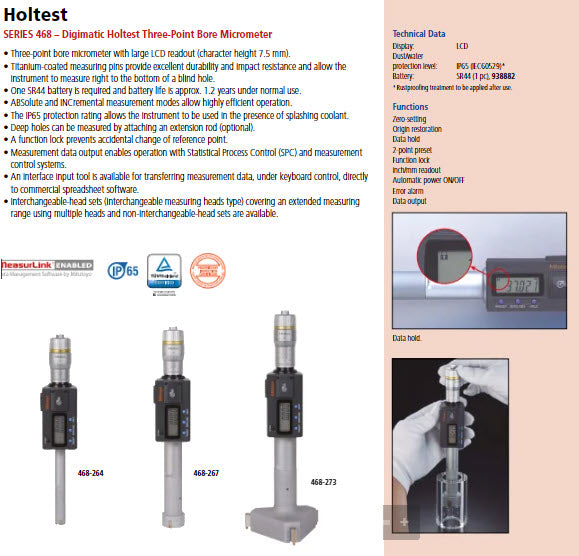

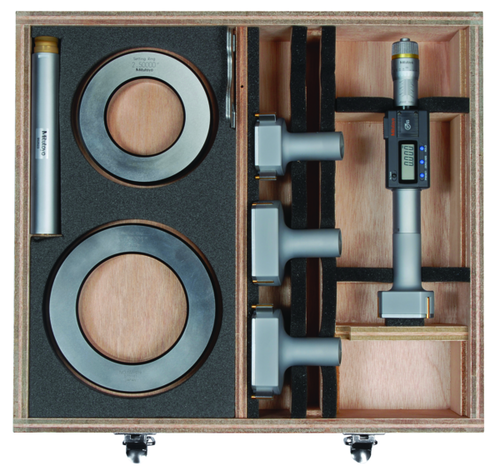

A water-resistant Mitutoyo bore gauge set comprising a digital/analogue display unit with interchangeable measuring heads, the appropriate setting rings, and an extension tube for deep-measuring applications. Suitable for measuring to the bottom of blind holes. Titanium-coated contact faces for enhanced durability. Digimatic data output.
Specification
Digital/Analog:
Digital
Inch-Metric:
Inch/Metric
Range:
2 - 4 "
Digital step:
0,001 mm, 0,001 mm/0,00005" (models up to 4")
/ 0,001 mm/0,0001" (models over 5")
Individual ranges:
2-2.5", 2.5-3", 3-3.5", 3.5-4"
Display:
LCD, character height 7.5 mm
Measuring face:
Titanium coated tungsten carbide (6-12 mm) Titanium coated hardened steel (12-200 mm) Taper: tungsten carbide

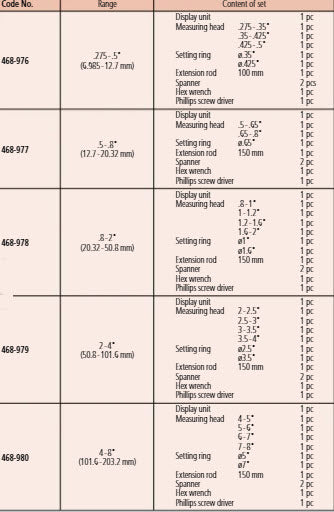

Setting rings included:
ø2.5" (177-315)
ø3.5" (177-319)
Power supply:
1 battery SR-44
Battery life:
Approx. 1.2 years
Remarks:
150 mm extension
Delivered:

Including box, key, 1 battery, setting ring
extension rod, certificate of inspection (inside micrometer only)
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Delivered:
Including box, hex wrench, spanner (2 pcs.), screwdriver, 1 SR44 battery, setting rings (2 pcs.), extension rod, certificate of inspection
Data output:
Yes
Mass:
2420 g
