Mitutoyo Digital 3-Point Internal Micrometer Set 0,5-0,8", Interchange. Head IP65, 468-977

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3-Point Internal Micrometer Set 0,5-0,8", Interchange. Head IP65, 468-977

Name: Mitutoyo Digital 3-Point Internal Micrometer Set 0,5-0,8", Interchange. Head IP65, 468-977
Brand: Mitutoyo
SKU: 468-977
Price: 1551.25 EUR
Availability: InStock

MitutoyoSKU: 468-977

Price:

€1,551.25 €2,125.00

Quantity:

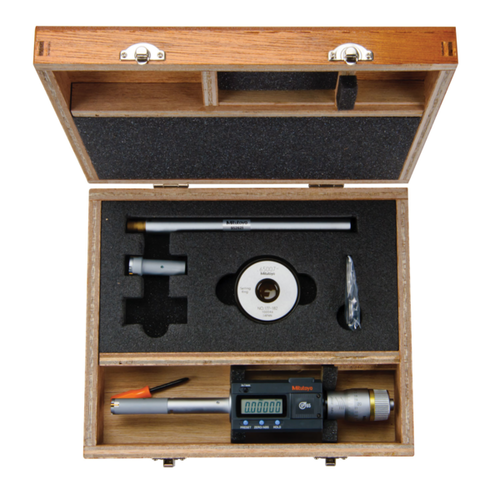

A water-resistant Mitutoyo bore gauge set comprising a digital/analogue display unit with interchangeable measuring heads, the appropriate setting rings, and an extension tube for deep-measuring applications. Suitable for measuring to the bottom of blind holes. Titanium-coated contact faces for enhanced durability. Digimatic data output.

Specification

Digital/Analog:	Digital
Inch-Metric:	Inch/Metric
Range:	0,275 - 0,5 "
Digital step:	0,001 mm, 0,001 mm/0,00005" (models up to 4") / 0,001 mm/0,0001" (models over 5")
Individual ranges:	0.275-0.35", 0.35-0.425", 0.425-0.5"
Display:	LCD, character height 7.5 mm
Measuring face:	Titanium coated tungsten carbide (6-12 mm) Titanium coated hardened steel (12-200 mm) Taper: tungsten carbide
Setting rings included:	ø0.35" (177-179) ø0.425" (177-283)
Power supply:	1 battery SR-44
Battery life:	Approx. 1.2 years
Remarks:	100 mm extension
Delivered:	Including box, key, 1 battery, setting ring extension rod, certificate of inspection (inside micrometer only)
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Delivered:	Including box, hex wrench, spanner (2 pcs.), screwdriver, 1 SR44 battery, setting rings (2 pcs.), extension rod, certificate of inspection
Data output:	Yes
Mass:	420 g

Product Information
Part Number	468-977
Measuring Range	0.500-0.800"
Resolution	.001mm/.00005"
Accuracy	["±2µm/.0001\""]
Accuracy	+/-.002mm/.0001"
Unit of Measurement	Inch
Display Type	Digital
Data Output	Yes
IP Rating	["IP65"]
Graduation on Thimble	.0002"
2 & 3 Point Micrometer Range	12.7-20.32mm/.5-.8"
Setting Rings	Ø.65"
Calibration Code	CAL11 B1
