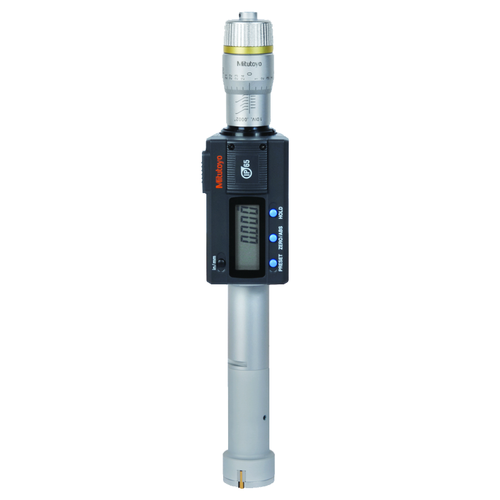

Mitutoyo Digital 3-Point Internal Micrometer 30.48-40.64mm/1.2-1.6″ 468-268

Mitutoyo SKU: 468-268
List price: €1,470.00 Offer price: €1,029.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
Add your Gauge ID, asset/serial number, company name, logo or QR code.
Continue comparing alternatives

Return to the original comparison menu to review another equivalent product. Your selected sorting order will be preserved.

← Back to the full alternatives menu

Description

These are three-point internal micrometers that offer you the following benefits:

  • Individual micrometer
  • Titanium-coated measuring pins give you excellent durability and impact resistance
  • They also have excellent resistance against water and dust (IP65 protection level), allowing you to use this product in machining situations that include splashing coolant fluid
  • Large LCD display with character height of 7.5 mm enables you to read measurements easily
  • Setting rings and extensions available separately – Extension rod: 952622

Bore Gauge Features

  • Range: 30.48-40.64mm (1.2-1.6″)
  • Resolution: 0.001mm (0.00005″)
  • Accuracy: ± 0.003mm (0.00015″)

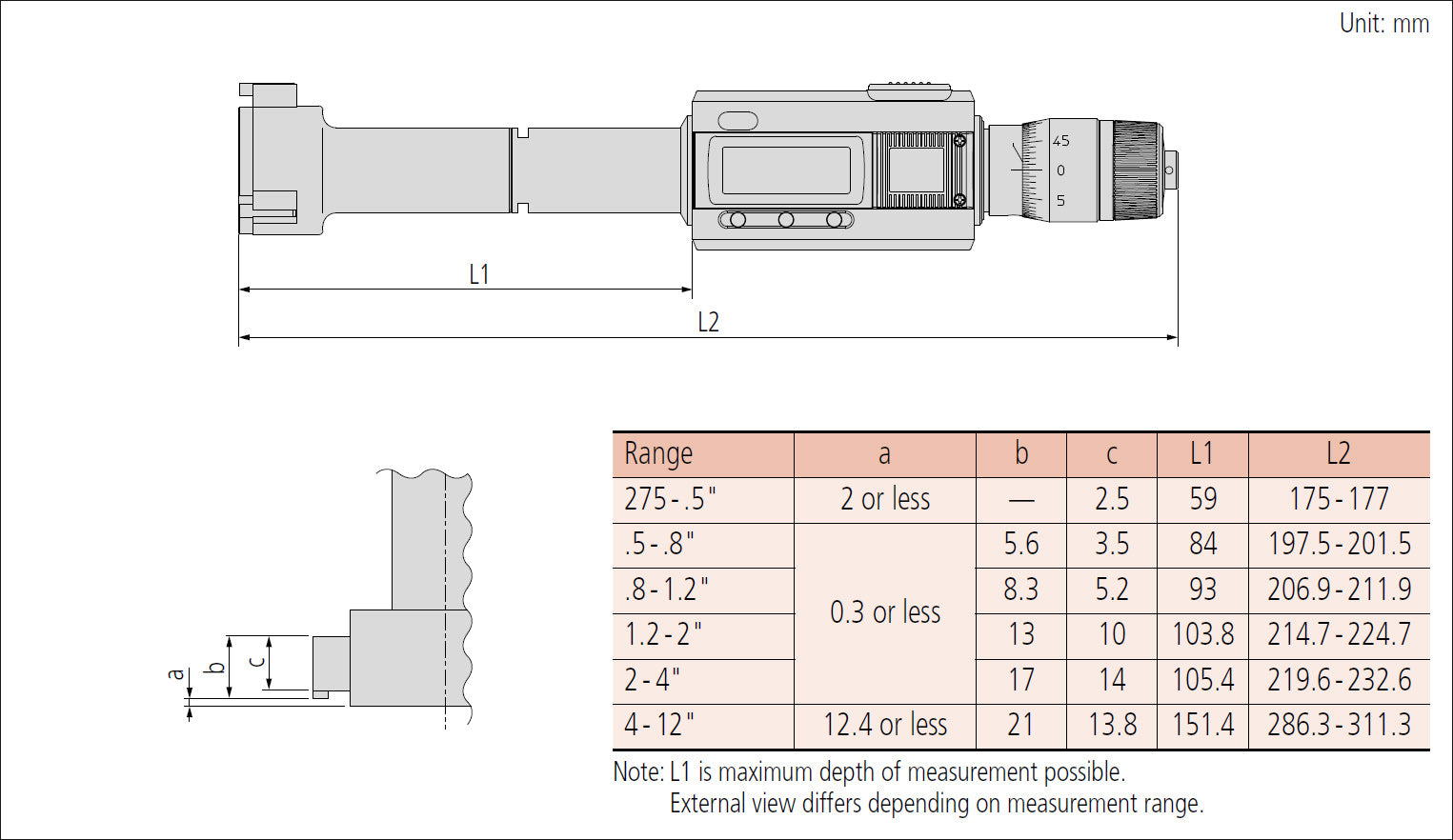

  • Measuring depth: 103.8mm (4.08″)
  • Measuring face: Titanium-coated tungsten carbide
  • ABSOLUTE & incremental modes
  • IP65: High level of protection against liquid and dust ingress

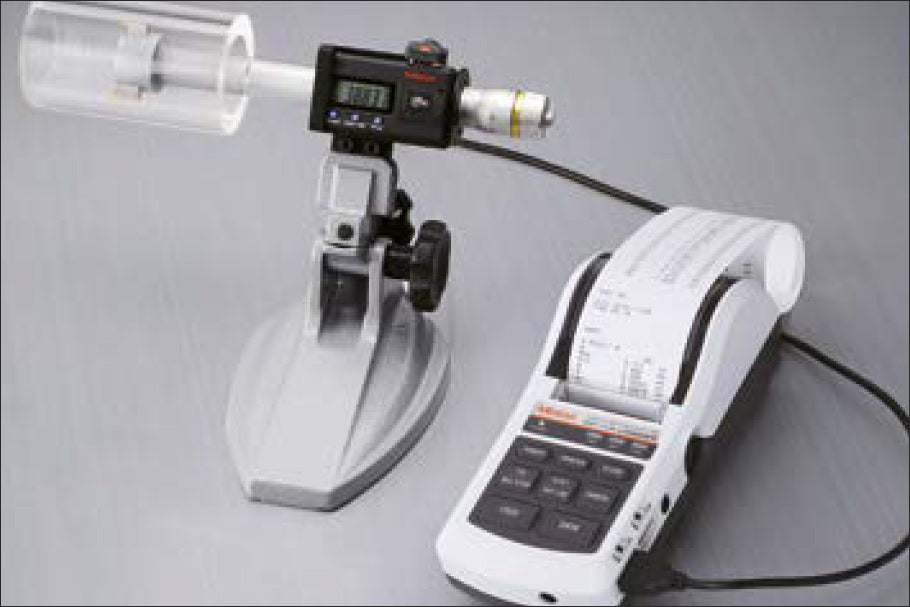

  • Data Output

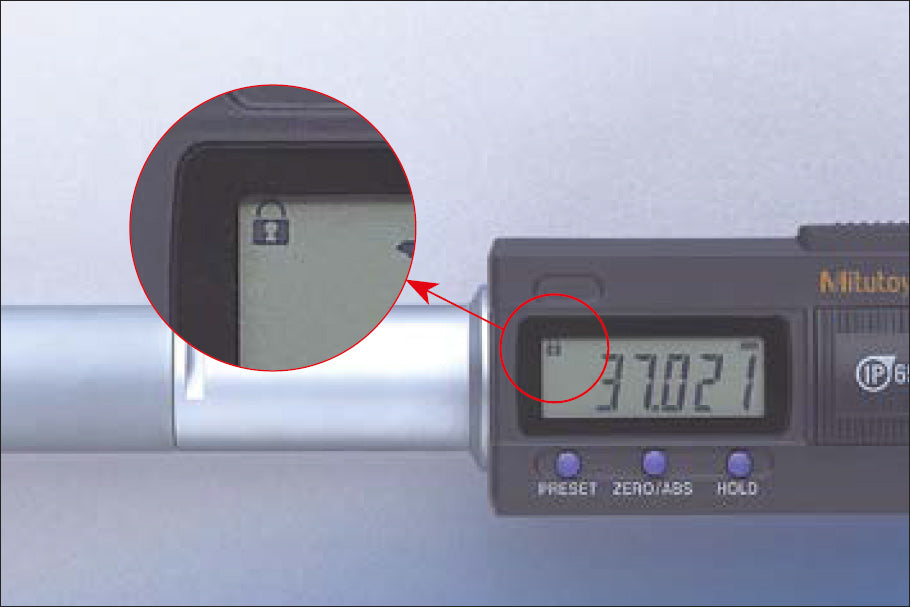

  • Data hold
  • Zero-setting
  • 2 x Preset

All images are for representation only.

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
