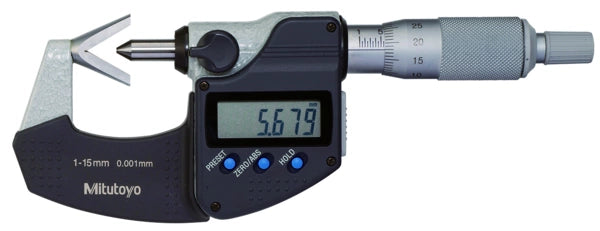

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm, with Groove 314-252-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm, with Groove 314-252-30

Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm, with Groove 314-252-30
Brand: Mitutoyo
SKU: 314-252-30
Price: 761.0 EUR
Availability: InStock

MitutoyoSKU: 314-252-30

Price:

€761.00 €1,014.46

Quantity:

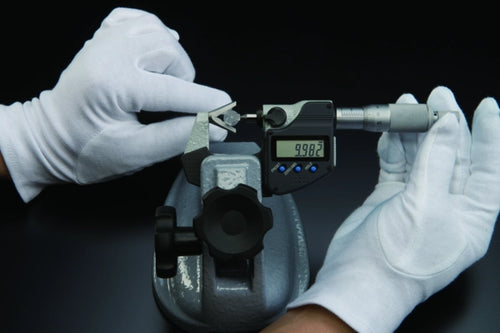

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.
V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

Features

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Metric
Range:	1 - 15 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	With groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-327 ø 5 mm
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	275 g

Product Information
Part Number	314-252-30
Measuring Range	10-25mm
Unit of Measurement	Metric
Type	V-Anvil
Calibration Code	CAL9 B1

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm, with Groove 314-252-30
