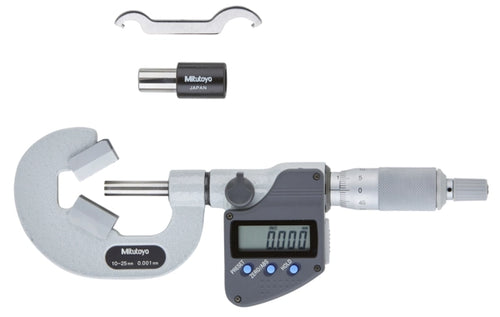

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30

Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 10-25mm 314-262-30
Brand: Mitutoyo
SKU: 314-262-30
Price: 770.15 EUR
Availability: InStock

MitutoyoSKU: 314-262-30

Price:

€770.15 €1,055.00

Quantity:

Features

Digital/Analog:	Digital
Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Metric
Range:	10 - 25 mm
Digital step:	0,001 mm
Max. Permissible Error J MPE:	±4 µm
Anvil:	Without groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-328 ø 10 mm
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	410 g

Product Information
Part Number	314-262-30
Measuring Range	10-25mm
Unit of Measurement	Metric
Type	V-Anvil
Calibration Code	CAL9 B1
