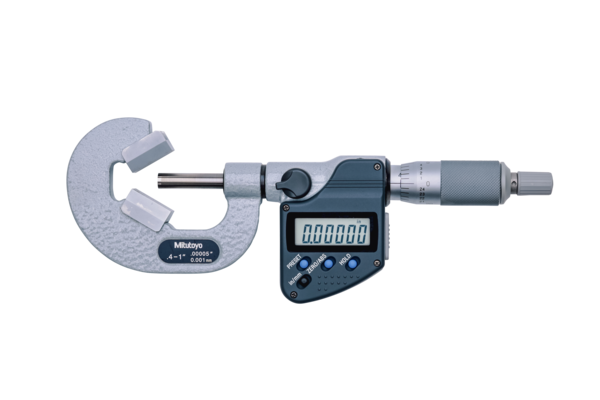

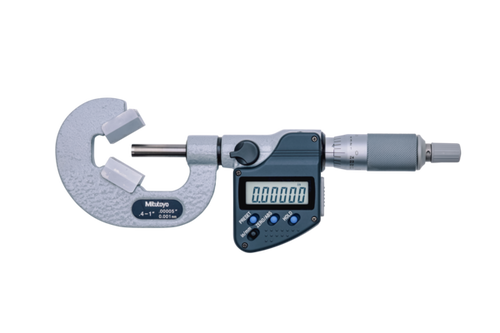

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10.16-25.4mm/0,4-1" 314-362-30 Without grooves

Roll over image to zoom in Click on image to zoom

Mitutoyo Digital 3 Flute V-Anvil Micrometer 10.16-25.4mm/0,4-1" 314-362-30 Without grooves

Name: Mitutoyo Digital 3 Flute V-Anvil Micrometer 10.16-25.4mm/0,4-1" 314-362-30 Without grooves
Brand: Mitutoyo
SKU: 314-362-30
Price: 768.33 EUR
Availability: InStock

MitutoyoSKU: 314-362-30

Price:

€768.33 €1,052.50

Quantity:

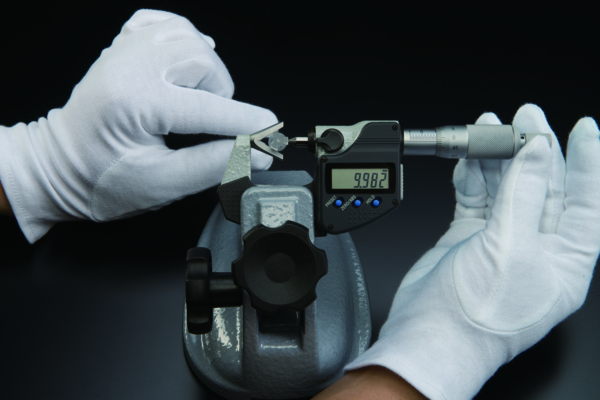

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

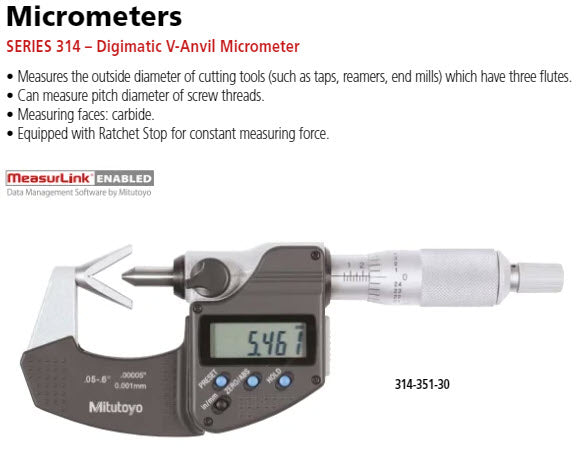

It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.

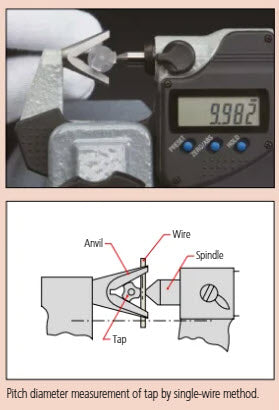

V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

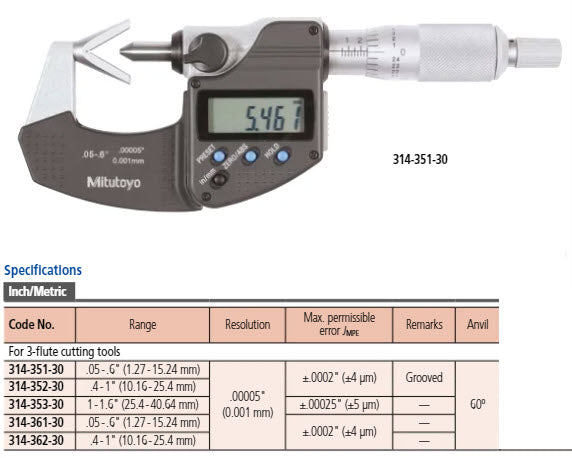

Specification

Digital/Analog:	Digital

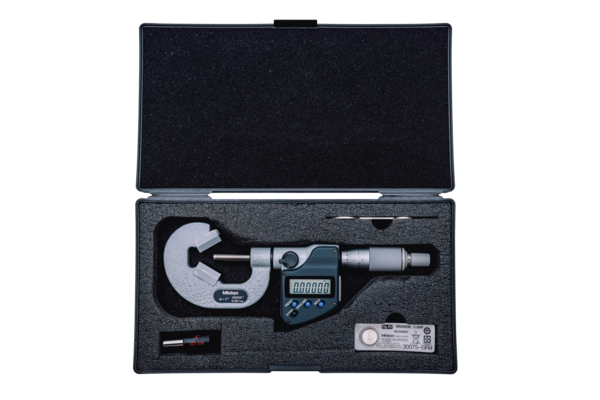

Delivered:	Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:	Inch/Metric
Range:	0,4 - 1 "
Digital step:	0,00005"/0,001 mm
Max. Permissible Error J MPE:	±0,0002"
Anvil:	Without groove
Display:	LCD, character height 7.5 mm
Measuring face:	Prism angle 60°
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Power supply:	1 battery SR-44
Battery life:	Approx. 2.4 years
Setting standard:	167-338 ø 0.4"
Delivered:	Including box, setting standard, key, 1 battery
ABS / INC (INC ZERO):	Yes
Auto Power OFF after 20 min. non use:	Yes
Low voltage alarm:	Yes
Function lock:	Yes
HOLD:	Yes
2 x PRESET:	Yes
Mass:	410 g

Product Information
Part Number	314-362-30
Measuring Range	10.16-25.4mm
Resolution	.001mm/.00005"
Accuracy	["±.004mm/.0002\""]
Accuracy	+/.004mm/.0002"
Unit of Measurement	Metric Inch
Display Type	Digital
Data Output	Yes
Measuring Force	5-10N
Type	V-Anvil
Graduation on Thimble	.01mm
Constant Force Device	Ratchet Stop

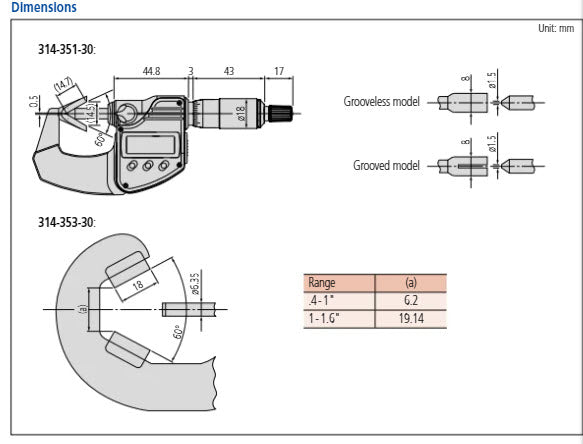

Anvils & Spindle Design	Anvil is 60 Degrees
Calibration Code	CAL9 B1
