Mitutoyo SKU: 314-361-30
List price: €927.00 Offer price: €718.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

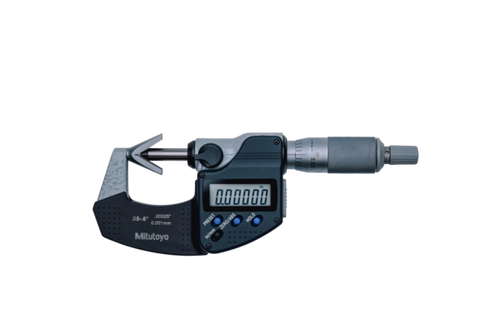

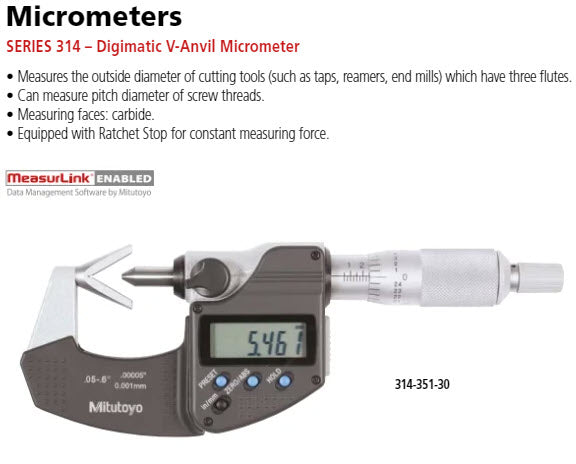

This Digimatic V-Anvil Micrometer helps you to measure cutting tools and taps.
It offers the following benefits:

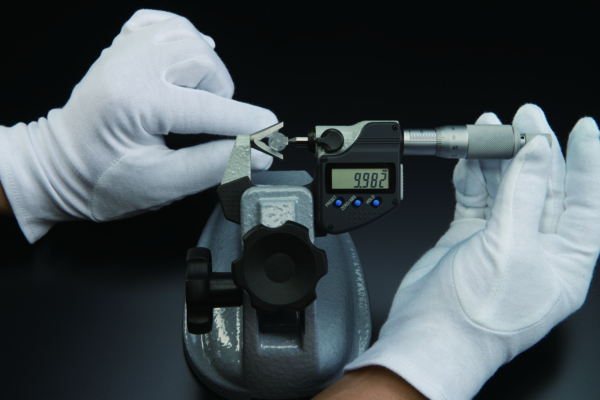

  • It measures the outside diameter of cutting tools (such as taps, reamers, end mills) which have three flutes.

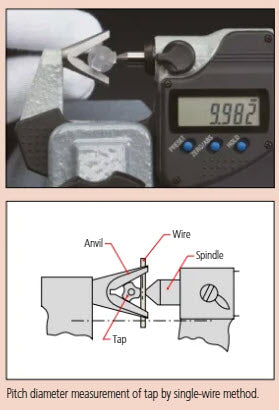

  • V-anvils with a centreline groove are available for measuring the pitch diameter of taps by the single-wire method.

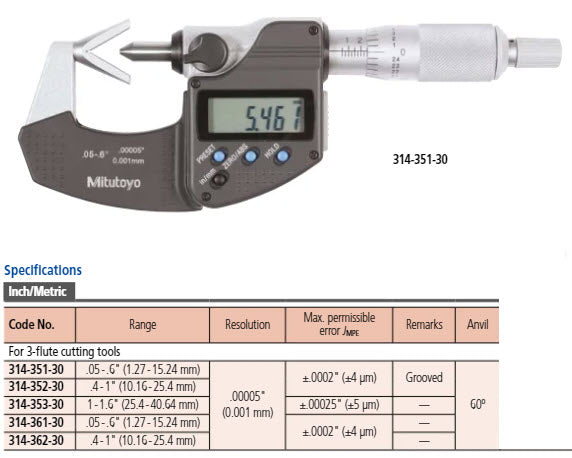

Specification
Digital/Analog:
Digital
Delivered:
Including box, spanner, setting standard, 1 SR44 battery
Inch-Metric:
Inch/Metric
Range:
0,05 - 0,6 "
Digital step:
0,00005"/0,001 mm
Max.
Permissible Error
J MPE:
±0,0002"
Anvil:
Without groove
Display:
LCD, character height 7.5 mm
Measuring face:
Prism angle 60°
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,75 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Power supply:
1 battery SR-44
Battery life:
Approx. 2.4 years
Setting standard:
167-337 ø 0.2"
Delivered:
Including box, setting standard, key, 1 battery
ABS / INC (INC ZERO):
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
2 x PRESET:
Yes
Mass:
275 g

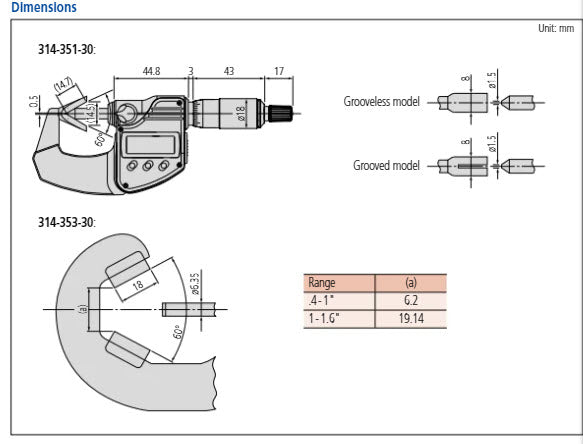

Dimensions

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
