Digit Point Micrometer with Hardened Tip 0-25mm, 30° Tip 142-201

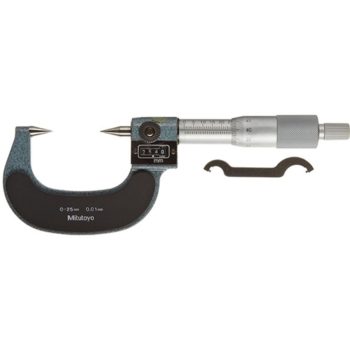

142-201 Mitutoyo 30° Mechanical Counter Point Micrometer: 0-25mm

The Mitutoyo 142-201 Mechanical Counter Point Micrometer has the following specifications:

• Range: 0-25mm
• Graduations: 0.01mm
• Accuracy: +/- .003mm
• Point: 30°
• Mass(g): 260g

Features:

• Available in Metric and Inch models
• Points are constructed of hardened steel or carbide depending on the model
• Ratchet mechanism provides an audible click to ensure measurement is being performed at a constant pre-set force
• A spindle lock provides secure locking of the measurement position for easier recording
• Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
• Frame is constructed of high-grade steel and has a baked enamel finish for durability
• Supplied in fitted plastic case

The Mitutoyo 142-201 mechanical counter point micrometer utilizes pointed tips on the anvil and spindle to measure small grooves, keyways and other, difficult-to-reach areas. Available in inch and metric measurements. The Mitutoyo point micrometer with mechanical counter utilizes pointed anvil and spline tips to measure small groves on parts or workpieces along with keyways. A mechanical digit counter displays readings to .001″ or .01mm for easier viewing among operators. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.

Mitutoyo Mechanical Counter Point Micrometers:

• 142-153  Mechanical Counter Point Micrometer: 0-25mm (15°)
• 142-201 Mechanical Counter Point Micrometer: 0-25mm (30°)

• 142-177  Mechanical Counter Point Micrometer: 0-1″ (15°)
• 142-225 Mechanical Counter Point Micrometer: 0-1″ (30°)
