Mitutoyo Digimatic Interface DMX-3-2 USB 63AAA042
Mitutoyo Digimatic Interface DMX-3-2 USB 63AAA042
Roll over image to zoom in Click on image to zoom
Mitutoyo Digimatic Interface DMX-3-2 USB 63AAA042Mitutoyo Digimatic Interface DMX-3-2 USB 63AAA042

Mitutoyo Digimatic Interface DMX-3-2 USB 63AAA042

Mitutoyo SKU: 63AAA042
List price: €1,859.00 Offer price: €1,441.00 Excluding VAT

These interfaces enable the connection of measuring devices with RS-232C data output (such as the Mitutoyo QM-Data 200 or LH-600) with the USB port of a computer.
The interfaces offer the following benefits:

  • The ability to connect over 70 different measuring instruments with RS232C output, this includes not only Mitutoyo devices but other brands as well (a list is available upon request).
  • The interface converts the different signals from the connected measuring instruments into the same format: keyboard signal (HID).

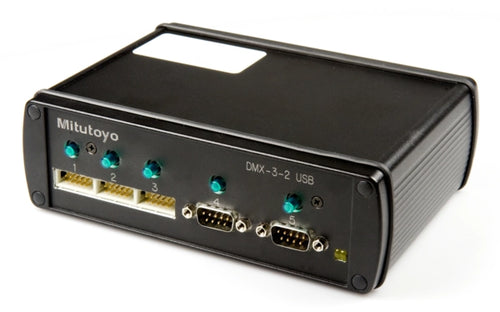

  • The DMX-0-1 USB has one RS-232C input while the DMX-3-2 has two RS-232C inputs and also 3 Digimatic inputs for connecting Mitutoyo handheld measuring devices.
  • The DMX-3-2 additionally has a virtual COM-Port (VCP) with MUX-10 or MUX-50 format.

Features

Data input:
3 x Digimatic
2 x RS-232C

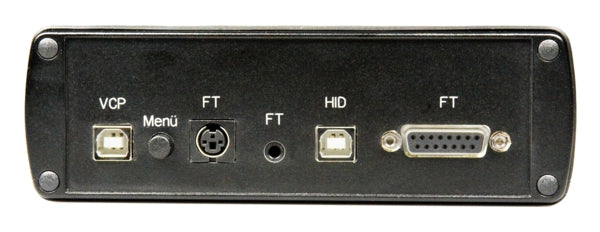

Data output:
USB virtual COM-Port (VCP), USB keyboard signal (HID)
Power supply:
5 V USB
Footswitch connector:
Yes
Interface cable connection:
USB Type B
Baud rate:
9600
Stop bits:
1
Parity:
none
Timer function:
interval 0-99 s or 0-99 min
Mitutoyo measuring instruments with RS232C ouput:
KA-Counter
Protractor Series 950
EH-Counter
Printer DP1-VA
Linear Height LH-600 E/EG
and older LH models
QM-Data 200
Litematic VL-50
Laser Scan Micrometer LSM
QM-Height
MF-Microscope Series
PJ A3000 Projector
PJ H30 Projector
ID-H Indicator
OS compatibility:
Microsoft® Windows® 2000, XP, Vista®, 7, 8, 8.1, 10 (32bit, 64bit), 11
Output decimal mark (HID):
point or comma
Delivered:
In a carton box with USB cable (1,8 m)

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
