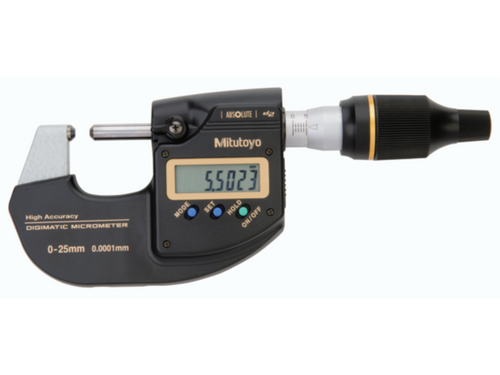

Mitutoyo Digimatic High Accuracy Digital Micrometer 0-25mm(0-1"), With Output 293-130-20

Mitutoyo SKU: 293-130-20
List price: €2,295.00 Offer price: €1,606.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.
This Micrometer enables 0.1 μm resolution measurements and is
ideal for customers who need to make highly accurate measurements with a hand-held tool (such as Gauge R & R analysis).

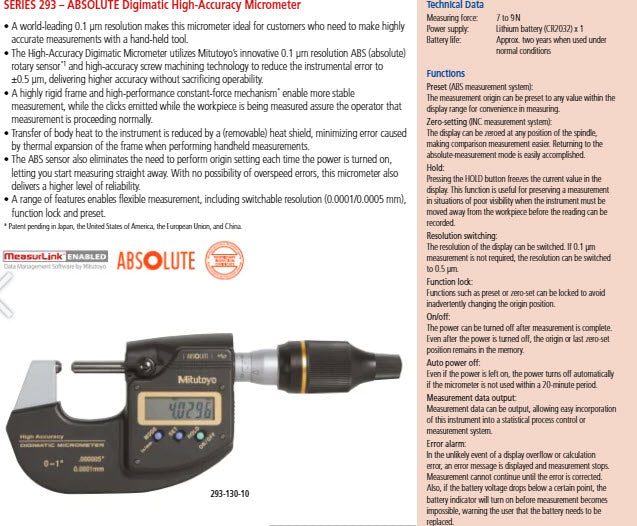

The Absolute High-Accuracy Micrometer offers the following benefits:
  • It delivers higher accuracy without sacrificing operability, by using Mitutoyo‘s innovative 0.1 μm resolution ABS (absolute) rotary
    sensor and high accuracy screw machining technology which
    reduces instrumental error to just 0.5 μm.
  • Its highly rigid frame and high-performance constant-force
    mechanism (7-9 N) enable more stable measurement.
Specification
Delivered:
Including wooden box, spanner 200877, screwdriver 04AAB985, CR2032 battery, cleaning paper, thermally insulating cover 04AAB969B, certificate of inspection
Display:
LCD, character height 7.5 mm
Measuring face:
Carbide-tipped, micro-lap finish, Ø 3.2 mm
Measuring spindle:
With spindle lock, ø 6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish
Measuring force:
7 - 9 N
Power supply:
1 lithium battery CR-2032
Battery life:
Approx. 2 years
ON/OFF:
Yes
Auto Power OFF after 20 min. non use:
Yes
Low voltage alarm:
Yes
Function lock:
Yes
HOLD:
Yes
PRESET:
Yes
Resolution switching:
Yes


Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
