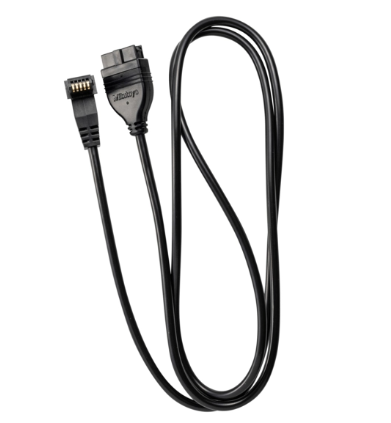

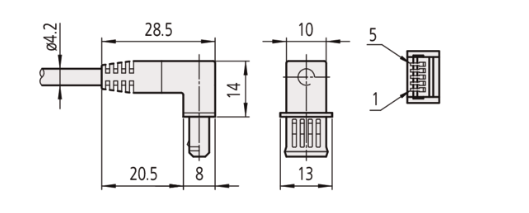

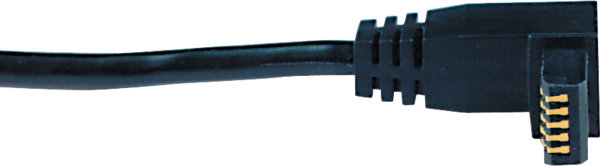

Flat L-Shape Type Rear mount

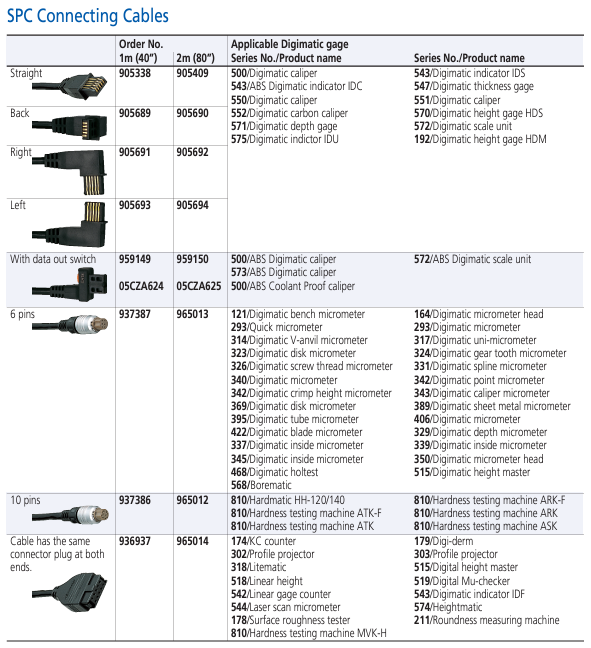

These cables work with the following gauges:
ABSOLUTE DIGIMATIC Dial Indicator IDS/IDC (Series 543)
ABSOLUTE DIGIMATIC Dial Indicator IDU (Series 575)
ABSOLUTE DIGIMATIC Thickness Gauge (Series 547)
DIGIMATIC Workshop Caliper (Series 552)
ABSOLUTE DIGIMATIC Caliper (Series 500 except IP65/66/67 models)
ABSOLUTE DIGIMATIC Caliper (Series 550, 551, 573)
DIGIMATIC Height Gauge (Series 192, 570)
ABSOLUTE DIGIMATIC Depth Gauge (Series 547)
Portable Hardness Tester (Series 811)
ABSOLUTE DIGIMATIC Bore Gauge (Series 511)
ABSOLUTE DIGIMATIC Depth Gauge (Series 571 except IP65/66/67 models)
ABSOLUTE DIGIMATIC Scale (Series 572 except IP65/66/67 models)
ABSOLUTE DIGIMATIC Micrometer Head (Series 164)
