Diavite SKU: KKH-08/10/90/5
Price: €1,488.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?


PDF Brochure

Diavite Tracer KKH with skid, concave/vex surface, 8 mm, 5 µm/90° for VH/VHF, Article code:  KKH-08/10/90/5

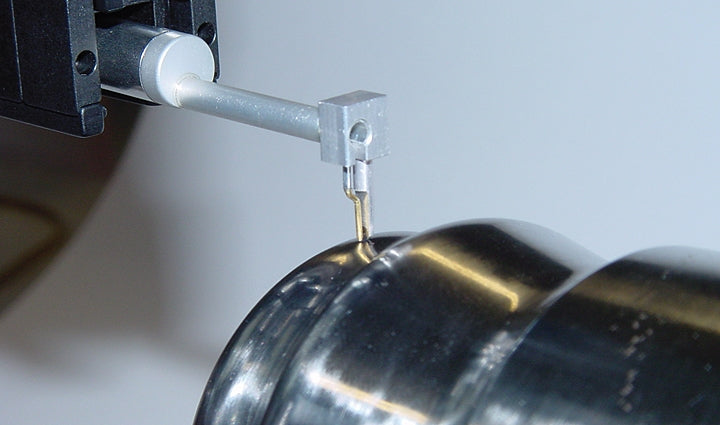

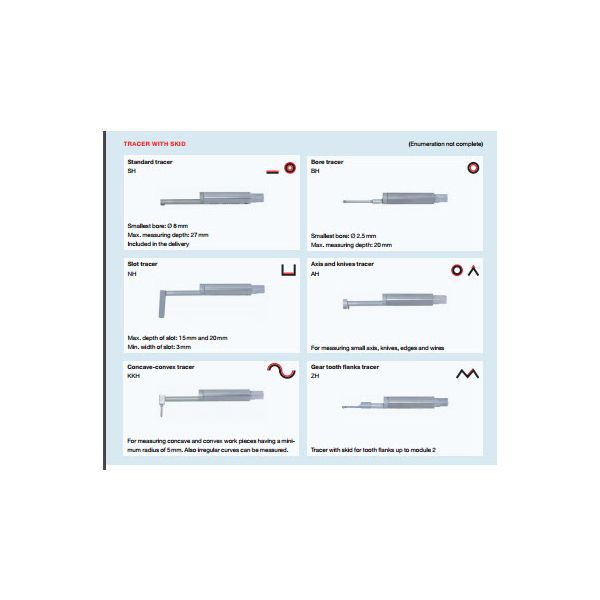

  • tracer for concave and convex parts with a minimum radius of 5 mm
  • irregular curvatures can also be measured
  • the minimum lt and lc must be applied
  • radius of the tip: standard 5 μm
  • radius of skid: r = 1 mm
  • do not use with the advance device down

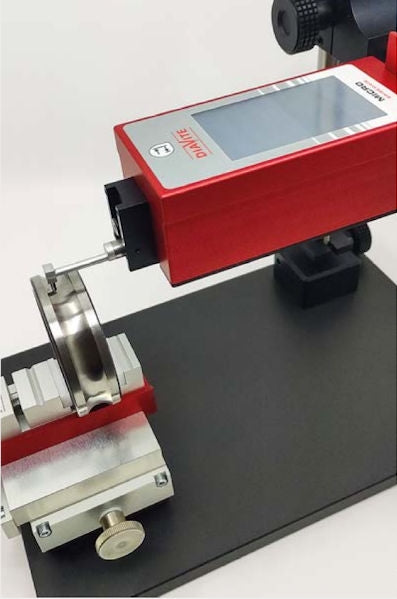

  • the use of a stand for the advance device is strongly advised
