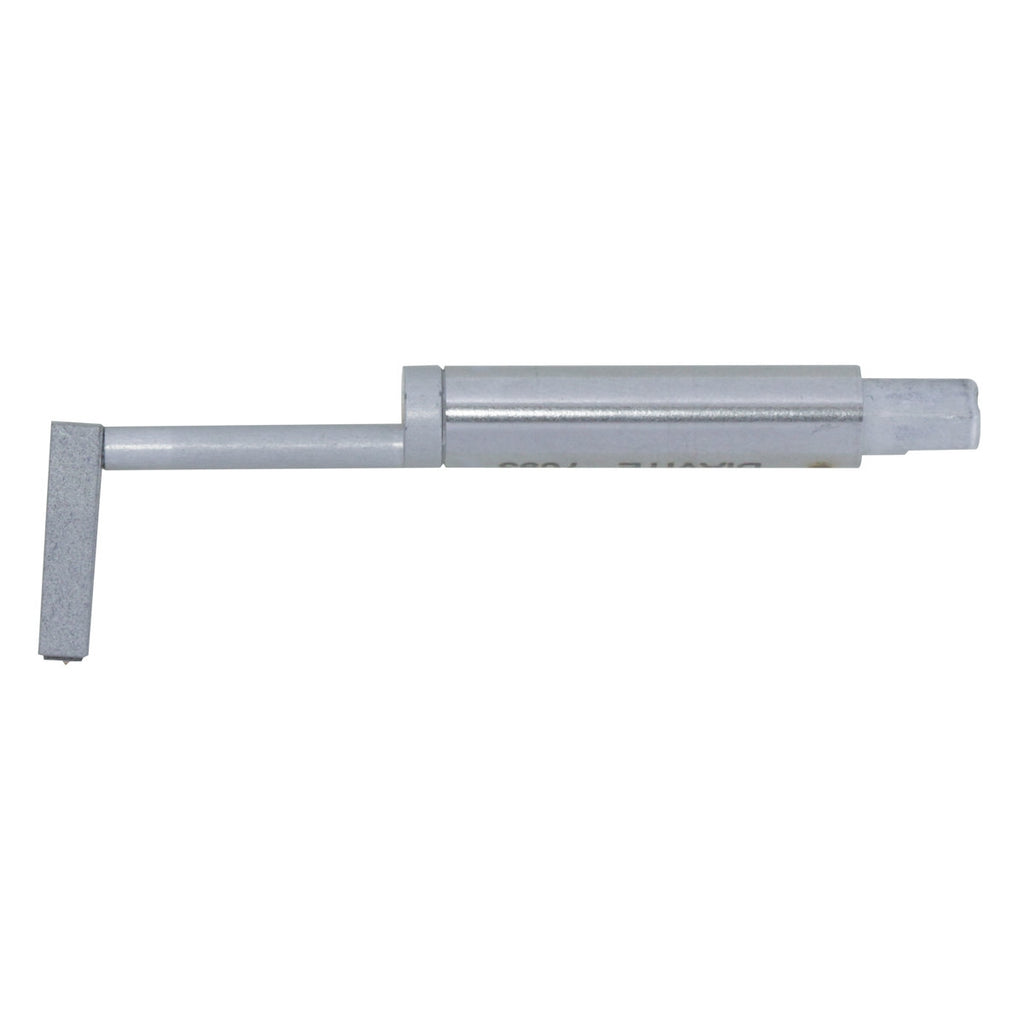

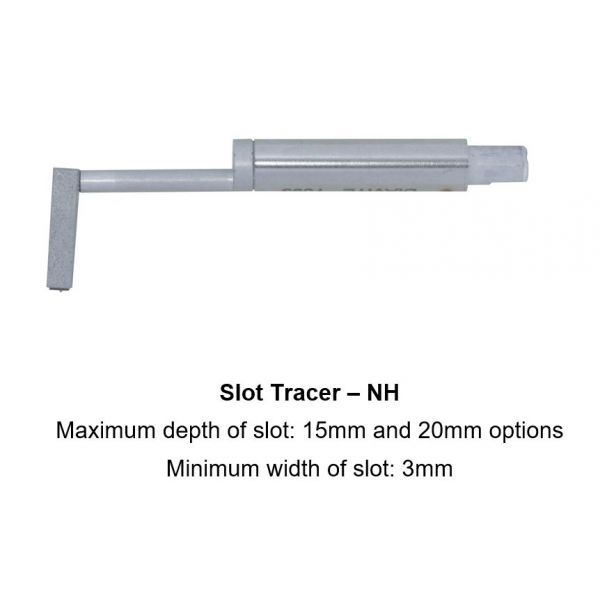

Diavite NH-15/00/90/5 Tracer for measuring slots up to 15mm deep
- maximum depths of grooves: 15 mm (NH-20 for max depth 20 mm)
- groove width min: 13 mm
- radius of the tip: standard 5 μm / 90 °
- radius of skid: r = 25 mm
- do not use with the advance device down
- the use of a stand for the advance device is strongly advised
| Model | SH Tracer Standard Stylus |
|---|---|
| Detector Conical taper angle | 60º |
| Stylus tip radius | 2µm Diamond |
| Additional Details |
Skid=Yes Measuring Depth=27mm Minimum Diameter=8mm |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
