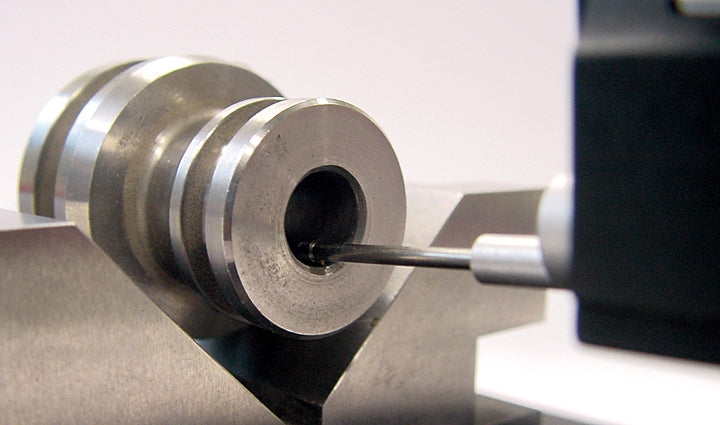

Diavite BH-00/00/90/5 Small Bore Tracer (Maximum Depth 20mm Minimum Bore Diameter 2.5mm

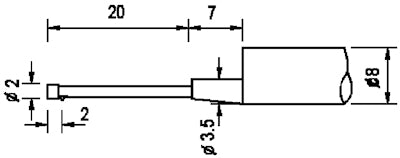

- probe for drilling from Ø 2.5 mm
- maximum depth: 20 mm
- diamond offset ~ soleplate: 2 mm
- probe end distance ~ diamond tip: 2.5 mm
- radius of the tip: standard 5 μm
- radius of skid: r = 10 mm
- usable in all positions
- the use of a stand for the advance device is strongly advised
| Model | BH Small Bore Tracer |
|---|---|
| Detector Conical taper angle | 90º |
| Stylus tip radius | 5µm |
| Additional Details | Skid=Yes| Measuring Depth=20mm| Minimum Diameter=2.5mm| |
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
