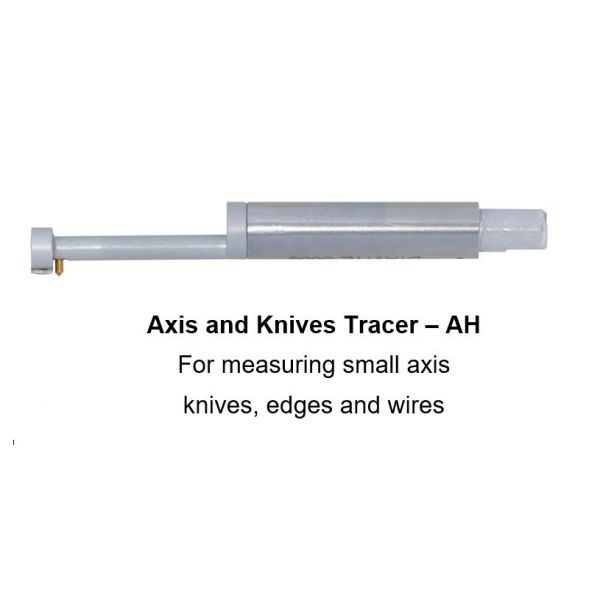

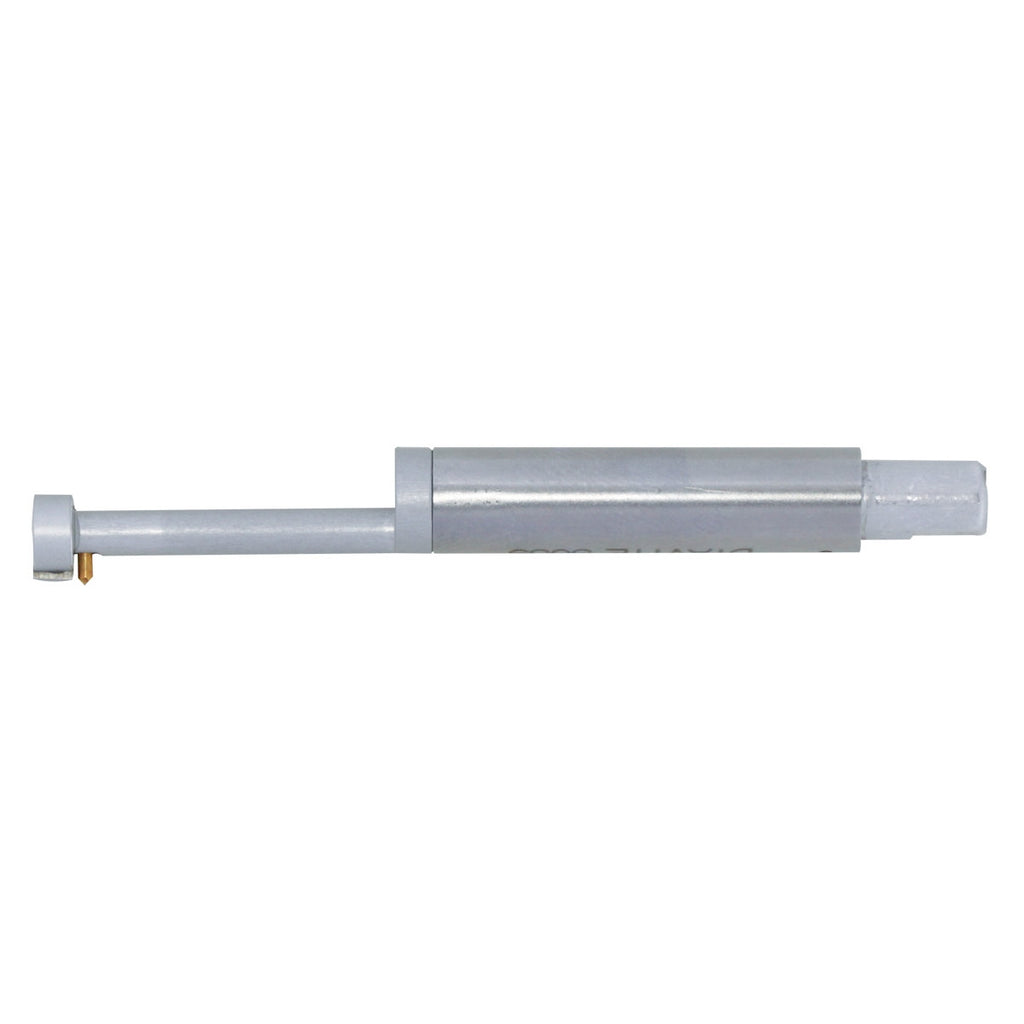

Diavite AH-00/00/90/2 Axis and Knives Tracer to measure small axis, knives, edges and wires

Diavite SKU: AH-00/00/90/2
Price: €1,563.00 Excluding VAT


PDF Brochure

  • knife-shaped tracer, width 0.6 mm, for small shafts and blades, to measure the cutting edge of a cutting tool, thin shafts, steel wires and edges
  • radius of the tip: standard 5 μm
  • radius of the shoe: r = 25 mm
  • do not use with the advance device down
  • the use of a stand for the advance device is strongly advised
  • Model AH Tracer AH Axis and Cutting Edge Tracer with Diamond 2µm radius
    Detector Conical taper angle 60º
    Stylus tip radius 2µm Diamond
    Additional Details Skid=Yes|

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
