Dial Test Indicator, Vertical Type 0.8mm, 0.01mm, 8mm Stem 513-454-10E

Mitutoyo SKU: 513-454-10E
List price: €132.00 Offer price: €102.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

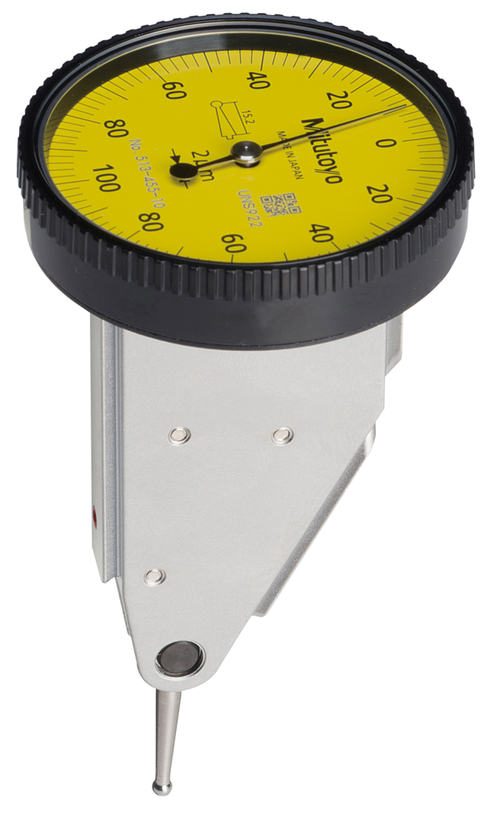

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

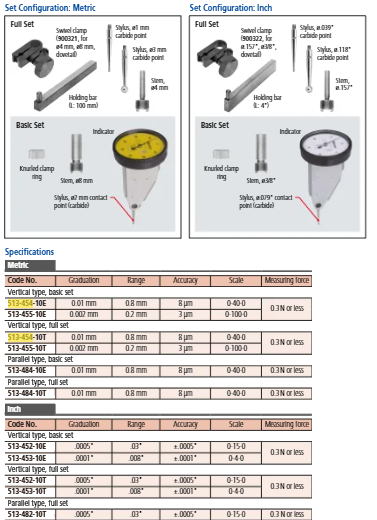

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Type:
Basic set
Delivered:
In a box with stem ø8 mm, stylus ø2 mm
Range:
0.8 mm
Dial reading:
0-40-0
Graduation:
0.01 mm
MPE any 10 scale divisions:
5 µm
MPE any 1/2
revolution:
6 µm
MPE measuring range:
8 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Carbide stylus tip ø2 mm No.:
103006
Mass:
46 g
Contact point:
Thread M 1.7 x 0.35
