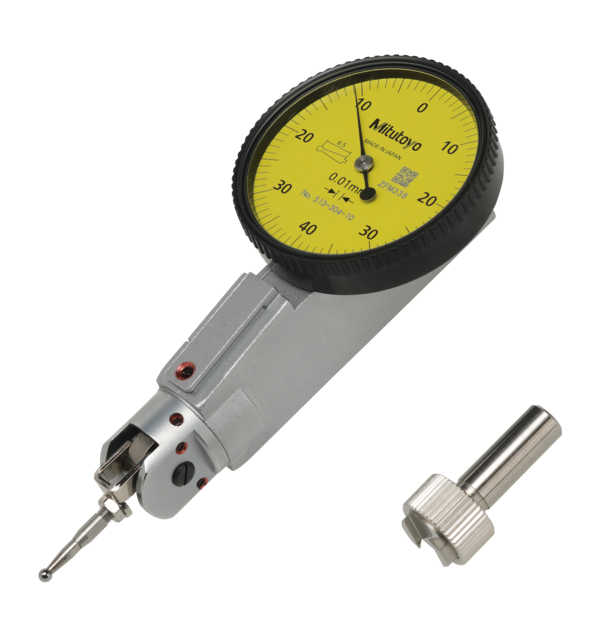

Dial Test Indicator, Universal Type 0.8mm, 0.01mm, Full Set, with Bracket 513-304-10T

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Universal Type 0.8mm, 0.01mm, Full Set, with Bracket 513-304-10T

Name: Dial Test Indicator, Universal Type 0.8mm, 0.01mm, Full Set, with Bracket 513-304-10T
Brand: Mitutoyo
SKU: 513-304-10T
Price: 398.0 EUR
Availability: InStock

MitutoyoSKU: 513-304-10T

Price:

€398.00 €530.12

Quantity:

Mitutoyo; Lever-Type Dial Indicator

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:

Drastically enhanced durability, sensitivity and visibility.
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
The stylus length is on the dial face to reorder a replacement
Multi-layer coatings on the crystal.

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	513-304-10T
Measuring Range	0.8mm
Resolution	0.001mm
Graduation	.01mm
Accuracy	.008mm
Unit of Measurement	Metric
Measuring Force	≤0.3N

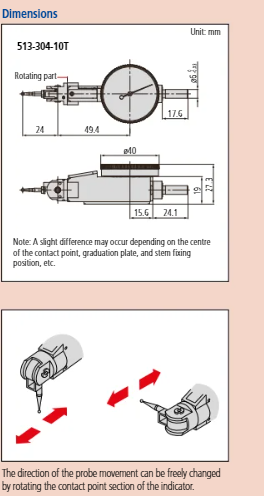

Length	24mm
Repeatability	.003mm
Dial Reading	0-40-0
Hysteresis	.003mm
Calibration Code	CAL14 B1

Digital/Analog:	Analog
Inch-Metric:	Metric
Type:	Full set

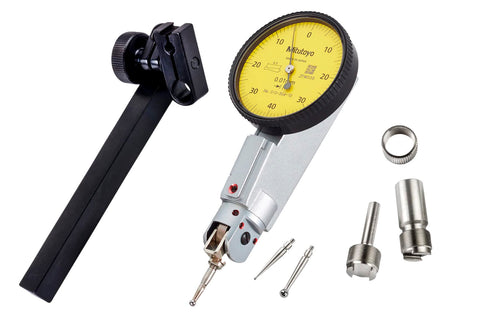

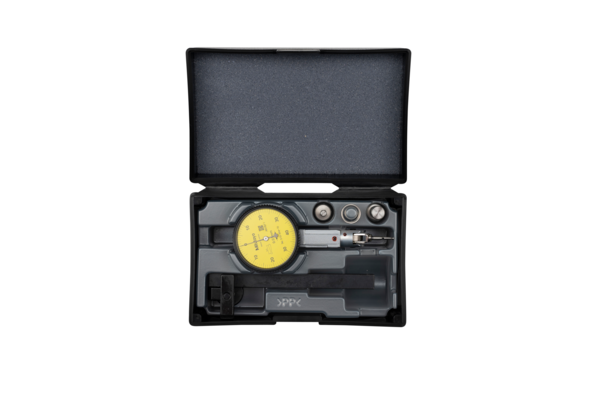

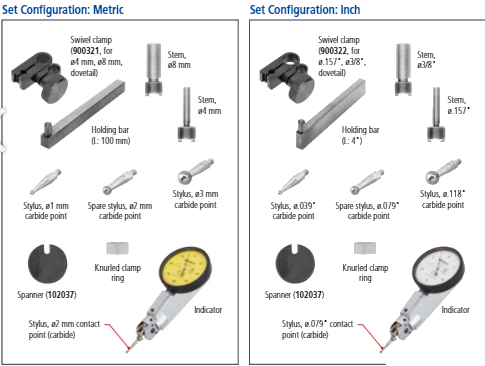

Delivered:	In a box with stem ø8/4 mm, stylus ø1/2 (2 pcs.)/3 mm, swivel clamp and holding bar, spanner
Range:	0.8 - 0.8 mm
Dial reading:	0-40-0
Graduation:	0.01 mm
MPE any 10 scale divisions:	5 µm
MPE any 1/2 revolution:	6 µm
MPE measuring range:	8 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Measuring force:	0,01-0,3 N
Carbide stylus tip ø2 mm No.:	102825
Mass:	80 g
Contact point:	Thread M 1.4 x 0.3
