Mitutoyo SKU: 513-302-10T
List price: €522.00 Offer price: €405.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

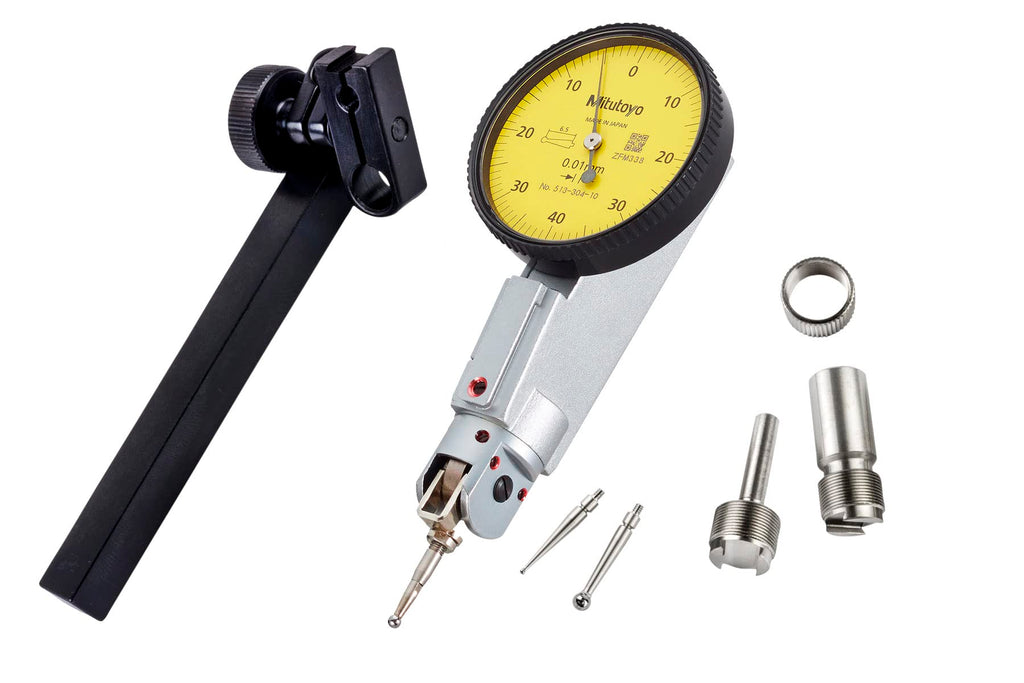

Mitutoyo; Lever-Type Dial Indicator

This is a Dial Test Indicator (Lever Type) which offers you the following benefits:
  • Drastically enhanced durability, sensitivity and visibility.
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • The stylus length is on the dial face to reorder a replacement
  • Multi-layer coatings on the crystal.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Type:
Full set
Delivered:

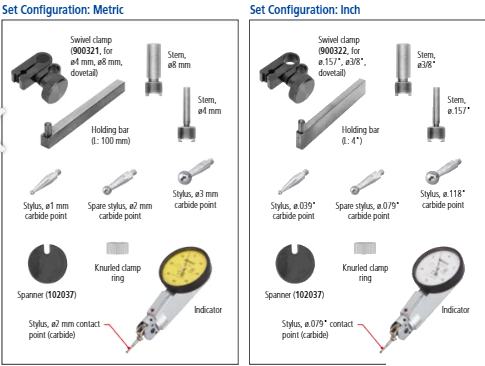

In a box with stem ø3/8" (9,52 mm)/0,157" (4 mm), stylus ø0,039"/0,079" (2 pcs,)/0,118", swivel clamp and holding bar, spanner
Range:
0,03 "
Dial reading:
0-15-0
Graduation:
0,0005"
H MPE (Hysteresis):
0,0003"
R MPE (Repeatability):
±0,0003"
MPE first one revolution:
±0,0005"
Measuring force:
0,01-0,3 N
Mass:
71 g
Contact point:
Thread M 1.4 x 0.3
