Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T
Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T
Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T
Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T
Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T
Roll over image to zoom in Click on image to zoom
Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10TDial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10TDial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10TDial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10TDial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T

Dial Test Indicator Set, Vertical Type 0.2mm, 0.002mm, 8mm Stem 513-455-10T

Mitutoyo SKU: 513-455-10T
List price: €221.00 Offer price: €171.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Allow 7-10 working days for the calibration
Add your Gauge ID, asset/serial number, company name, logo or QR code.

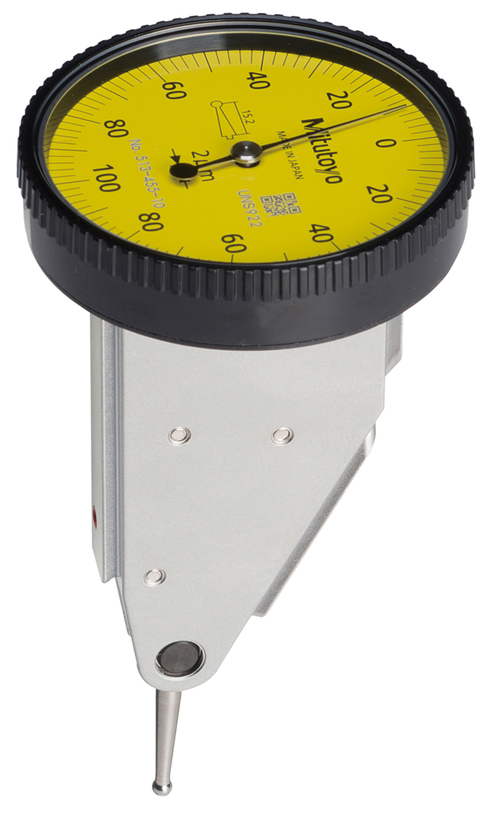

A versatile anti-magnetic type Mitutoyo lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a basic set of mounting accessories.

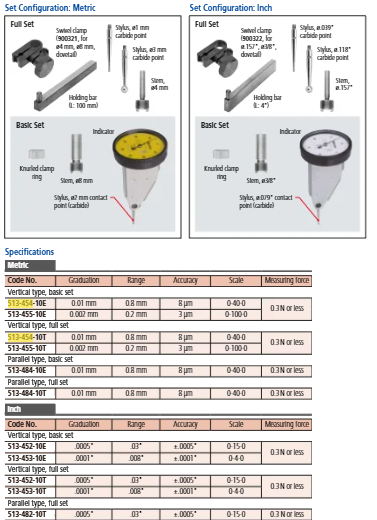

Specification
Digital/Analog:
Analog
Inch-Metric:
Metric
Type Full Set
Delivered:

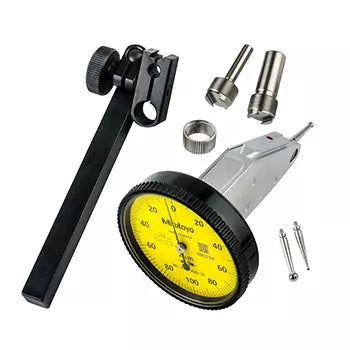

  • Full Set includes test indicator with 2mm diameter contact point, 1mm dia. carbide contact point, 3mm dia. carbide contact point, Dovetail with 4mm Stem, Swivel Clamp, and 100mm Holding Bar
Range:
0.2 mm
Dial reading:
0-100-0
Graduation:
0.002 mm
MPE any 10 scale divisions:
2 µm
MPE any 1/2
revolution:
3 µm
MPE measuring range:
3 µm
H MPE
(Hysteresis):
2 µm
R MPE
(Repeatability):
1 µm
Carbide stylus tip ø2 mm No.:
103011
Mass:
46 g
Contact point:
Thread M 1.7 x 0.35

Technical information will be added shortly.

Application information will be added shortly.

Product videos and documents will be added shortly.
