Dial Test Indicator, Pocket Type 0.04", 0.001", D=9.52mm Stem 513-518-10E

Mitutoyo SKU: 513-518-10E
List price: €134.00 Offer price: €104.00 Excluding VAT
Why Choose Inspection Equipment
Fast Dispatch Orders dispatched quickly from our extensive warehouse stock.
46 Years of Experience Established in 1980 with decades of metrology expertise.
Technical Support Experienced specialists available before and after your purchase.
25,000+ Products One of Ireland’s largest ranges of precision measurement equipment.
Expert Advice We will help you select the right instrument for your application.
Need help choosing the right product?

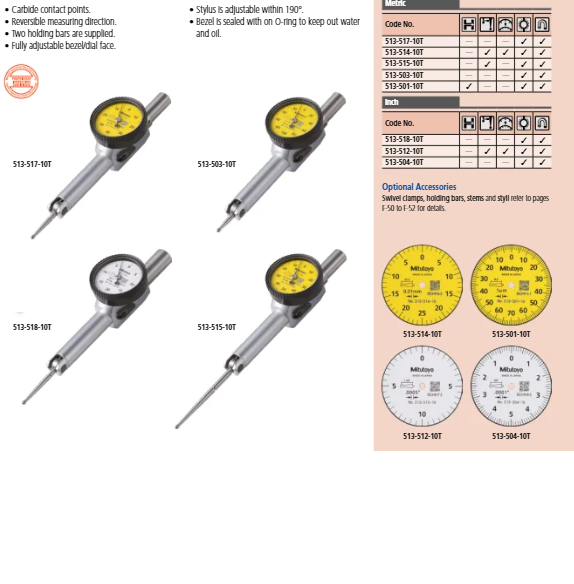

This is a small type Dial Test Indicator (Lever Type) which offers you the following benefits:
  • Reversible measuring direction (clutch type)
  • Jeweled bearings assure higher sensitivity and accuracy.
Specification
Digital/Analog:
Analog
Inch-Metric:
Inch
Delivered:

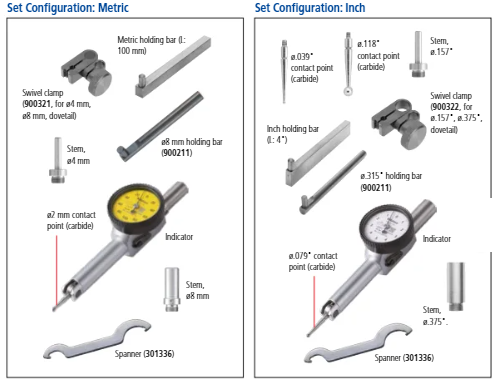

In a box with stem ø9,52 mm, stylus ø0,079"
Range:
0,04 "
Dial reading:
0-20-0
Graduation:
0,001"
H MPE (Hysteresis):
0,0002"
R MPE (Repeatability):
±0,0004"
MPE first one revolution:
±0.001"
Type:
Basic set
Measuring force:
0,01-0,3 N
Carbide stylus tip ø2 mm No.:
103007
Mass:
50 g
