Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm, with Bracket 513-402-10T

Roll over image to zoom in Click on image to zoom

Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm, with Bracket 513-402-10T

Name: Dial Test Indicator, Horizontal Type 0.03", 0.0005", 4/9.52mm, with Bracket 513-402-10T
Brand: Mitutoyo
SKU: 513-402-10T
Price: 134.14 EUR
Availability: InStock

MitutoyoSKU: 513-402-10T

Price:

€134.14 €183.75

Quantity:

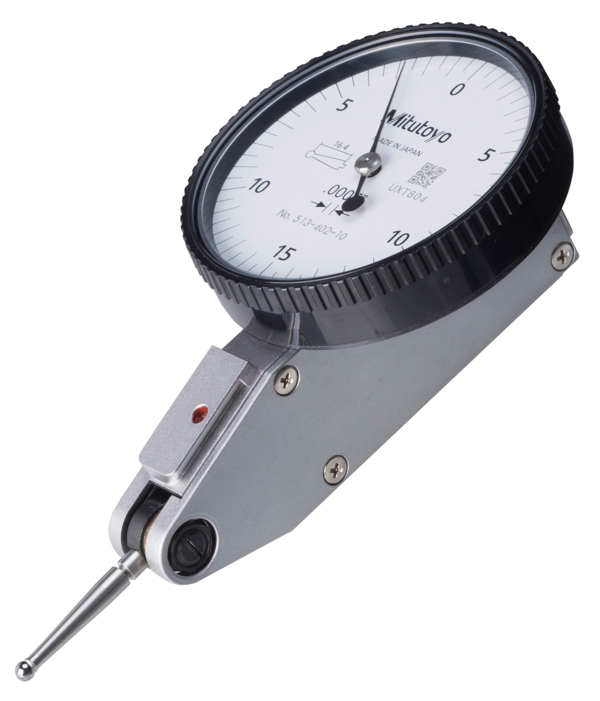

A Mitutoyo versatile anti-magnetic type lever indicator (or dial test indicator, DTI) suited to alignment operations on machine tools and similar applications. This indicator automatically adapts to the required measuring direction on contact, and the jewelled movement provides lowest friction and stiction for smooth and precise operation. Supplied with a comprehensive set of mounting accessories and interchangeable styli that enable immediate use in almost any situation.

Product Information
Part Number	513-402-10T
Measuring Range	0.03"
Resolution	["0.0005\""]
Graduation	.0005"
Accuracy	.0005"
Unit of Measurement	Inch
Measuring Force	≤0.3N
Type	Horizontal
Length	.78"
Repeatability	±.0002"

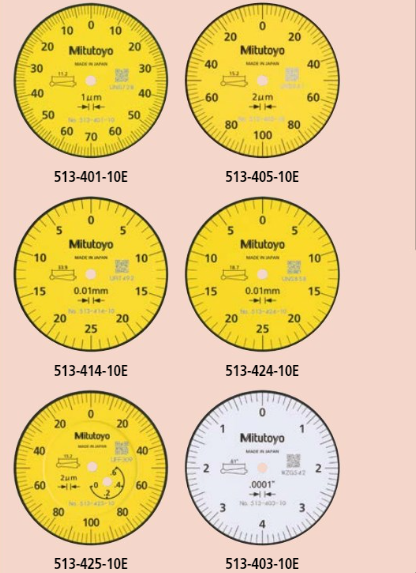

Dial Reading	0-15-0
Hysteresis	.0002"
Stem	.157"
Calibration Code	CAL14 B1
Stem	.157"

Digital/Analog:	Analog
Inch-Metric:	Inch

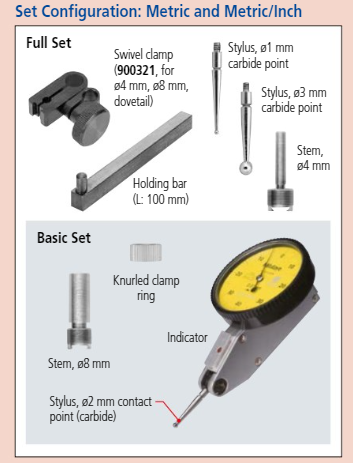

Delivered:	In a box with stem ø3/8" (9,52 mm) / 0,157" (4 mm), stylus ø0,039"/0,079"/0,118", swivel clamp / holding bar
Range:	0,03 "
Dial reading:	0-15-0
Graduation:	0,0005"
H MPE (Hysteresis):	0,0002"
R MPE (Repeatability):	±0,0002"
MPE first one revolution:	±0,0005"
Type:	Full set
Measuring force:	0,01-0,3 N
Mass:	40 g
Contact point:	Thread M 1.7 x 0.35
