Dial Snap Meter 50-75mm 523-123

Mitutoyo SKU: 523-123
List price: €899.00 Offer price: €697.00 Excluding VAT

Optional Services

Supplied with a UKAS calibration certificate. Gauge is in stock; calibration adds 7–10 working days.
The setting standard is calibrated separately from the micrometer.
Add your Gauge ID, asset/serial number, company name, logo or QR code.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Gauge Block Set, Metric, JCSS Cert., ISO
Part number: 516-106-10  → View product
Optical Parallels Set, Metric 0-25mm 157-903
Part number: 157-903  → View product
Mitutoyo 04AZA124 Workpiece Stopper Indicating Micrometer 23mm
Part number: 04AZA124  → View product
Mitutoyo 04AZA125 Workpiece Stopper Indicating Micrometer 20.5mm
Part number: 04AZA125  → View product
Mitutoyo 04AZA126 Workpiece Stopper Indicating Micrometer 15mm
Part number: 04AZA126  → View product

Mitutoyo; Dial Snap Meter

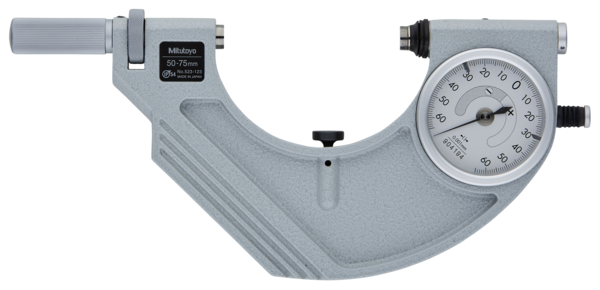

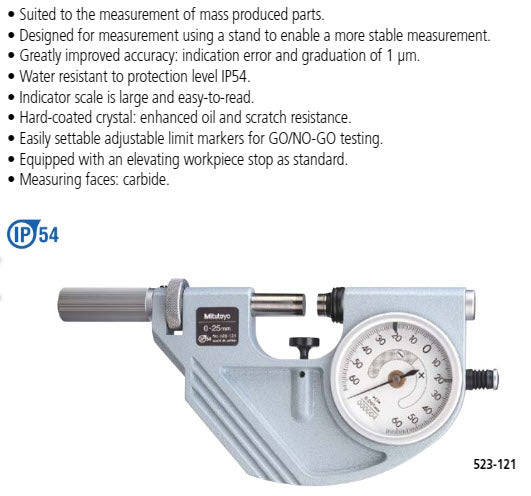

A Mitutoyo rapid-retraction-anvil snap meter equipped with a high resolution dial indicator.

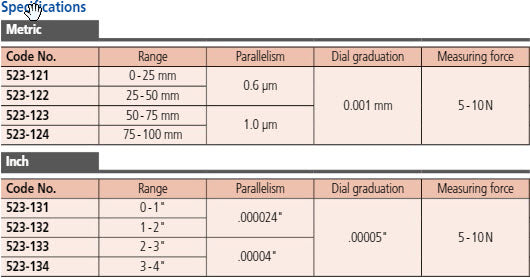

Specification
Digital/Analog:
Analog
Delivered:

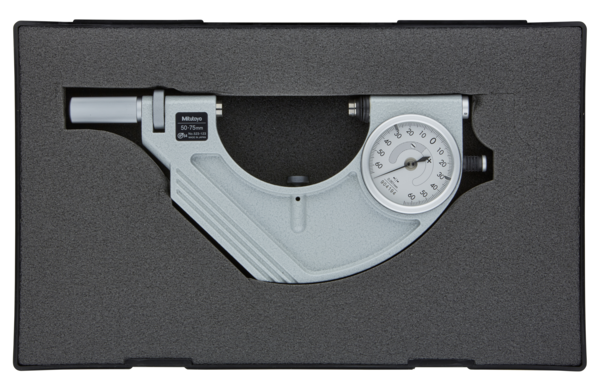

Including box, workpiece rest, setting standard
Inch-Metric:
Metric
Range:
50 - 75 mm
Graduation:
0.001 mm

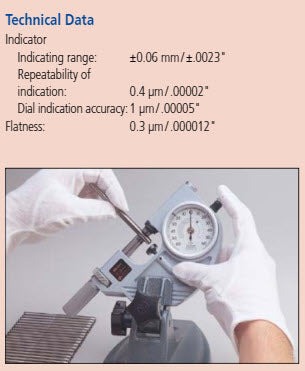

Indicating range:
±0.06 mm
Anvil retracting stroke:
2 mm
Accuracy dial comparator:
1 μm
Repeatability:
0.4 µm
Flatness:
0,3 μm
Parallelism:
1 μm
Measuring face:
Carbide-tipped, micro-lap finish ø10.8 mm
Measuring spindle:
ø10,8 mm
Measuring force:
5 - 10 N
Delivered:
Including box, workpiece rest
Mass:
950 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Dial Snap Meter 50-75mm 523-123 Click to open the PDF document
