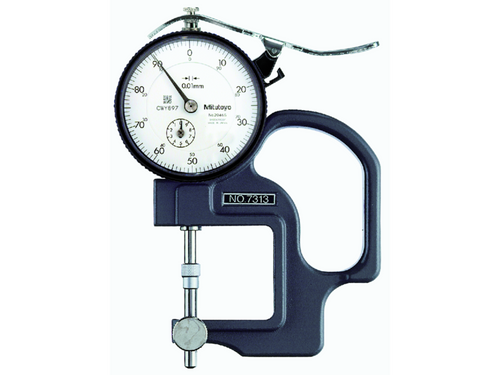

Dial Indicator Thickness Gauge 0-10mm, 0,01mm, Lens Thickness, Ceramic Contact Elements, 7313A
This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper etc. with flat contact points, resp. lens thickness or groove depth.

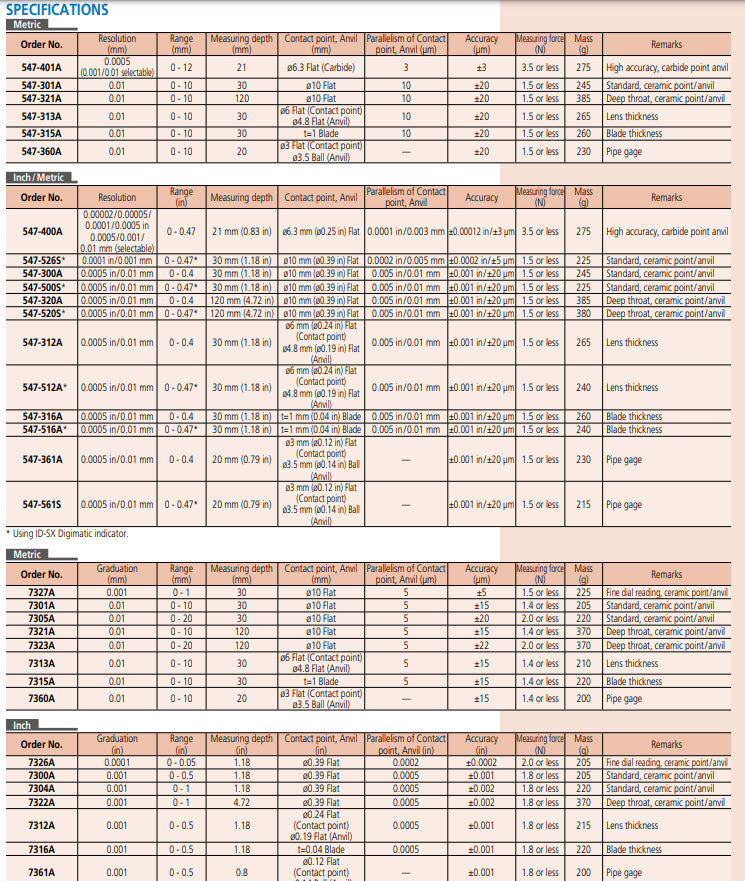

Specification
- Inch-Metric: Metric
- Functions: Adjustable anvil
- Range: 0 - 10 mm
- Graduation: 0.01 mm
- Accuracy: ±0,015 mm
- Parallelism: 5 µm
- Indicator No.: 2,046AB
- Max. measuring depth: 30 mm
- Mass: 215 g
- Contact point: Thread M 2.5 x 0.45 mm
- Type: Adjustable Anvil
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
