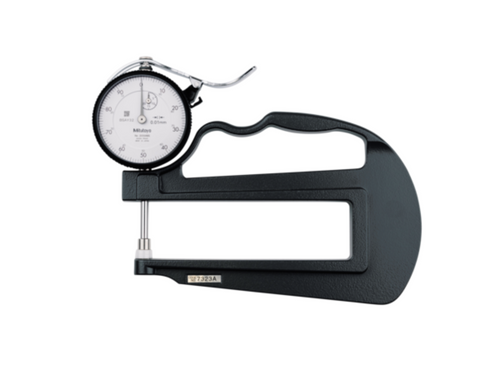

Dial Indicator Thickness Gauge 0-20mm, 0,01mm, 120mm Throat, Ceramic Contact Elements, 7323A
This Dial Indicator Thickness Gauge enables you to measure tube wall thickness, film/paper, etc. with flat contact points, resp. lens thickness or groove depth.

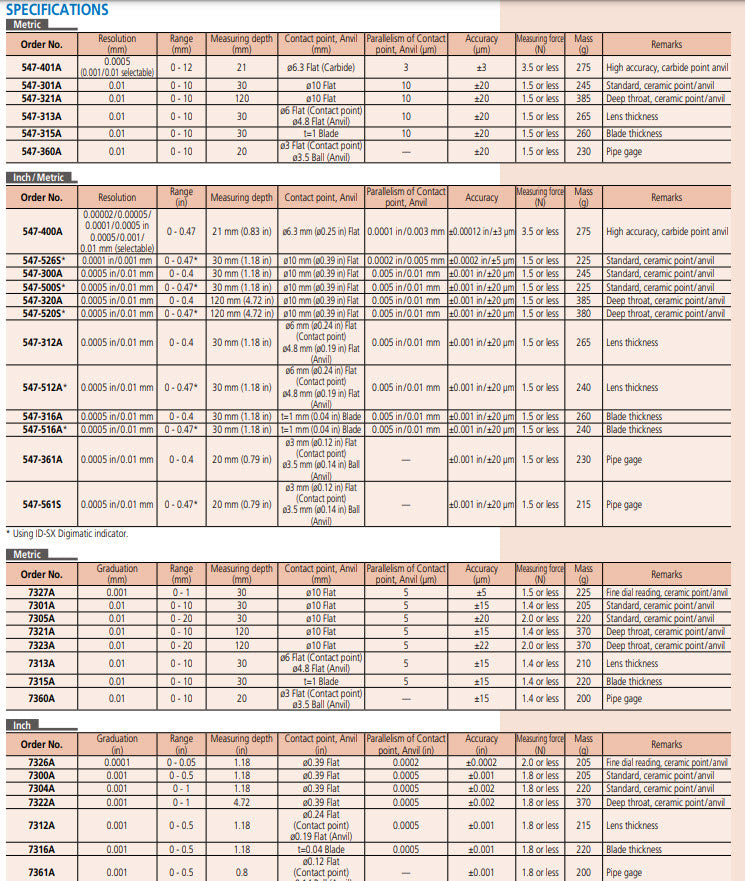

Specification
- Inch-Metric: Metric
- Functions: Ceramic disc contact points
- Range: 0 - 20 mm
- Graduation: 0.01 mm
- Accuracy: ±0,022 mm
- Parallelism: 5 µm
- Indicator No.: 2,050AB
- Max. measuring depth: 120 mm
- Mass: 355 g
- Contact point: Thread M 2.5 x 0.45 mm
- Type: Large jaw capacity and ceramic disc contact points
All images are for representation only.
Technical information will be added shortly.
Application information will be added shortly.
Product videos and documents will be added shortly.
