Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900SB-10

Roll over image to zoom in Click on image to zoom

Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900SB-10

Name: Dial Gauge, Lug Back, ISO Type One Revolution, Jewelled Bearing, Shockproof, 0,08mm, 0,001mm 2900SB-10
Brand: Mitutoyo
SKU: 2900SB-10
Price: 85.0 EUR
Availability: InStock

MitutoyoSKU: 2900SB-10

Price:

€85.00 €133.00

Quantity:

Graduation 0,001 mm

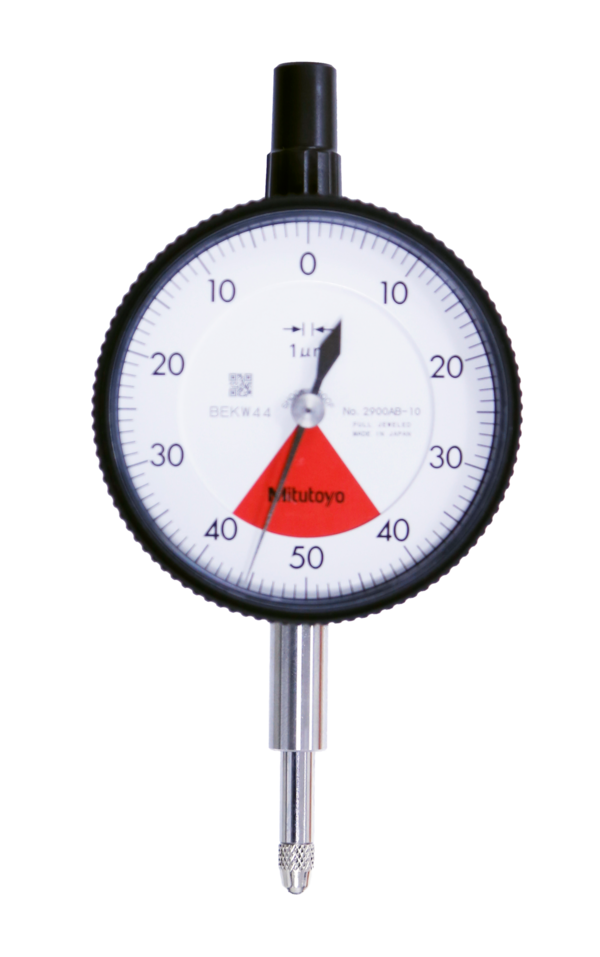

This is a one revolution dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side.
No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
It eliminates the possibility of reading errors due to miscounting multiple revolutions.

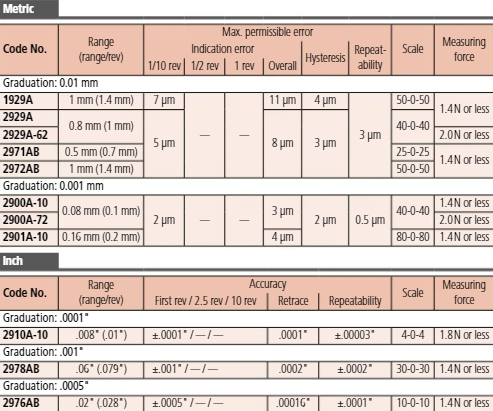

Product Information
Part Number	2900SB-10
Measuring Range	0.08mm
Graduation	.001mm
Accuracy	.003mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	.0005mm
Dial Reading	40-0-40
Dial Face Size Ø	57mm
Hysteresis	.002mm
Stem	8mm
Stem Diameter	8mm
Back	Flat back
Range Per Rev	.1mm
Scale	40-0-40
Calibration Code	CAL14 B1
Stem	8mm

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	0.08 mm
Plunger Stroke:	4 mm
Range per rev.:	0.1 mm
Dial reading:	40-0-40
Graduation:	0.001 mm
Measuring force:	0.4-1.4 N
MPE any 1/10 revolution:	2 µm
MPE measuring range:	3 µm
H MPE (Hysteresis):	2 µm
R MPE (Repeatability):	1 µm
Mass:	149 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
One revolution:	Yes
Shockproof:	Yes
